Euroboor Eco.30s+ 30mm Industrial Magnetic Drill.

€599.00 (Inc. VAT)
€486.99 (Ex. VAT)
Current Stock:

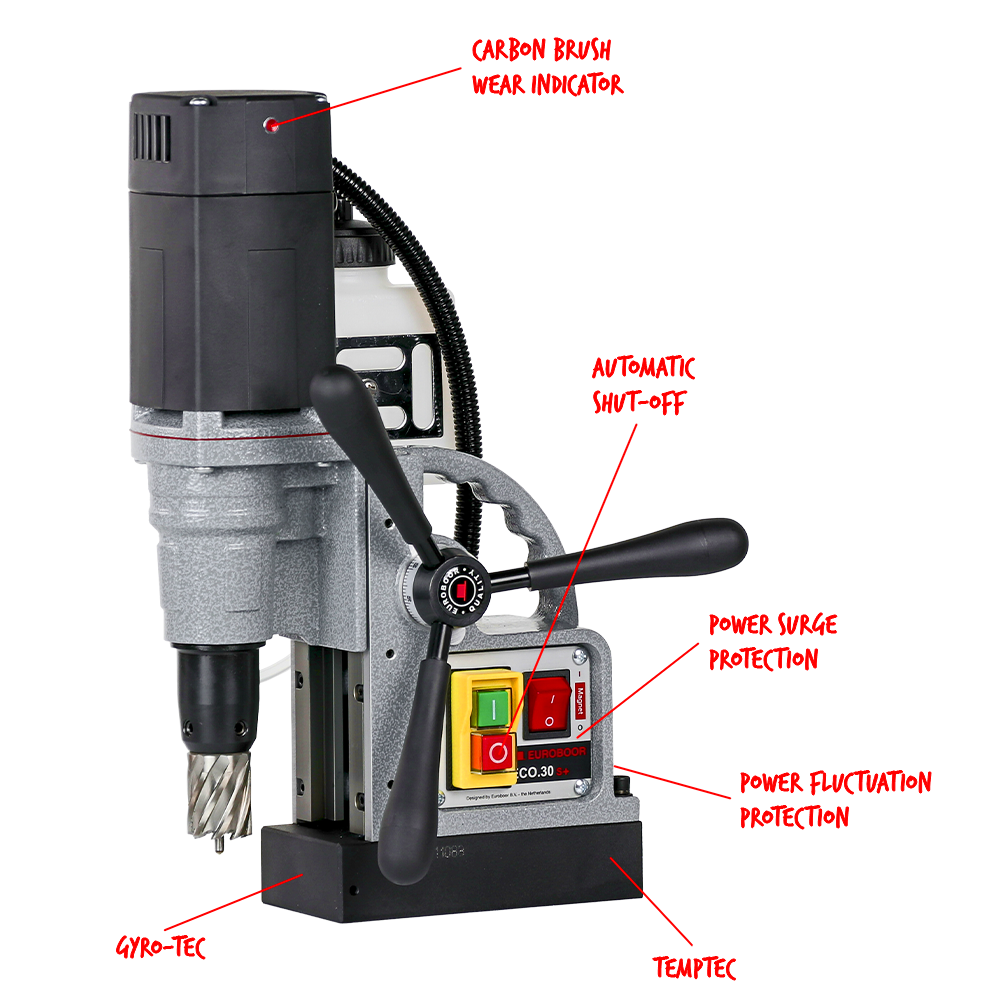

Key Characteristics

  • One-speed oil lubricated gearbox
  • Gyro-Tec
  • Power surge protection
  • Power fluctuation protection
  • Carbon brush wear indicator
  • Automatic shut-off

Benefits
  • Lightest 30 mm magnetic drilling machine
  • Direct spindle drive and integrated tool cooling and lubrication.
  • High-precision height adjustment
  • Integrated slide for: High accuracy - Enlarged lifecycle - Minimal vibration
  • Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
  • Reversible handles which enable you to change the operation side of the feed handles in confined spaces
  • Reduced risk of damaging machine, tools and workpiece and hurting operator
  • Suitable for use in areas and workplaces where power supply is of less quality
  • Reduced risk of armature damage
  • Reduced risk of control unit(s) damage
  • Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement



Specifications

Connection
minimum diameter annular cutters (millimeter) 12
maximum diameter annular cutters (millimeter) 30
minimum diameter countersinking (millimeter) 10
maximum diameter countersinking (millimeter) 35
minimum diameter twist drills (millimeter) 1
maximum diameter twist drills (millimeter) 13
connection 1 model inside
connection 1 size (millimeter) 19.05
connection 1 type Weldon
Dimensions
stroke (millimeter) 90
magnet length (millimeter) 160
magnet width (millimeter) 80
magnet height (millimeter) 37
minimum height (millimeter) 293
maximum height (millimeter) 383
length (millimeter) 275
width (millimeter) 190
height (millimeter) 383
Properties
rotation direction clockwise
magnetic force (kilogram) 1200
electric rotation speed adjustment no
nett weight (kilogram) 8.5
system of measurement mm (metric)
application drilling, countersinking
Performance
no-load maximum rotation speed gear 1 (rotations per minute) 775
load maximum rotation speed gear 1 (rotations per minute) 400
rotation speed gear 1 (rotations per minute) 775
Supply
motor power (Watt) 900
total power (Watt) 950
power supply frequency (Hertz) 50 - 60
power supply current AC
power supply connection EU plug according CEE 7/7
power supply source mains supply
power supply type electric
power supply tension (Volt) 220 - 240
