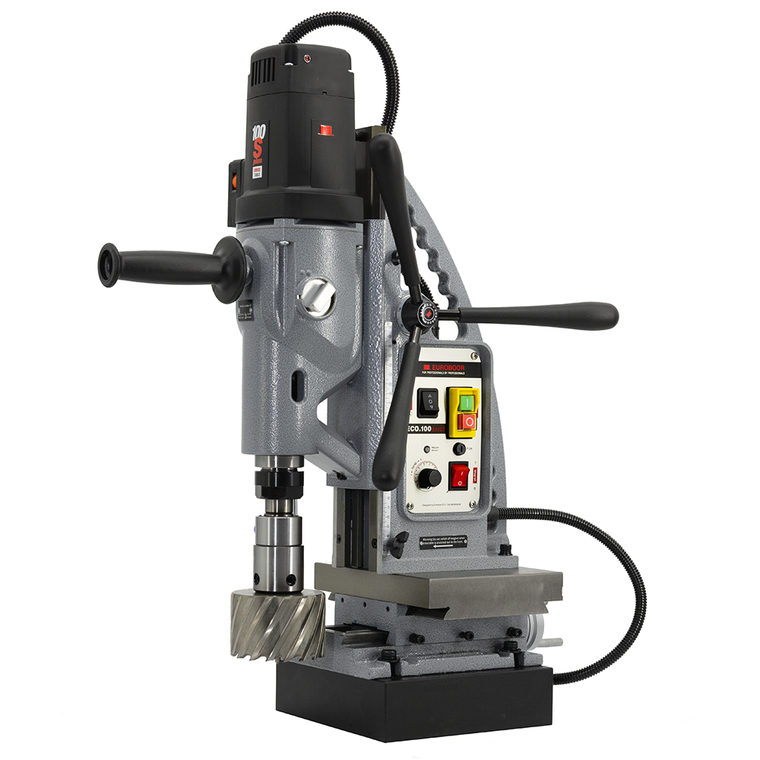

ECO.100S+/CT2 Magnetic Drilling Machine, 100 mm, 110 V

The Euroboor ECO.100S+/CT2 magnetic core drilling machine cuts holes up to ø 100 mm and is particularly suited for tapping and milling tasks that require high precision. The Cross Table provides exceptional control, allowing you to position the machine accurately across a range of 110 mm (x-axis) and 120 mm (y-axis) after the magnet is fixed to the surface. The spindle, secured by a threaded retaining ring, ensures the strongest coupling to the motor, minimizing play during demanding operations and enhancing accuracy. With its dynamic positioning feature, you can efficiently create slots and handle more complex workpieces without switching tools. The powerful 1,900 W motor, paired with an oil-lubricated four-speed gearbox and advanced electronics, ensures safe, reliable performance across various tasks.

Key Characteristics

• Cross Table base to give dynamic positioning during drilling procedure over a range of 110 mm (x-axis) and 120 mm (y-axis)
• Milling feature to create slots and work on complex workpieces
• Switch to Tapping to create perfectly centered threads, while machine stays fixed on workpiece
• Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
• Advanced safety features to reduce the risks of damaging the machine, tools, workpiece, armature, control unit(s) or hurting the operator
• Morse Taper 3 spindle with integrated tool cooling and lubrication
• Suitable for use in areas and workplaces where power supply is of less quality
• Timely service notification to avoid additional costs of unexpected downtime or unnecessary part replacement

Properties & Safety Features

Automatic shut off

Carbon brush wear indicator

Gyro-Tec

Overload protection

Power fluctuation protection

2 way magnet (TempTec)

Overheat protection

Magnet LED indicator

Power surge protection

Tapping

Milling

Adjustable speed

Oil lubricated gearbox

R/L rotation

Torque control

Smart Restart

Cross table

Technical Specifications

Package Contents

• 1x metal case
• 1x magnetic drilling machine ECO.100S+/CT
• 3x (Capstan Hub) handles
• 1x extension spindle MT3 (IBK.MC3-L121)
• 1x spindle holder MT3 - Weldon 31.75 mm (1 1/4") including cooling/lubrication ring (IMC.30/32-CT2)
• 1x adapter Weldon 31.75 to 19.05 mm (1 1/4" to 3/4") (IBK.3219)
• 1x drift key
• 1x side handle
• 1x lubrication/cooling system
• 1x Allen key 2.5 mm (3/32")
• 1x Allen key 3 mm (1/8")
• 1x Allen key 4 mm (5/32")
• 1x Allen key 5 mm (13/64")
• 1x safety chain
• 1x ear protection
• 1x safety goggles
• 1x safety gloves
• 1x user manual
