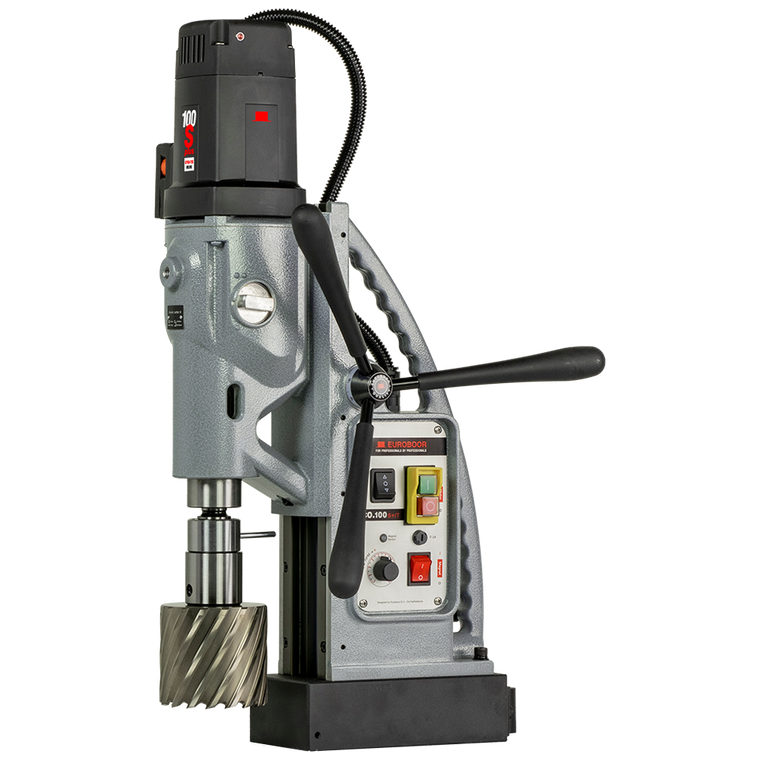

Euroboor ECO.100S+/T Magnetic drilling machine, 100 mm 110v
€1,595.00
(Inc. VAT)
€1,296.75
(Ex. VAT)
Magnetic Drilling Machine, 100 mm, 110 V
Annular Cutters Max Dia. 100 mm | Power Supply 110 V / 50–60 Hz | Bidirectional Rotation
The Euroboor ECO.100S+/T magnetic core drilling machine cuts holes up to ø 100 mm and is particularly suitable for tapping. This magnetic core drilling machine has an extremely powerful 1,900 W motor with an oil-lubricated four-speed gearbox and innovative electronics which offer enhanced safety—significantly reducing the risk of damage to the machine, tool, and workpiece while protecting the operator from excessive vibrations or sudden displacement. Lifespan is extended considerably to help avoid high maintenance costs.
Key Characteristics
- Four-speed oil-lubricated gearbox
- Particularly suitable for tapping
- Right/left (bidirectional) rotation
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- Electronic speed adjustment
- Torque control on motor housing
- Strong dual-coil CNC-machined 2-way magnet (uses less energy, generates less heat, lasts longer)
- Reduced risk of damaging machine, tools, workpiece, or injuring operator
- Suitable for workplaces where the power supply is of lower quality
- Reduced risk of armature and control unit(s) damage
- Timely service notification to avoid unexpected downtime or unnecessary part replacement
Safety Features & Properties
Automatic Shut Off
Carbon Brush Indicator
Gyro-Tec
Overload Protection
Power Fluctuation Protection
2-Way Magnet (TempTec)
Overheat Protection
Magnet LED Indicator
Power Surge Protection
Tapping
Adjustable Speed
Oil Lubricated Gearbox
R/L Rotation
Torque Control
Smart RestartTechnical Specifications
| Connection | |
|---|---|
| Minimum diameter threading | M3 |
| Maximum diameter threading | M30 |
| Minimum diameter annular cutters | 12 mm |
| Maximum diameter annular cutters | 100 mm |
| Minimum diameter countersinking | 10 mm |
| Maximum diameter countersinking | 105 mm |
| Minimum diameter twist drills | 1 mm |
| Maximum diameter twist drills | 32 mm |
| Connection 1 model | Inside |
| Connection 1 size | 31.75 mm |
| Connection 1 type | Weldon |
| Connection 2 Morse taper / drill chuck class | MT3 |
| Connection 2 model | Outside |
| Connection 2 type | Morse taper |
| Dimensions | |
| Stroke | 260 mm |
| Magnet length | 220 mm |
| Magnet width | 110 mm |
| Magnet height | 64 mm |
| Minimum height | 510 mm |
| Maximum height | 710 mm |
| Length | 365 mm |
| Width | 310 mm |
| Height | 715 mm |
| Properties & Weight | |
| Rotation direction | Bidirectional |
| Gearbox lubrication type | Oil |
| Magnetic force | 3,000 kg |
| Electronic rotation speed adjustment | Yes |
| Net weight | 27.8 kg |
| System of measurement | Metric (mm) |
| Applications | Drilling, Countersinking, Tapping |
| Performance (Rotation Speed) | |
| Gear 1 (No-load) | 42 – 110 RPM |
| Gear 1 (Loaded) | 85 RPM |
| Gear 2 (No-load) | 65 – 190 RPM |
| Gear 2 (Loaded) | 40 – 152 RPM |
| Gear 3 (No-load) | 140 – 400 RPM |
| Gear 3 (Loaded) | 100 – 270 RPM |
| Gear 4 (No-load) | 220 – 620 RPM |
| Gear 4 (Loaded) | 170 – 480 RPM |
| Power Supply | |
| Motor power | 1,900 W |
| Total power | 2,050 W |
| Supply frequency | 50 – 60 Hz |
| Supply voltage | 110 V |
| Supply current / type | AC / Electric |
| Power supply source | Mains supply |
| Plug type | CEE 7/7 |
-
-
