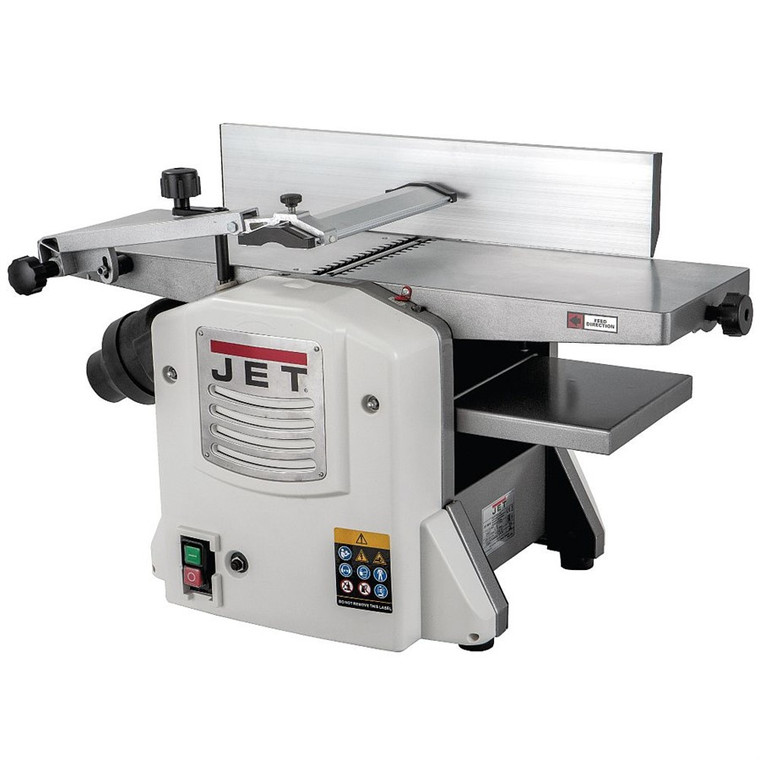

Jet JPT-8B Planer Thicknesser

Overview

The size and compactness make this machine ideal for a wide range of projects in a woodshop or a construction site. The JET JPT-8B has a sturdy design and stable construction, precise thicknessing tables and a long rear table. Fitted with safety features including dust extraction, covers and a motor fuse.

Features

• Portable planer thicknesser for a woodshop or construction site
• Planing width of 200 mm
• Powerful 1,5 kW motor
• Spindle speed of 9000 rpm
• Precise thicknessing tables and a prolonged rear table
• Simple change from thicknessing to planing

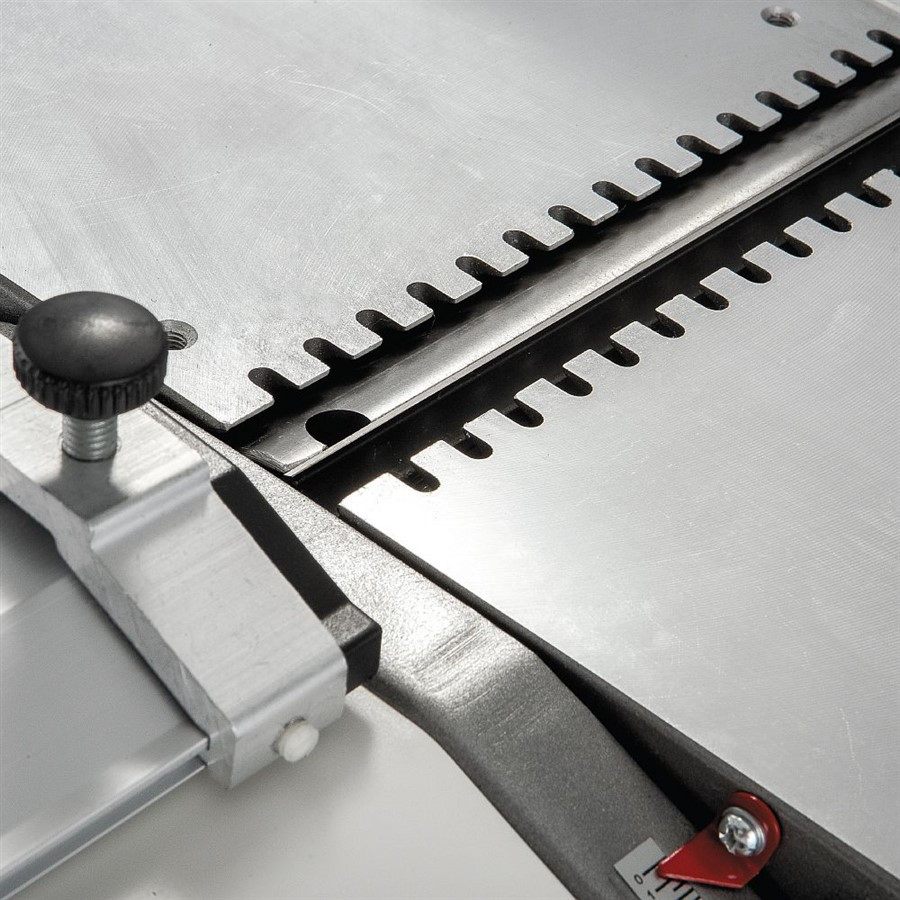

• Support fence tilts from 90° to 45°
• Ideal for construction work.

Specifications

• Power Input (230 V): 1,5 kW
• Speed: 9000 rpm
• Cutter Block Dia: 45 mm
• Feed Speed: 6 m/min
• Knives in Cutter Block: 2 pcs
• Max. Material Removal when Planing: 3 mm
• Max. Material Removal when Thicknessing: 2 mm
• Max. Width of Planing: 200 mm

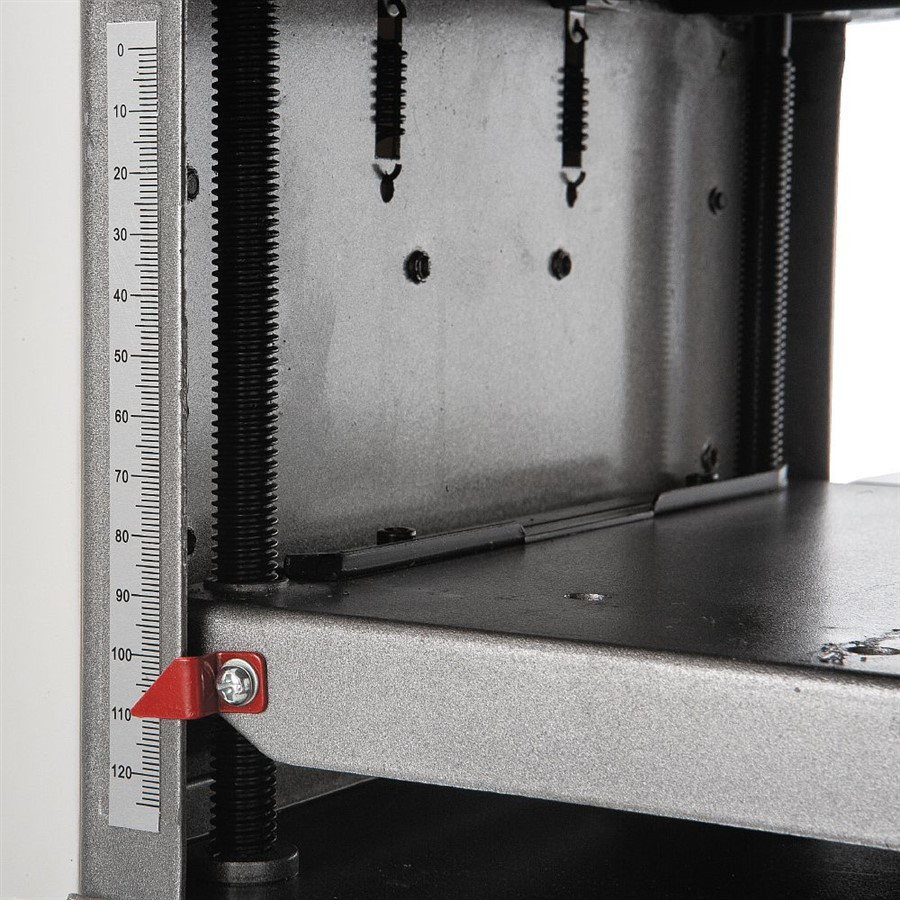

• Max. Thicknessing Height: 5–120 mm
• Table Length incl. Extensions: 445 mm
• Dust Extraction: 57 a 100 mm
• Length x Width x Height: 780 x 440 x 550 mm
• Weight: 28 kg
