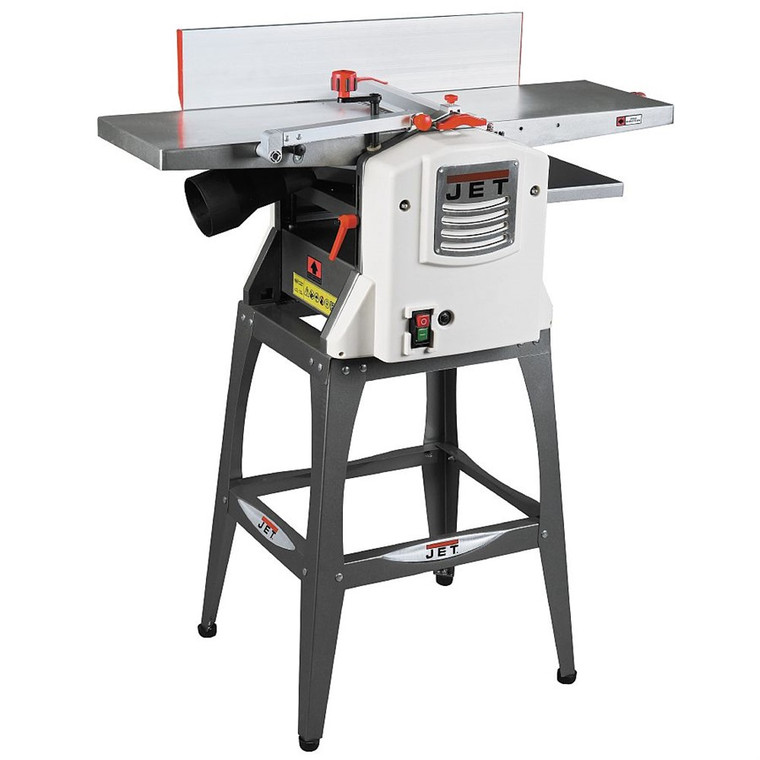

Jet JPT-10B Planer Thicknesser with a Stand

Overview

The overall size and build allow for versatile use and easy transport. The JET JPT-10B features robust and stable construction, accurate planing tables and a long thicknessing table. Thanks to the extraction cover, other safety covers and a safety-fuse on the engine, it is ideal for a woodshop as well as for a construction site. Another good feature of the machine is a stable stand with rubber feet. Feed rollers have plain bearings that guarantee low noise level.

Features

• Planing width of 254 mm
• Powerful 1,5kW engine
• Precise, long surface tables
• Easy switch between planing and thicknessing
• Aluminium fence tilts 90° - 45°
• Suitable for transport on jobs.

Specifications

• Power Input 230V: 1.5 kW
• Cutterblock Speed: 9000 rpm
• Cutterblock Diameter: 45 mm
• Knives: 2pcs HSS Resharpenable
• Feed Speed: 6 m / min.
• Max. Removal Planing: 3 mm
• Max. Removal Thicknessing: 2 mm
• Max. Surfacing Width: 254 mm
• Workpiece Thickness: 5-120 mm
• Table Length: 498 mm
• Dust Extraction Outlet : 57 & 100 mm
• Dimensions (LxWxH): 980 x 470 x 1120 mm
• Weight: 34 kg
