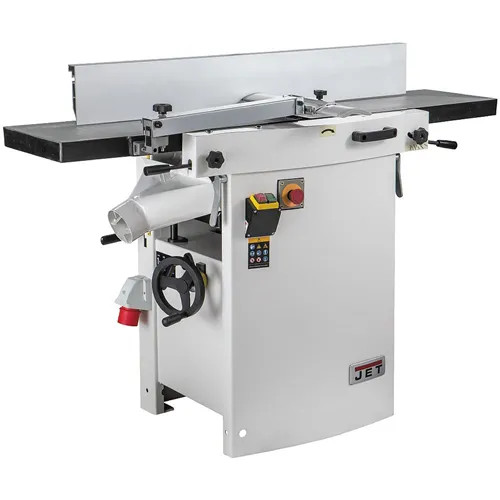

Jet JPT-310HH Helical Planer Thicknesser (230V) (JPT-310HH-M)

Jet JPT-310HH Helical Planer Thicknesser (230V)

×
×
Brand:
Price:
Contact us for pricing & availability
  • Product Description

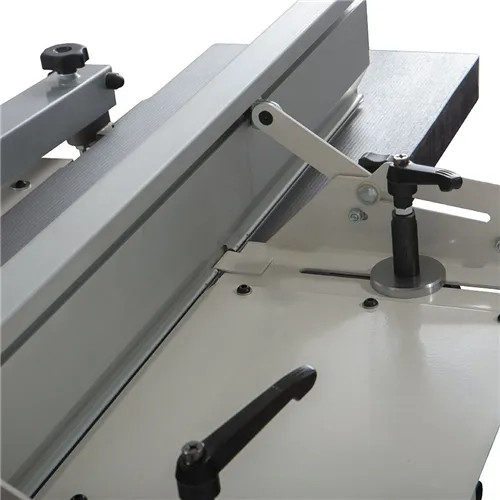

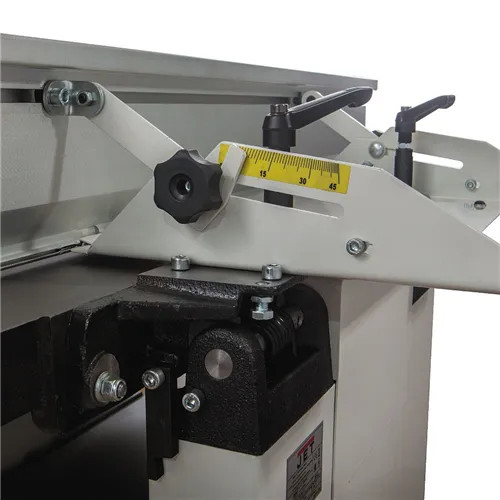

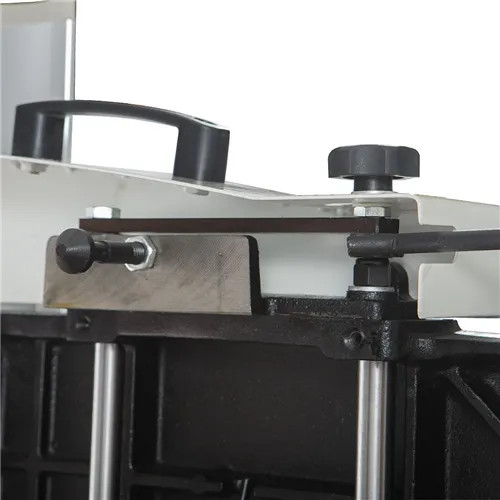

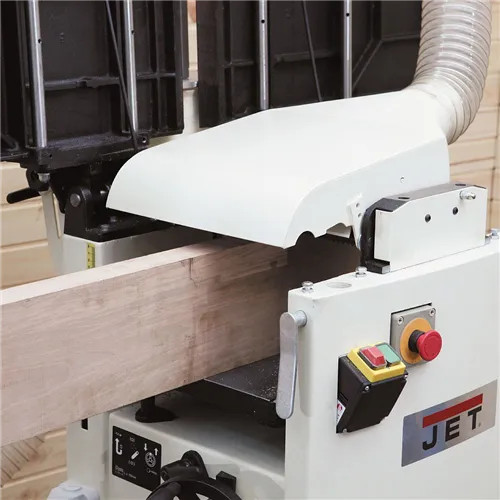

    You can comfortably lift the cast iron surfacing to change the function with just one hand. Switching from surface planing to thicknessing couldn‘t be easier. With its long table and precision fence, accuracy comes as standard as well as a super finish every time, thanks to the spiral spindle cutterblock. Easy eccentric rod adjustment of the infeed table. Eccentric adjustment of the out table as well. Dust extraction outlet keeps the machine clean when connected to a suitable dust extraction system. Machine for trade, workshops or maintenance, as well as for a wide range of jobs.

    The spiral cutterblock is really distinguishable. It's mounted with 15x15 mm carbide knives, set in precisely milled beds. The setting of knives in their beds secures their firmness. The knives are set into four spiral rows, thanks to this setting, planing is gradual and easy.  They imitate spiral router cutters, which are superb when it comes to cutting. Radius cutting edges secure a smooth surface job, transition among the knives and create a levelled surface. The knife overlap helps to provide you with a smoother surface and minimizes the size of chips. Thanks to increased hardness and the possibility of blade turning (HWM), the intervals between grinding are longer and also ensure continuous planing readiness. When a knife is damaged or blunt, simply and quickly replace it or rotate for another sharp edge.



    • Rating: Professional
    • Speed: 5500 rpm
    • Cutterblock Diameter: 70 mm
    • Max. Material Removal when Thicknessing: 4,5 mm
    • Max. Material Removal when Planing: 3 mm
    • Max. Thicknessing Height: 3-225 mm
    • Max. Width of Planing: 307 mm
    • Length of Table: 1400 mm
    • Dust Extraction Outlet: 100 mm
    • Length x Width x Height: 1400 x 750 x 1000 mm
    • Weight: 230 kg
