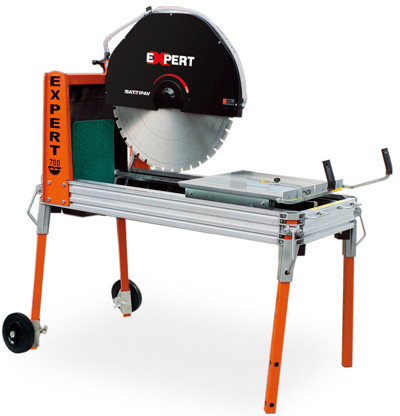

Battipav EXPERT 700 Stone Saw (Single Phase)

Stone saw ideal for the building sector suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.

EXPERT 700 is a masonry saw ideal for the building sector.
Innovative design with high tech solutions, very precise, compact, light and strong, it’s suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.
It makes cuts pushing the sliding working table and it is built to work with diamond disks from Ø 650 or Ø 700 mm.
It is equipped with wheels for easy transport.

Equipped with:
– Three phases engine 400V 50Hz 5,5Hp/4Kw with thermal and amperometrical protection
– Switch with release coil and overheat protection with manual reset
– Adjuistable cutting head
– Sliding working table
– Kit wheels
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Water cooled
Disk Ø700 mm not included.



STRUCTURE

Aluminium draw-plate to get the maximun of rigidity and lightness at the same time.
It has four handles for the carriage and movement.



FAMEWORK BRIDGE

Strong framework bridge holding the head motor group.

CUTTING BLADE ADJUSTMENT

Adjustment system of the cutting height with an hand wheel and relevant locking lever



STRAIGHT CUTS

Cutting position with sliding carriage.
