Battipav Expert 500 Stone Saw (3 Phase) (9500)

Battipav Expert 500 Stone Saw (Single Phase)

×
×
Brand:
Price:
€2,899.00 (inc VAT) €2,356.91 (exc VAT)
Availability:
7 - 14 Days
Shipping:
Calculated at checkout
Quantity:
  • Product Description

    Overview

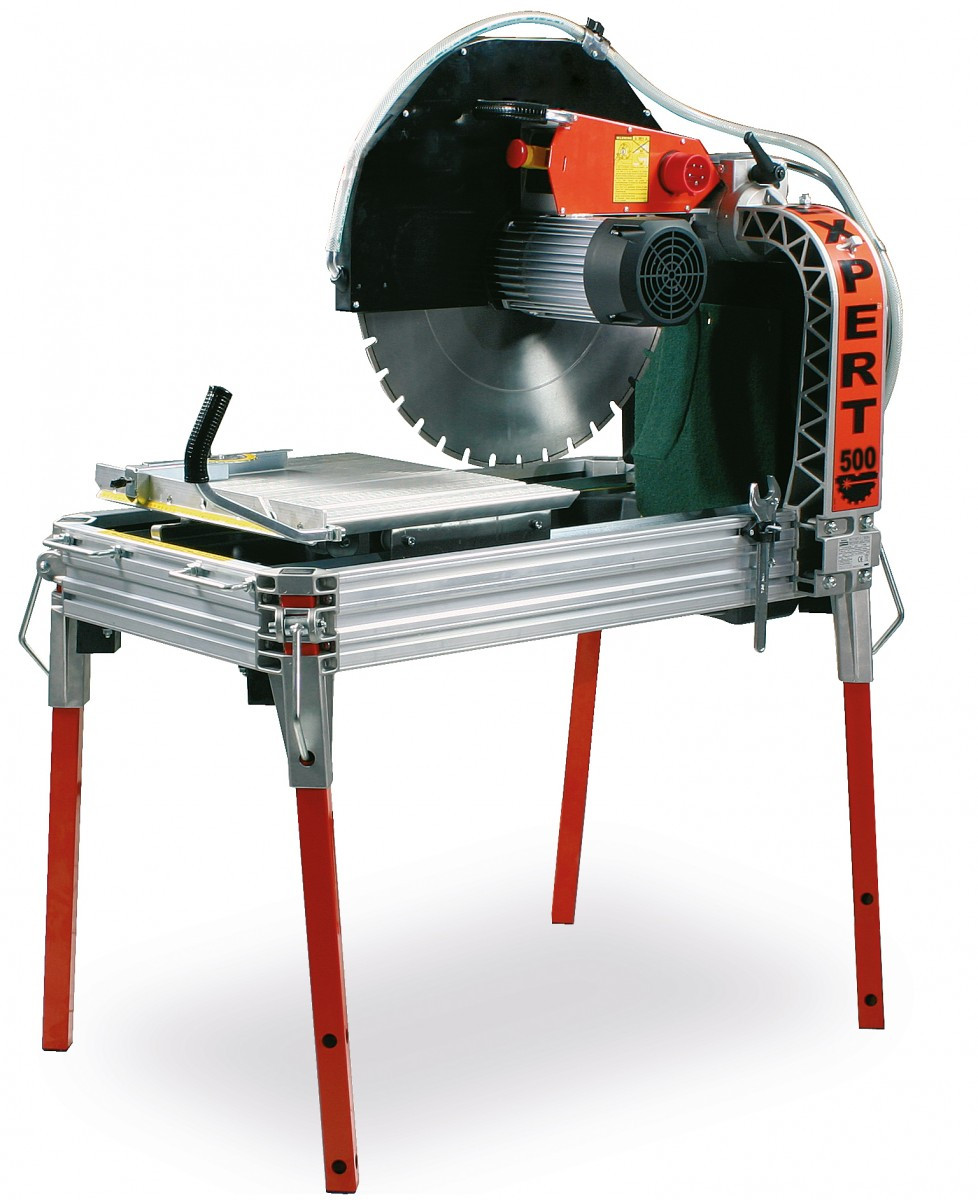

    EXPERT is a masonry saw ideal for the building sector.
    Innovative design with high tech solutions, very precise, compact, light and strong, it’s suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.
    It makes cuts pushing the sliding working table and it is built to work with diamond disks Ø 500 mm

    Features

    – Single phase engine 230V 4.5HP/ 3.5Kw

    – Overheat protection with manual reset

    – Sliding working table and tilting cutting head

    – Adjustable legs

    – Adjustable goniometer fence

    – Water recycling pump type S3

    Water cooled
    Disk Ø 500 mm not included.

    Specifications

    MAX CUTTING LENGHT

    750 mm

    SIZE TILE FOR DIAGONAL CUTTING

    412x412mm

    MAX CUTTING THICKNESS

    170 mm

    DIAMOND BLADE DIAMETER

    Ø500 mm

    TOOL HOLE

    Ø25,4 mm

    POWER ENGINE

    5,5Hp/4Kw, 8A

    MACHINE'S DIMENSION IN STOCK

    80x120x103 cm

    ROTATION SPEED

    1400/1700rpm

    WATER TANK CAPACITY

    Min. 19 / Max. 25 liters

    MAX CUTTING DEPTH WITH 2 RUNS

    235 mm

    ENGINE TYPE

    Single Phase - 230V

    LASER INSTRUMENT

    Optional

    WATER PUMP

    S3

    MACHINE'S DIMENSION

    1240x900xH1480mm

    WEIGHT

    85 kg

    AMPEROMETRIC PROTECTION

    10-16A

    FENCE

    Standard

    SIDE BENCH DIMESION

    442x520mm

    WHEELS

    Optional

    THERMIC PROTECTION

    160°c
