Battipav Expert 400 Stone Saw (Single Phase) (9400)

Battipav Expert 400 Stone Saw (Single Phase)

×
×
Brand:
Price:
€2,199.00 (inc VAT) €1,787.80 (exc VAT)
Availability:
7 - 14 Days
Shipping:
Calculated at checkout
Quantity:
  • Product Description

    Overview

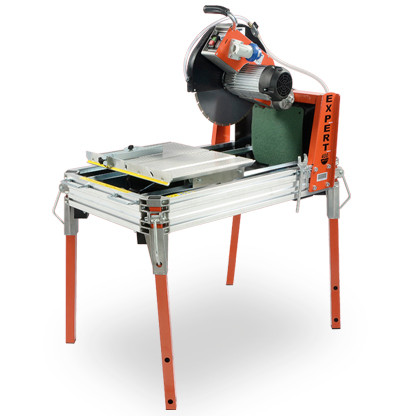

    EXPERT 400 is a masonry saw ideal for the building sector. Innovative design with high tech solutions, very precise, compact, light and strong, it’s suitable for cutting bricks, kerbs, tuff and all the different kind of material for the building sector. It makes cuts pushing the sliding working table and it is built to work with diamond disks from Ø400 mm. It is equipped with wheels for easy transport.

    Features

    – Single phase engine 230V./50hz. 3,8Hp/2,8 Kw. with thermal and amperometrical protection
    – Switch with release coil
    – Overheat protection with manual reset
    – Sliding working table and tilting cutting head
    – Adjustable legs
    – Adjustable goniometer fence
    – Water recycling pump type S2

    Water cooled
    Disk Ø 400 not included



    Specifications

    MAX CUTTING LENGHT

    570 mm

    SIZE TILE FOR DIAGONAL CUTTING

    395x395mm

    MAX CUTTING THICKNESS

    [110mm with blade Ø350mm]

    DIAMOND BLADE DIAMETER

    Ø400 mm

    TOOL HOLE

    Ø25,4 mm

    POWER ENGINE

    3,8Hp/2,8Kw, 12A

    MACHINE'S DIMENSION IN STOCK

    800x1200x2270 mm

    ROTATION SPEED

    2800rpm

    WATER TANK CAPACITY

    Min. 19 / Max. 25 liters

    MAX CUTTING DEPTH WITH 2 RUNS

    155 mm

    ENGINE TYPE

    SINGLE-PHASE 230V~50Hz

    LASER INSTRUMENT

    Optional

    WATER PUMP

    S2

    MACHINE'S DIMENSION

    1240x900xH1390mm

    WEIGHT

    73kg

    AMPEROMETRIC PROTECTION

    16A


    SIDE BENCH DIMESION

    442x520mm

    WHEELS

    Optional

    THERMIC PROTECTION

    160°c
