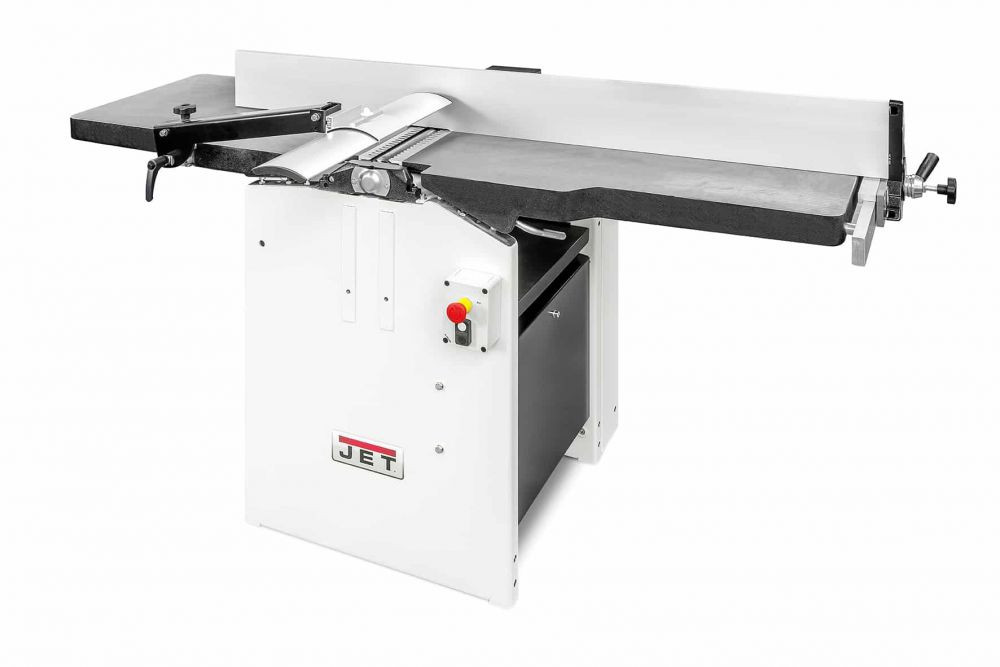

Jet RDJ-410HH-M Helical Planer Thicknesser (230V)

JET HELICAL PLANER THICKNESSER

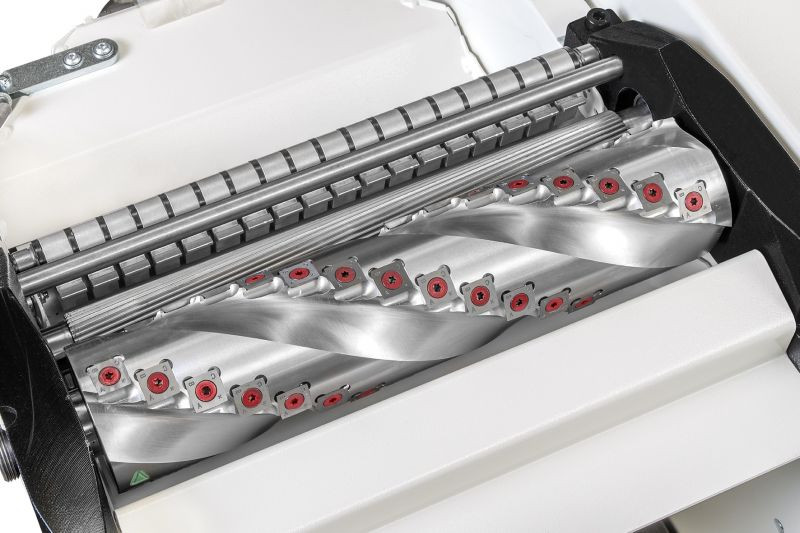

• Integrated spiral planing shaft fitted with 17 × 4 -fold carbide cutting inserts (68 in total).
• Optimal surface finish through drawn cut, tear-free even with an unfavourable grain structure.
• The volume of chips is significantly reduced (approx. 50%).
• Extremely quiet.
• The fine-grain carbide cutting inserts are robust and wear proof (5×HSS), simply continue turning by 90° to the next cutting edge where required.
• A machine investment that will pay off.
• 230v Single phase 2,2kW motor
• Cutterhead rotation 5,500 rpm
• Number of cutters – 3 spirals of 17 carbide tips

• Motor (V/kW) 230v /2,2
• Thicknesser height max – 230mm
• Thicknesser depth of cut max. – 4mm
• Thicknesser table dimensions – 600 x 410mm
• Planer depth of cut max. – 4mm
• Planer table dimensions 1,800 x 410mm
• Number of revolutions (rpm) – 5,500
• Cylinder diameter – 70mm
• Number of cutting inserts – 3 x 17
• Dimensions 1,961 x 830 x 1010mm
• Weight – 320kg
