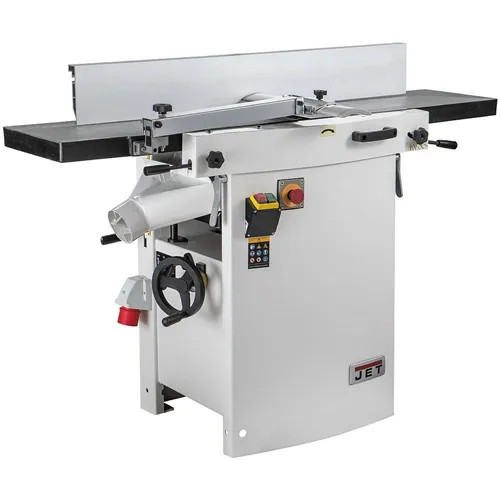

Jet JPT-310 Planer Thicknesser (400V - 3Phase)

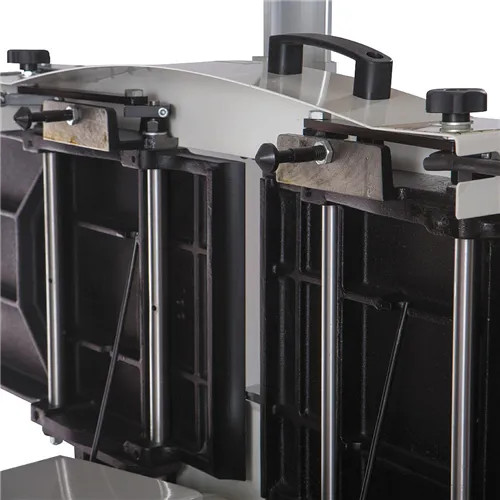

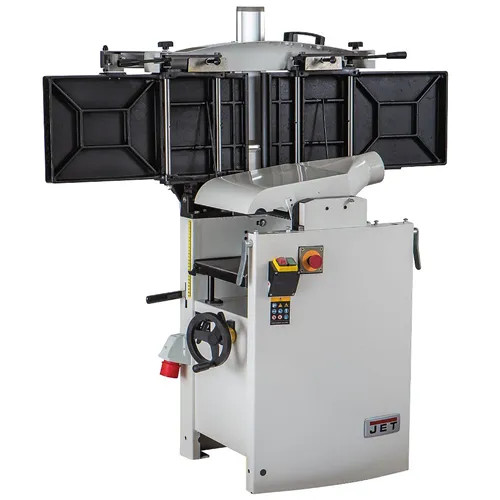

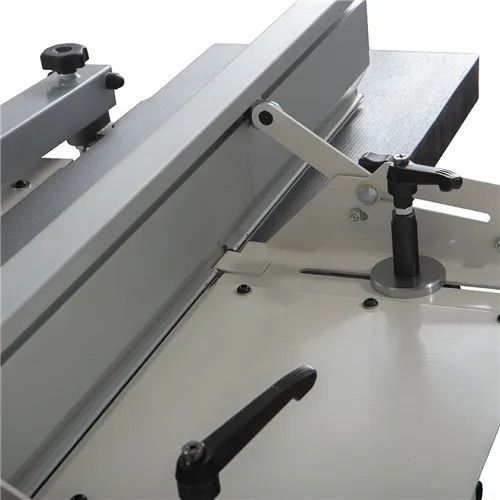

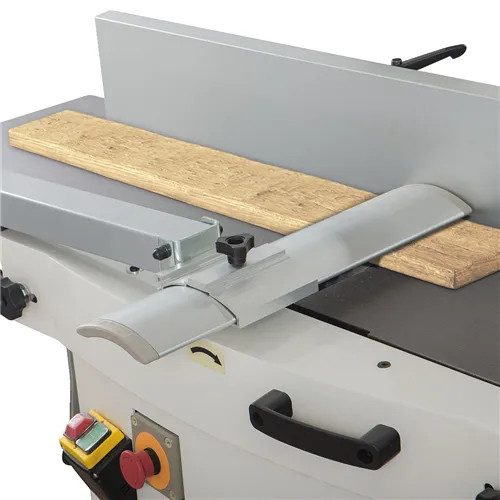

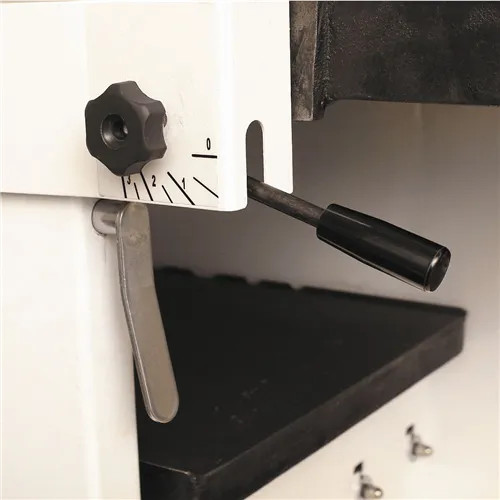

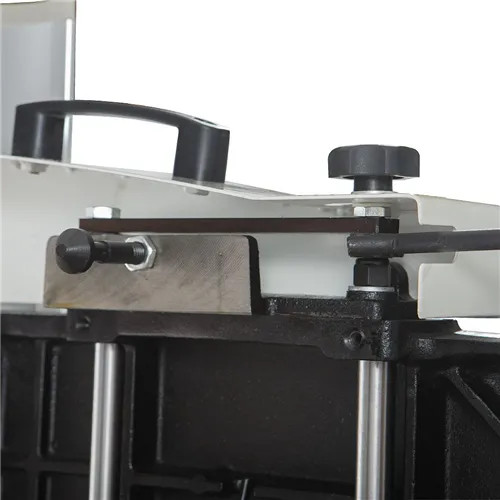

You can comfortably lift the cast iron surfacing to change the function with just one hand. Switching from surface planing to thicknessing couldn't be easier. With its long table and precision fence, accuracy comes as standard as well as a super finish every time, thanks to the 3 bladed cutter block. Easy eccentric rod adjustment of the infeed table and the out table make setting up of the machine a simple process. Dust extraction outlet keeps the machine clean when connected to a suitable dust extractor system. Machine for trade, workshops or maintenance, as well as for a wide range of different jobs.

Specifications

• Rating: Professional
• Power input / output (400V): 3,5 / 2,2 kW
• Cutterblock speed: 5500 rpm
• Cutterblock diameter: 70 mm
• Feed speed: 7 m/min
• Knives: 3 pcs HSS Resharpenable
• Max. removal when planing: 3 mm
• Max. removal when thicknessing: 4,5 mm
• Max. surfacing width: 307 mm

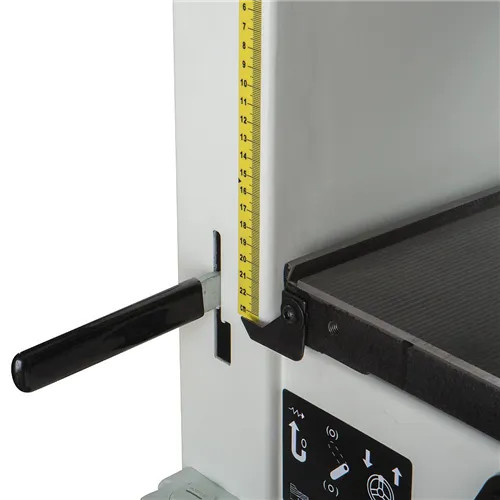

• Workpiece thickness: 3-225 mm
• Table length: 1400 mm

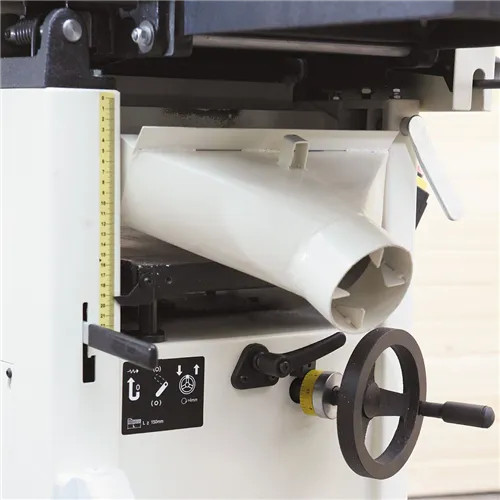

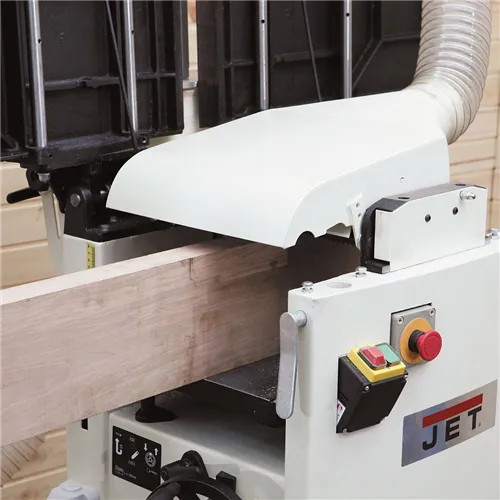

• Dust extraction outlet: 100 mm
• Dimensions (LxWxH): 1400 x 750 x 1000 mm
• Weight: 230 kg
