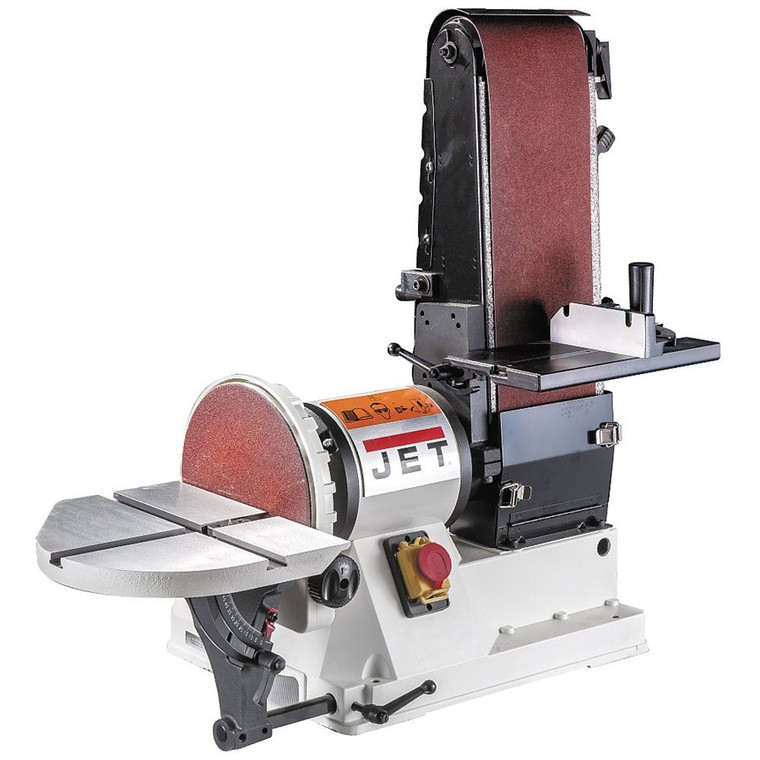

Jet 6" x 10" Belt/Disc Sander

• Sanding disc diameter 230 mm.
• Cast iron table with two stops at 45° and 90°.
• Sanding belt width 150 mm.
• Graphite slipper plate.
• Integrated dust extraction outlet 100 mm.

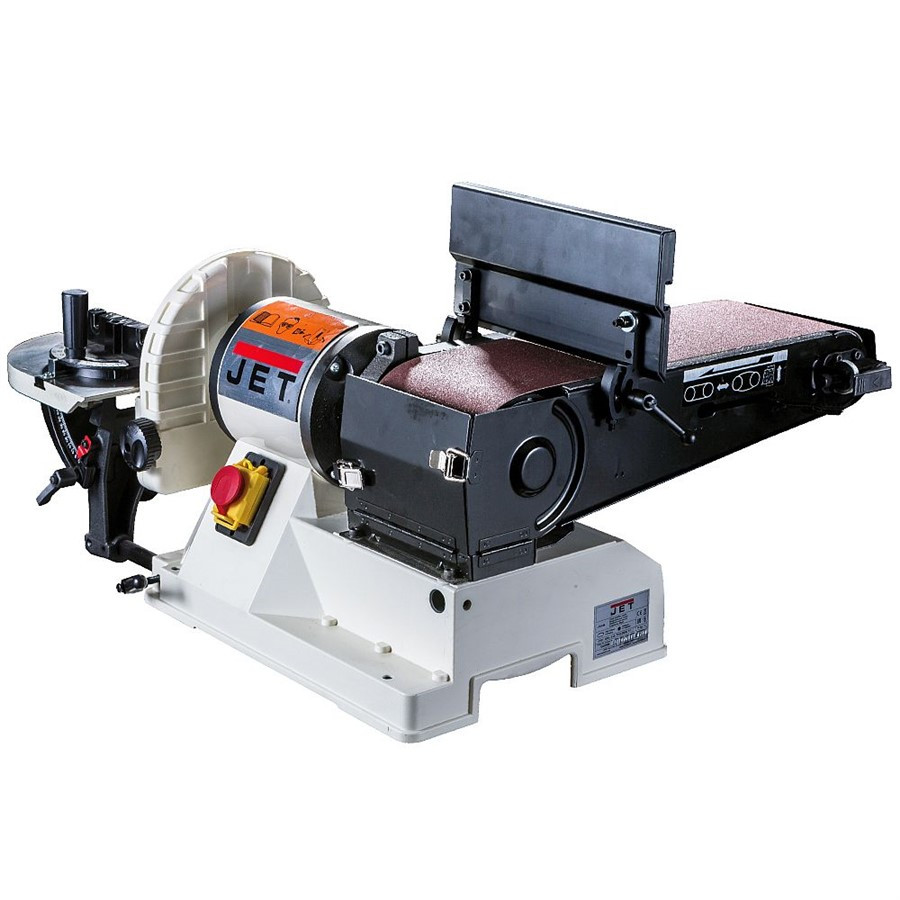

• The belt sander is tiltable for vertical or horizontal use.

The combined sander has a half-enclosed disc sander and a cast-iron table, which serves as a 45° tiltable support. The table is equipped with two T-slots, for fence or circle sanding point. Integrated dust extraction is equipped with dampers for effective extraction. The sander can be mounted straight onto a bench or onto an optional stand with storage space.

Type: JSG-96
Rating: Trade
Power Input (230V): 950 W
Speed: 1400 rpm
Speed of Belt: 10 m/s
Diameter of Disc: 230 mm
Belt Size: 150 x 1220 mm
Table Tilt: 0° to 45°
Table Size: 190 x 300 mm
Overall Length x Width x Height: 780 x 680 x 450 mm
Dust Extraction: 100 mm
Weight: 40 kg
