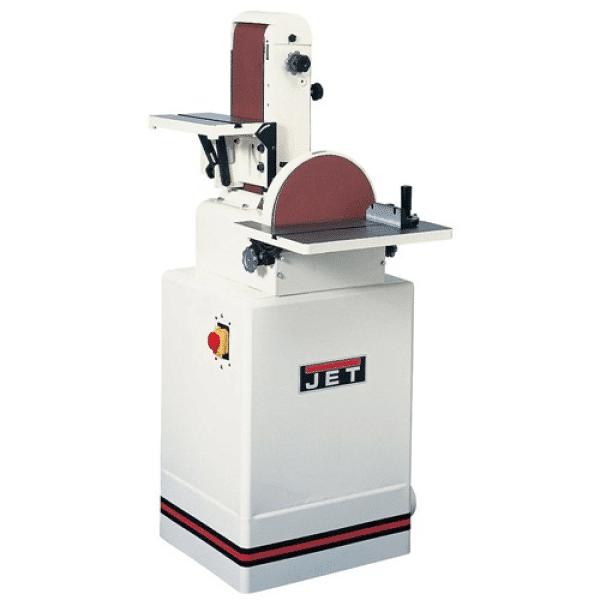

Jet JSG-31A Belt & Disc Sander (230V)

Overview

This is a heavy duty, floor standing belt disc sander made from high grade cast iron on a heavy pressed steel stand. The finely ground cast iron tables adjust easily, never leaving any gap between the table and the abrasive that can grab the work or make the machine unsafe for use. The disc sander has a T-slotted mitre fence for added safety and greater accuracy with the table tilting from 15° in one direction to 45° in the other. The sturdy cabinet base incorporates the on/off switch and the 100mm single dust extraction outlet. The addition of the 121-708118 mobile base will allow the machine to be easily maneuvered around the workshop. The belt sander can be used in either the vertical or horizontal position. With a cast-iron table, the accuracy is excellent and it also accommodates the T slotted mitre fence. Supplied complete with a sanding disc, sanding belt and mitre fence.
​

Features

• Heavily constructed in cast iron & welded steel
• Multi-position belt head locks at any angle from 0° to 90°
• Indexing pin for 0°, 45° and 90° stops
• Belt & disc tables are precision ground cast iron with mitre slots
• Belt table tilts down to 45° for bevelled & mitred angle sanding
• Full cast iron platen for smooth sanding
• Belt changing is quick & easy
• 300 mm balanced disc for flat, even coverage
• Suitable for hook & loop backed abrasive discs

Specifications

• Motor (V/kW) 230/2.0
• Sanding disc speed (rpm) 1’400
• Sanding belt speed (m/s) 12
• Sanding disc diameter (mm) 300
• Sanding belt dimensions (mm) 150 x 1’220
• Sanding disc table tilt -45° / 15°
• Sanding belt table tilt -45° / 0°
• Sanding disc table size (mm) 230 x 420
• Sanding belt table size (mm) 190 x 330
• Dust port (mm) 100
• Dimensions (mm) 830 x 700 x 1’400
• Weight (kg) 124
