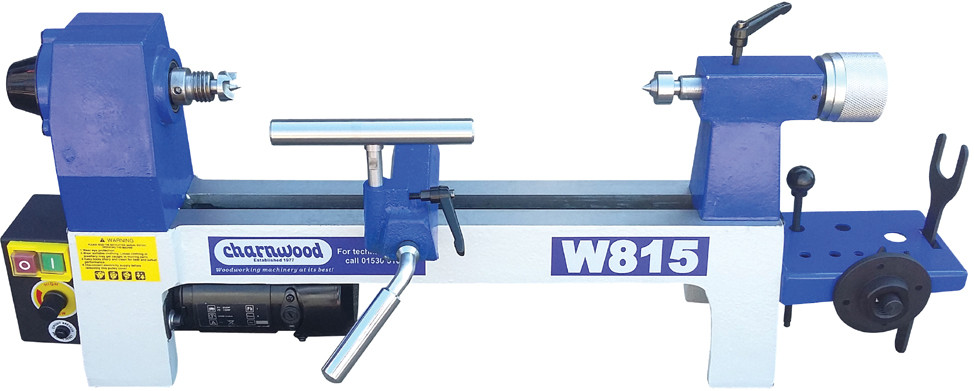

Charnwood W815 Mini Lathe

Charnwood W815 Mini Lathe

×
×
Price:
€249.00 (inc VAT) €202.44 (exc VAT)
Shipping:
Calculated at checkout
Quantity:
  • Product Description

    Mini Woodturning Lathe.

    A high quality mini woodworking lathe ideal for the production of smaller pieces or where the workshop size does not allow for a longer bed. Recommended for Pen Turning.
    The bed, headstock and tailstock are all constructed from cast iron to give vibration free running but the compact size means the weight is still manageable and the lathe can be removed from the bench when not in use.

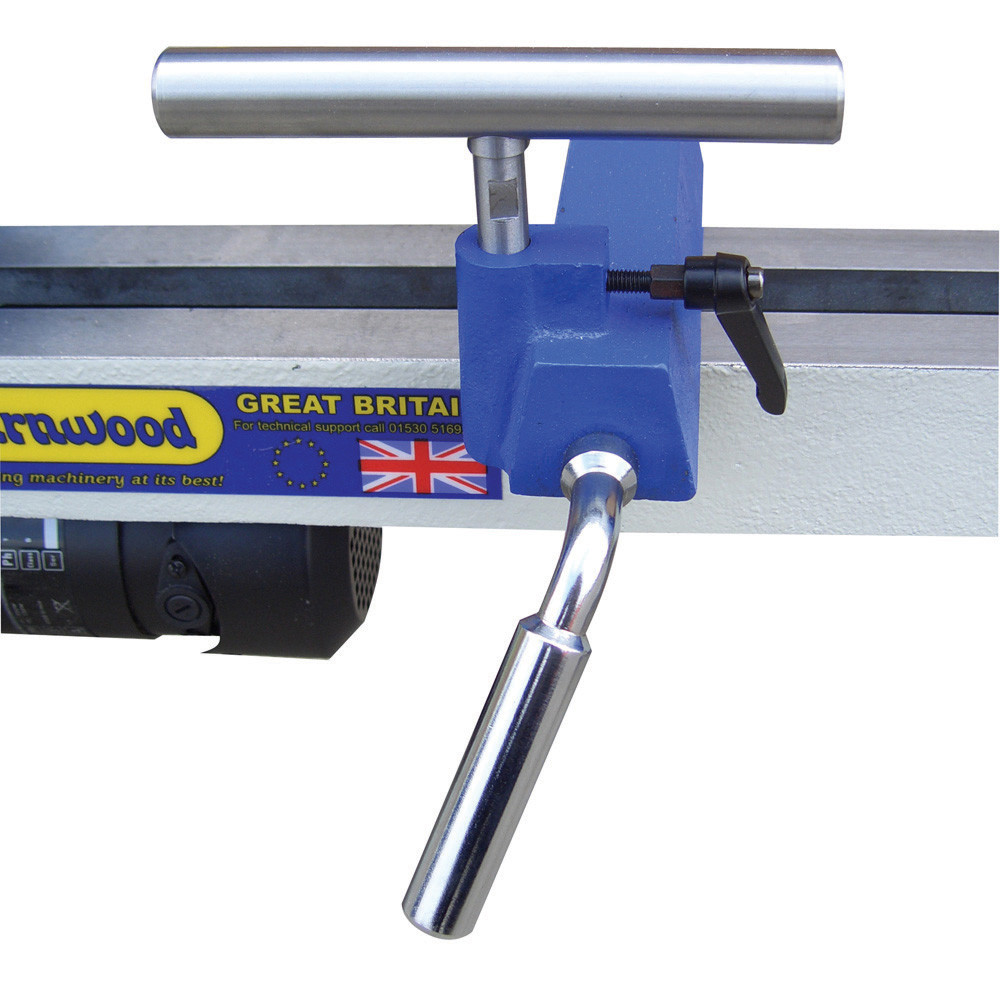

    Electronic variable speed control allows the ideal speed to be quickly selected for jobs of any diameter. The new cam lock banjo design is even easier to use, and when coupled with the new round bar tool rest is a winning combination. The tool rest cross bar can be removed from the stem to change the length of the cross bar. Compatible with the Robert Sorby range of cross bars.

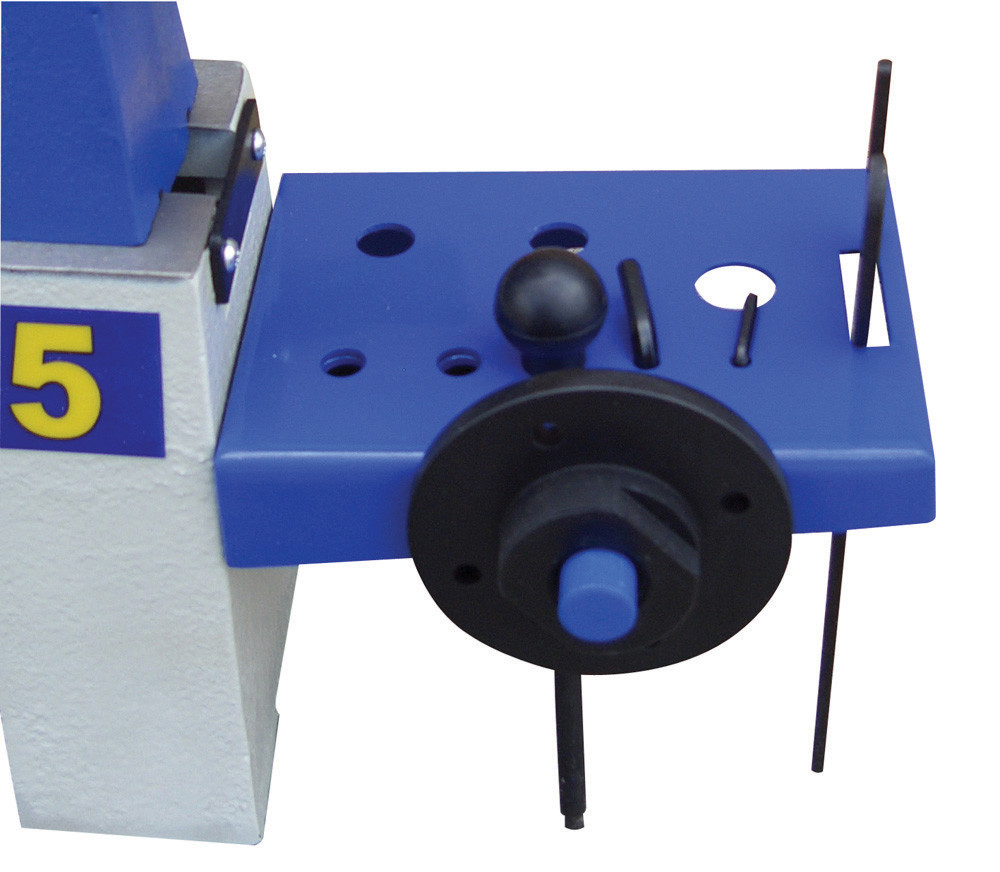

    We also now include a handy storage rack to keep centres, faceplates and service tools in one place and ready to go.

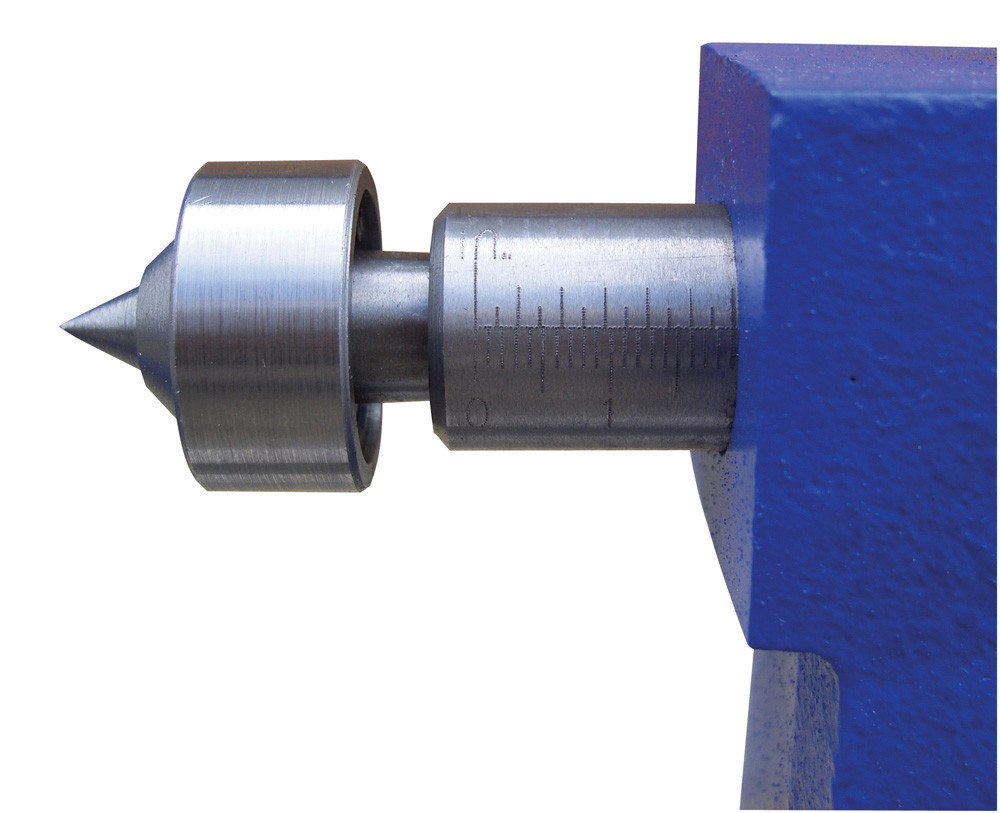

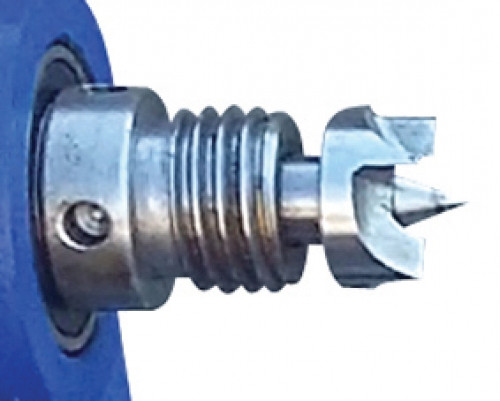

    Supplied with four prong drive centre, revolving tail centre, 150mm (6") tool rest cross bar with 12mm diameter stem, 75mm (3") diameter faceplate, cable and plug.

    Specification

    Distance between centres
    300mm (13")
    Distance over bed
    200mm (8")
    Motor (carbon brush)
    250w (1/3hp), 240v
    Speeds
    750 - 3200rpm
    Spindle thread size
    1" x 8tpi
    Head and tailstock tapers
    1MT
    Dimensions (WxDxH)
    690mm x 220mm x 310mm
    Weight
    20kg
    Rating
    Hobby
    Warranty
    1 Year
  • Related Products

  • Find Similar Products by Category

  • Other Details

    Distance between centres: 300mm (13")
    Distance over bed: 200mm (8")
    Motor (carbon brush): 250w (1/3hp), 240v
    Speeds: 750 - 3200rpm
    Spindle thread size: 3/4" x 16tpi
    Head and tailstock tapers: 1MT
    Dimensions (WxDxH): 690mm x 220mm x 310mm
    Weight: 20kg
    Rating: Hobby
    Warranty: 1 Year
×
×
