Charnwood W813P2 Floorstanding Lathe Package Deal (W813P2)

Charnwood W813P2 Floorstanding Lathe Package Deal

×
×
Price:
€995.00 (inc VAT) €808.94 (exc VAT)
Shipping:
Calculated at checkout
Quantity:
  • Product Description

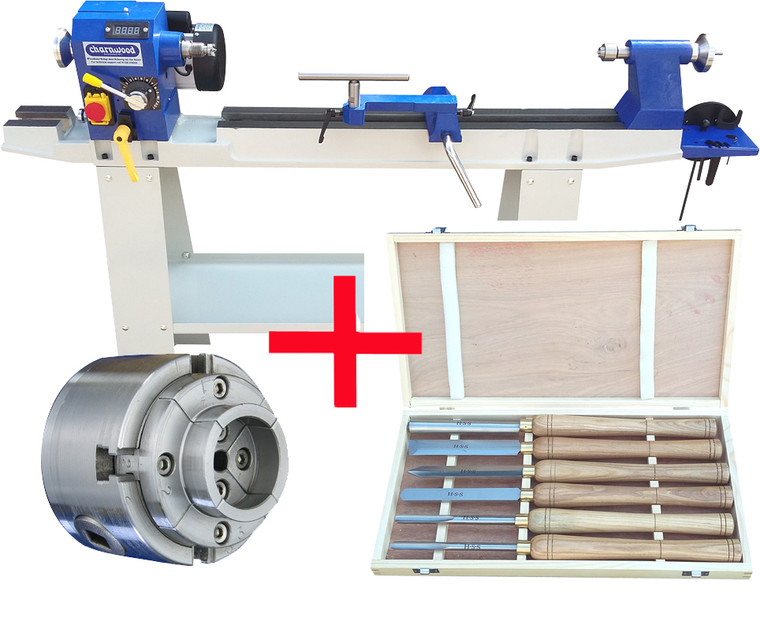

    Package includes

    • W813 12" x 36" Variable Speed Lathe
    • Viper3:  4 Jaw Geared Scroll Chuck
    • W834   6 Piece HSS Chisel Set



    Features

    • New 550w (3/4hp) Induction Motor
    • New Toolrest Design
    • New Easy-Operation Camlock Design
    • New Accessories Holder
    • 12" Bowl Turning Capacity
    • 36" Spindle Turning Capacity
    • Mechanical Variable Speed
    • Digital RPM Speed Display
    • Hollow Head & Tail Stocks
    • Rotating Headstock for 18" Bowls
    • Sturdy Floorstand with Shelf Included



    Manufacturer's Overview

    Cast iron construction, precision machining and great value for money are the key features of this woodturning lathe.

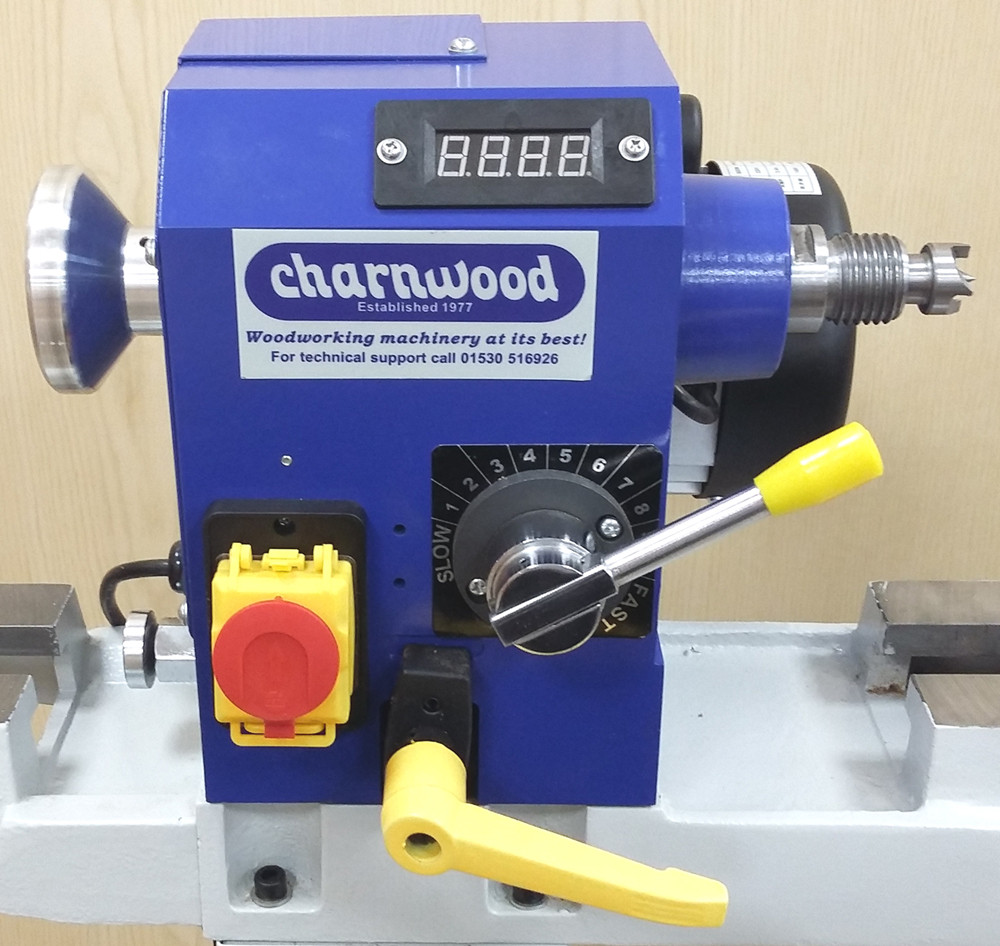

    This new version has an upgraded, more powerful, induction motor and a digital speed readout to accurately display the rpm speed of the spindle.

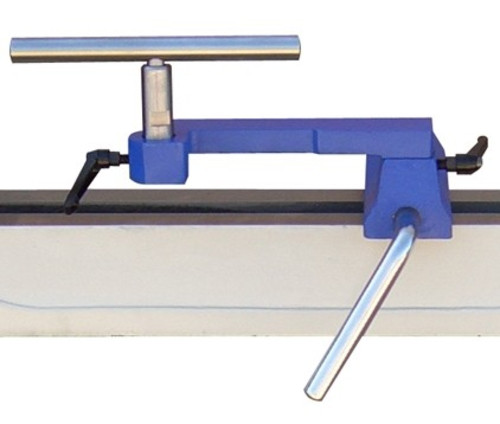

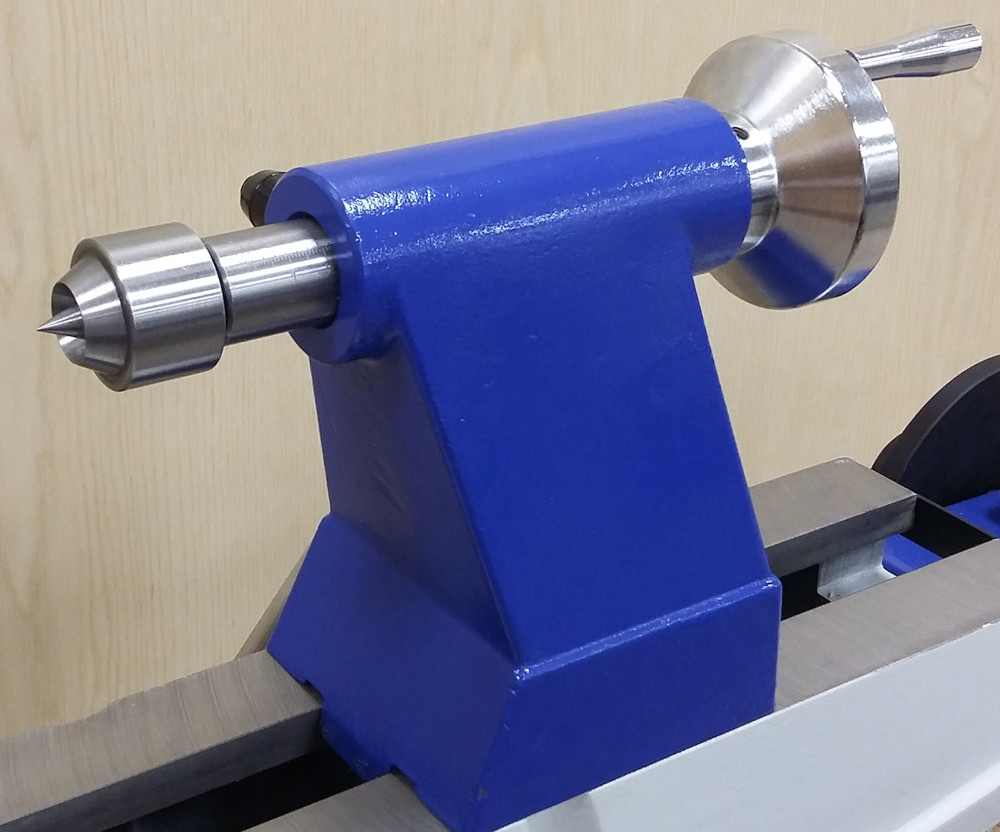

    Spindles of up to 12" diameter and 36" in length can be precisely turned over the bed using the cam-lock sliding toolrest. The sliding tail stock also uses a cam-lock for quick adjustments. The rotating headstock design allows for larger diameter work, such as bowl turning, of up to 18" in diameter, to be turned over the front of the machine. Obtaining the correct speed for cutting is no problem with the variable speed controller with 10 locator stops, which operates at the turn of a lever. When using the headstock rotated to the front, the extendable toolrest can be positioned on the left hand side using the extension bed supplied.

    Inclusive

    • Hollow headstock and tailstock suitable for long hole boring
    • Floorstand
    • NVR switch
    • 225mm long toolrest with 25mm shank
    • 4 prong drive centre 2MT

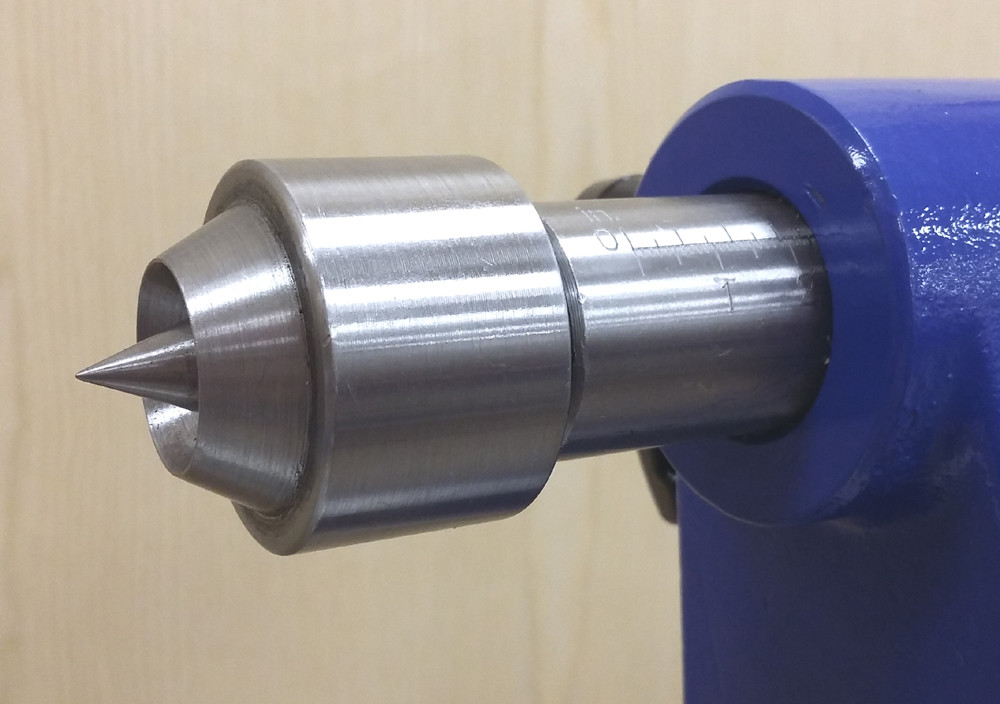

    • Revolving tail centre 2MT
    • 6" diameter faceplate
    • Knock out bar
    • Cable and plug



    Specification

    Distance between centres 900mm (36")
    Distance over bed 310mm (12")
    Motor (Induction) 550w (3/4hp)
    Speed ranges 10 (500 - 2000RPM)
    Spindle thread size M33 x 3.5
    Spindle tapers 2MT
    Dimensions (WxDxH) 1700mm x 450mm x 1120mm
    Weight 82kg
    Rating Hobby
