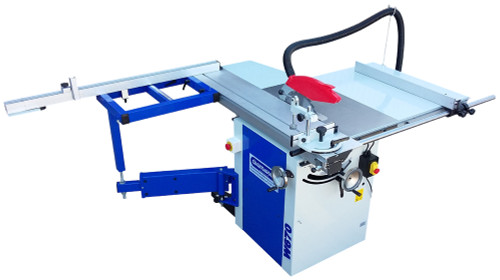

Charnwood 12" Panel Saw with Sliding Beam

×
×
Price:
€3,149.00 (inc VAT) €2,560.16 (exc VAT)
Shipping:
Calculated at checkout
Quantity:
Back in stock on 15th Jan 2024
  • Product Description

    A trade rated panel saw capable of handling 8’ x 4’ panels. The sliding beam has a heavy duty construction with a telescopic support arm under the outrigger table, to allow heavier panels to be effortlessly moved.

    The back fence is 1200mm long and is extendable to 2100mm. There is a sliding production stop with a metric measuring scale. The fence can be set at any angle between 90 and 45 degrees.

    For crosscutting solid wood there is also an auxiliary mitre fence which is adjustable 60 degrees each way and has a cam lock vertical work clamp.

    The rip fence runs on a solid steel bar and allows dimensions of up to 1225mm to be set. The is also a micro adjuster to allow the rip fence to be moved by small amounts.

    A 3hp Induction motor supplies the power for cutting up to 100mm depth. There are 2 separate hand wheels for controlling blade height and blade tilt.

    Supplied with emergency stop button, 24 tooth TCT sawblade, sliding beam, rear extension table, right hand extension table, dust extraction outlet 100mm diameter, cable and 16 amp plug.

    Specification

    Main Table Size 760mm x 960mm
    Maximum Ripping Width Using Fence 940mm
    Maximum Crosscutting Width 1225mm
    Blade Tilt 90 - 45 degrees
    Cutting Depth at 90 degrees 100mm
    Cutting Depth at 45 degrees 75mm
    Blade Diameter x Bore x Kerf 315mm x 30mm x 3.2mm
    Work Table Height 875mm
    Motor (induction) 2200w (3hp) / 240v
    No-load Blade Speed 4250
    Minimum Blade Width (Kerf) 3.2mm
    Dimensions (WxDxH) 2500mm x 1400mm x 1250mm
    Minimum Floor Area Required (WxD) 2500mm x 3100mm
    Weight 194Kg
    Db (Without Load/With Load) 81Db/89.5Db
    Rating Trade
    Warranty 1 Year

    It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. The hose kit supplied collects dust from the saw guard and takes it to the single 100mm diameter hose connection point at the rear of the machine.
