Charnwood W619 8'' Cast Iron Table Saw

8" Cast iron table saw.

• Quiet Induction Motor
• Cast Iron Precision Ground Table
• Extension Tables as Standard Equipment
• Sliding Carriage as Standard Equipment
• Separate Handwheels for Blade Adjustment
• 100mm Dust Extraction Outlet
• Solid Floorstand Base Included
• Optional Wheel Kit

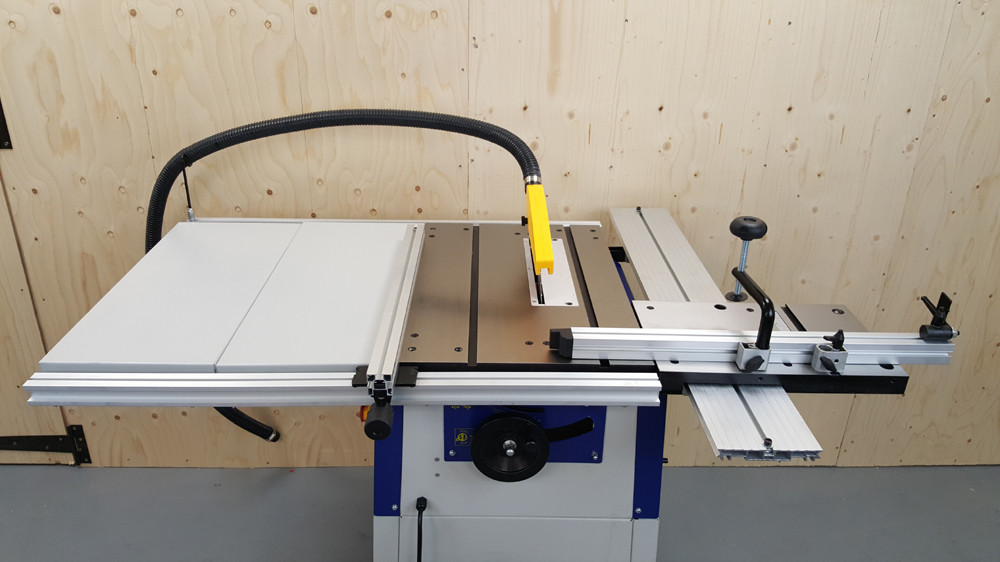

New features: There are now 3 ways to configure the table saw (see pictures 1,2 & 3). The sliding carriage can now be fitted on either side of the blade so that you can work on the left or right.
If you are not using the sliding carriage you can fit one extension table on either side of the blade or both on the right hand side or both on the left hand side.

A compact, high quality table saw with a quiet induction motor. The main table is precision ground cast iron, and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy. Blade height and blade angle are controlled using 2 separate handwheels. The sliding carriage, included as standard, is a joy to use with a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip over length stop is fitted for repeat cuts.
Supplied with 18 tooth TCT sawblade, sliding carriage, extension tables, floorstand, adjustable feet, cable and plug.

For storage the right hand extension and sliding carriage can be removed in less than a minute and rebuilt in 2 1/2 minutes with no setting up required.

Specification

 It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. The hose kit supplied collects dust from the sawguard and takes it to the single 100mm diameter hose connection point at the back of the machine.
