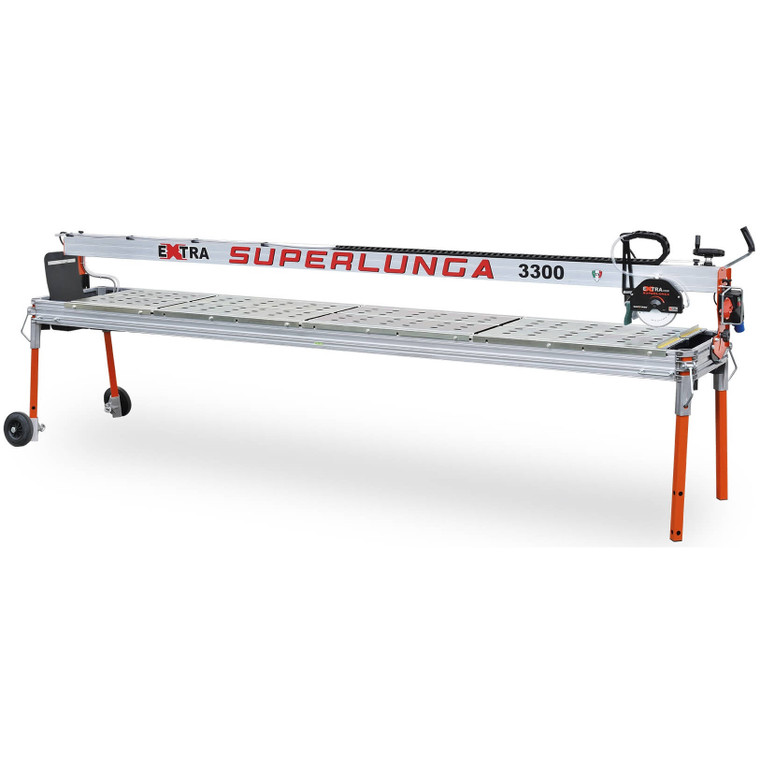

Battipav Extra 3300 Superlunga Tile Bridge Saw with Laser & Wheels
€6,499.00
(Inc. VAT)
€5,283.74
(Ex. VAT)
Overview
EXTRA 3300 S Superlunga is a new radial tile cutter ideal for straight and 45° angle cuts on oversize porcelain tiles. A new designed bridge profi le with vanguard technical innovation, strong and precise, it is equipped with a POWERFUL MOTOR, sliding and plunging cutting head.
It is built to work with diamond disks Ø200 mm special gres.
Laser instrument and kit wheels are supplied standard.
Features
– Single-phase 230V~50Hz 1,4Kw
– Sliding cutting head and tilting engine
– Thermal protection
– Switch with release coil
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S1
Water cooled
Disk Ø200 mm special gres included
Specifications
| MAX CUTTING LENGHT |
3300 mm |
|---|---|
| SIZE TILE FOR DIAGONAL CUTTING |
2330×2330 mm |
| MAX CUTTING THICKNESS |
40 mm |
| MAX CUTTING DEPTH FOR 45° (JOLLY) CUT |
35 mm |
| DIAMOND BLADE DIAMETER |
Ø200 mm |
| TOOL HOLE |
Ø25,4 mm |
| POWER ENGINE |
1,8Hp / 1,4Kw |
| ROTATION SPEED |
2800min-1 |
| WATER TANK CAPACITY |
Max. 25 liters |
| MAX CUTTING DEPTH WITH 2 RUNS |
55 mm |
| ENGINE TYPE |
SINGLE-PHASE 230V~50Hz |
| LASER INSTRUMENT |
Standard |
| WATER PUMP |
S1 |
| MACHINE'S DIMENSION |
3975 x 900 x H 1260 mm |
| WEIGHT |
179,5 kg |
| FENCE |
Standard |
| EXTENSION SIDE BENCH |
4 pcs supplied standard |
| SIDE BENCH DIMESION |
3345×625 mm |
| WHEELS |
Standard |
| THERMIC PROTECTION |
170°C |
| CUTTING PROGRESS SYSTEM |
Standard |
| SIDE BANCH WITH ROLLERS |
Optional |
| TILE LOCK SYSTEM |
Optional |
-
-
