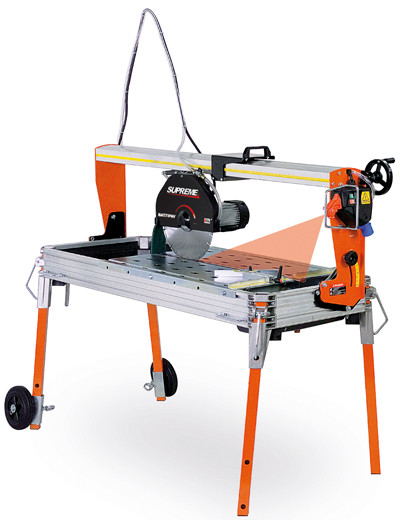

Battipav Supreme 100S Marble Bridge Saw with Wheels & Laser (81001)

Battipav Supreme 100S Marble Bridge Saw with Wheels & Laser

×
×
Brand:
Price:
€2,599.00 (inc VAT) €2,113.01 (exc VAT)
Availability:
Special Order - Machines are despatched direct from the Manufacturer
Shipping:
Calculated at checkout
Quantity:
  • Product Description

    Overview

    Supreme is a bridge saw ideal for cutting natural stones, granite and marble slabs.
    It makes cuts moving forward manually the engine group.
    It is built to work with diamond disk Ø300 mm.



    Features

    • Single phase engine 230V 50Hz 3Hp/2,2Kw with thermal and amperometrical protection
    • Switch with release coil
    • Overheat protection with manual reset
    • Sliding cutting head and tilting engine
    • Cutting progress system with hand wheel
    • Laser instrument
    • Kit wheels
    • Adjustable legs
    • Adjustable goniometer fence
    • Water recycling pump type S3
    • Disk Ø 300 not included



    Specifications



    MAX CUTTING LENGHT

    1000 mm

    SIZE TILE FOR DIAGONAL CUTTING

    705×705 mm

    MAX CUTTING THICKNESS

    85 mm

    MAX CUTTING DEPTH FOR 45° (JOLLY) CUT

    60 mm

    DIAMOND BLADE DIAMETER

    300 mm

    TOOL HOLE

    25,4 mm

    POWER ENGINE

    3Hp/2,2Kw, 9A

    MACHINE'S DIMENSION IN STOCK

    72x175x100 cm

    ROTATION SPEED

    2800rpm

    WATER TANK CAPACITY

    Min. 23/ Max.36 liters

    MAX CUTTING DEPTH WITH 2 RUNS

    135 mm

    ENGINE TYPE

    SINGLE-PHASE 230V~50Hz

    LASER INSTRUMENT

    Standard

    WATER PUMP

    S3

    MACHINE'S DIMENSION

    1780x900x H1280 mm

    WEIGHT

    87 kg

    AMPEROMETRIC PROTECTION

    13 A

    FENCE

    Standard

    EXTENSION SIDE BENCH

    Optional

    SIDE BENCH DIMESION

    855×625 mm

    WHEELS

    Standard

    THERMIC PROTECTION

    160°C
