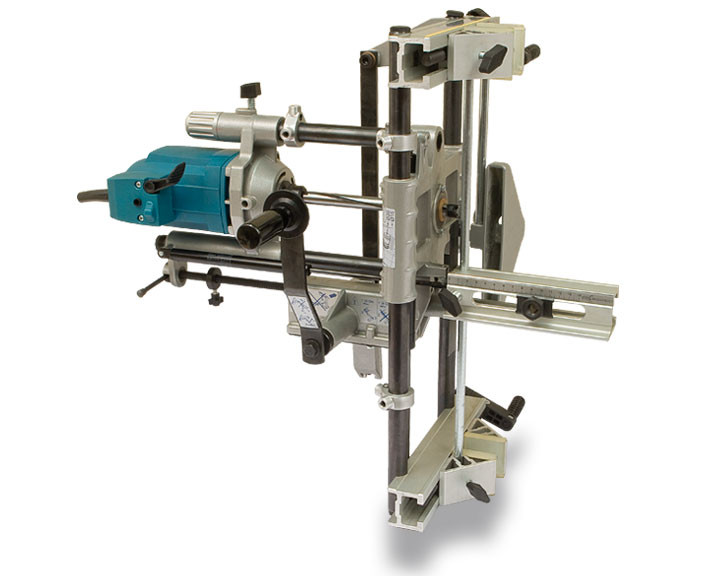

Virutex FC116U Lock mortiser Machine

Lock mortiser FC116U

CE Double isolation Capacitor Dust collector connection Transport case

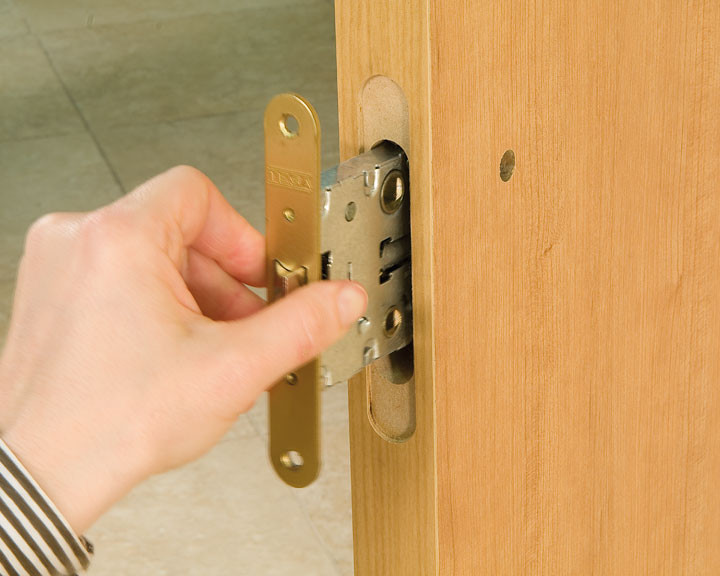

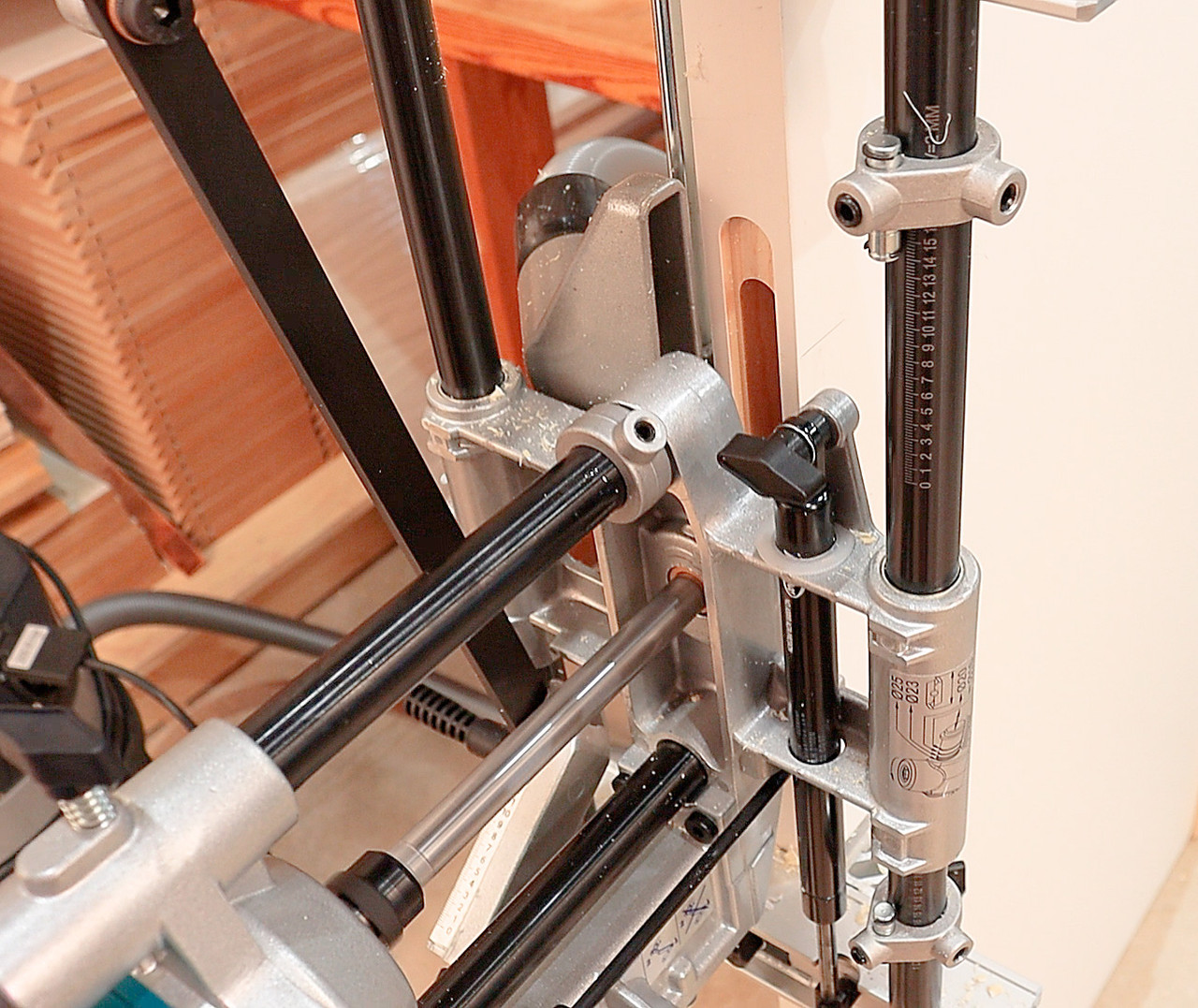

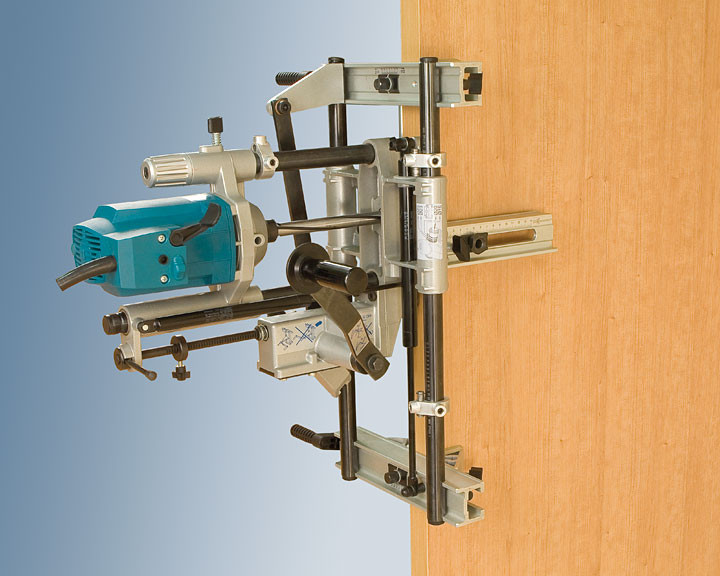

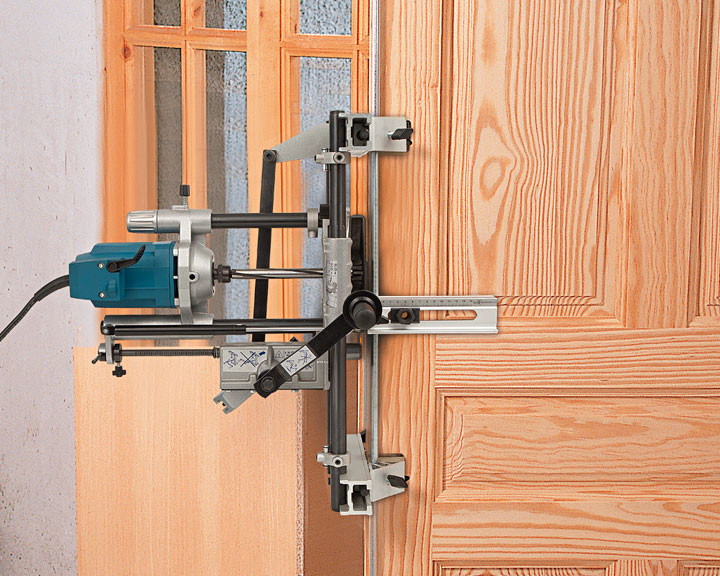

Specially designed for quick, precise mortising on doors or other elements, either at the work site or in the workshop. Its special fixing system allows the mortising of doors that have already been hung, without damaging the surface. Its quick measurement adjustment permits multiple mortises to be made in record time. Also able to work horizontally. For mortising grooved doors or those with overlap, there is an adjustment system to centre the machine. Optional bits are low-cost and easily inter-changeable, which keeps the preparation of the FC116U to a minimum when mortising fittings for lock fronts. It comes factory-equipped with tool UT16I, which allows for making quick, precise transverse holes for inserting handles and other parts.

Equipped from factory with hard metal lock mortiser bit Ø 1”, locking bar to make mortises on several doors at the same height, rubber protectors for delicate jobs, service keys and dust collector connection.

Standard equipment

Equipped from factory with carbide lock mortiser bit Ø 16 mm,locking bar to make mortises on several doors at the same height, rubber protectors for delicate jobs, UT16I, service keys and dust collector connection.

Specification

Double insulation Input power: 1.100 W

Max. bit Ø: 30 mm

Max. mortising depth: 0-125 mm

Max. mortising length: 177 mm + Ø fresa/bit/fraise

Max. clamp vise opening: 190 mm

No-load speed: 23.000/min

Optional

UP16I Clamp extension  |  Carb. drilling bit* 2 c. Ø 18 mm | Carb. drilling bit* 2 c. Ø 23 mm
