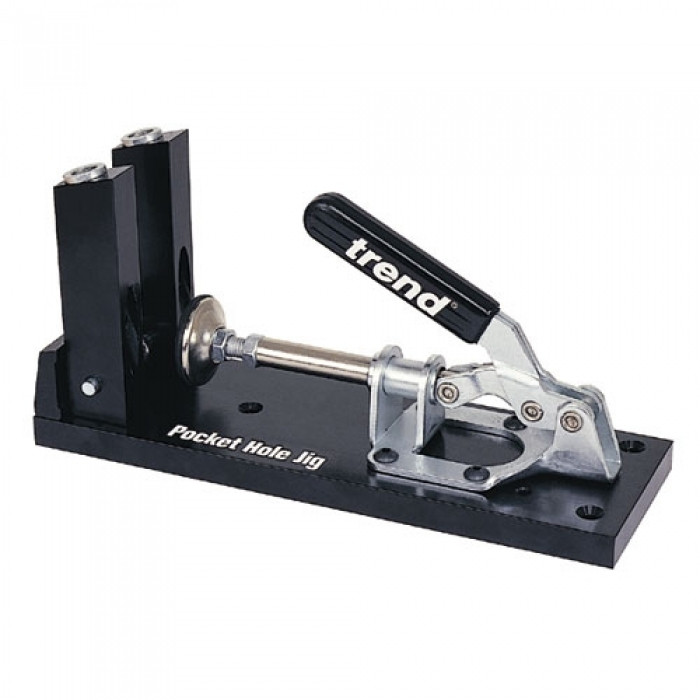

Trend Pocket Hole Jig

The Trend PH/JIG Pocket Hole Jig is great for fast and accurate joining of timber and plywood, giving strong instant joints. Solid hardened bushes with variable pitch of 29mm to 63mm.

Use on timber, MDF, plywood and blockboard. Allows a variety of joints to be created individually. Uses square drive self tapping screws. Workpiece can be handled immediately after gluing and screwing, creating time saving benefits. No clamps required.

The Trend PH/JIG Pocket Hole Jig is supplied with: 100 x Dome Head Screws, 1 x Face Clamp, 1 x HSS Drill Bit With Collar, 1 x 75mm Square Drive Bit, 1 x 150mm Square Drive Bit.

Technical Specs

Material Thickness: 16-38mm.
Material Width: 38mm.
Hole Pitch: 29-63mm.
Drill diameter: 9.5mm.
Square Drive Bit Size: No.2.
Screw Size: No.7 x 30mm.
