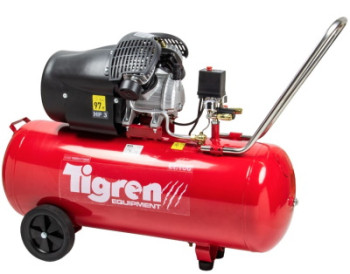

The TIGREN V100DD 3HP Direct-Driven Compressor utilises a heavy-duty V-configuration pump unit which helps to keep the physical footprint of the compressor minimal, meaning a more compact and lightweight design ensuring easy and effortlessly portability.
Not only is the TIGREN V100DD ready-for-use and ideal for the home user, small garages and workshops, it also caters for portable air requirements in a range of environments.
KEY FEATURES
- No-nonsense workhorse compressor
- Direct-driven model that is fully ready-for-use
- Wheel-mounted for easy manoeuvrability and positioning
- Anti-vibration rubber mounts for tank and pump protection
- 2-cylinder V-configuration splash oil-lubricated pump
Input Supply: |
230v (13A) |
Motor Power: |
2.2kW (3hp) |
Receiver Size: |
100ltr |
Piston Displacement: |
13.00CFM (368ltr/min) |
Free Air Delivery (FAD): |
8.00CFM (227ltr/min) |
Max. Air Pressure: |
116psi (8bar) |
Net Weight: |
59.10kg |
Gross Weight: |
62.50kg |
Product Dimensions: |
850(H) x 350(W) x 1350mm(D) |
Packaged Dimensions: |
1090(H) x 820(W) x 390mm(D) |
