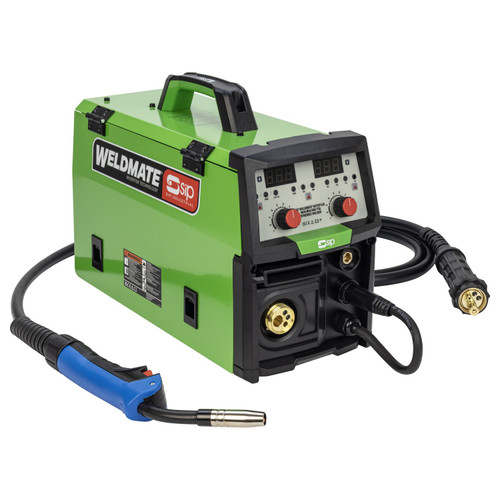

Multi-process MIG/ARC/TIG welder for greater flexibility at high duty cycles
-Duty cycle @ 40°C: 180A @ 15% (MIG/ARC/TIG).
Pure Synergic Control allows users to adjust welding voltage and wire speed autonomously
-This easy-to-set function simplifies the welding process at all skill levels, helping to achieve more consistent and higher quality welds.

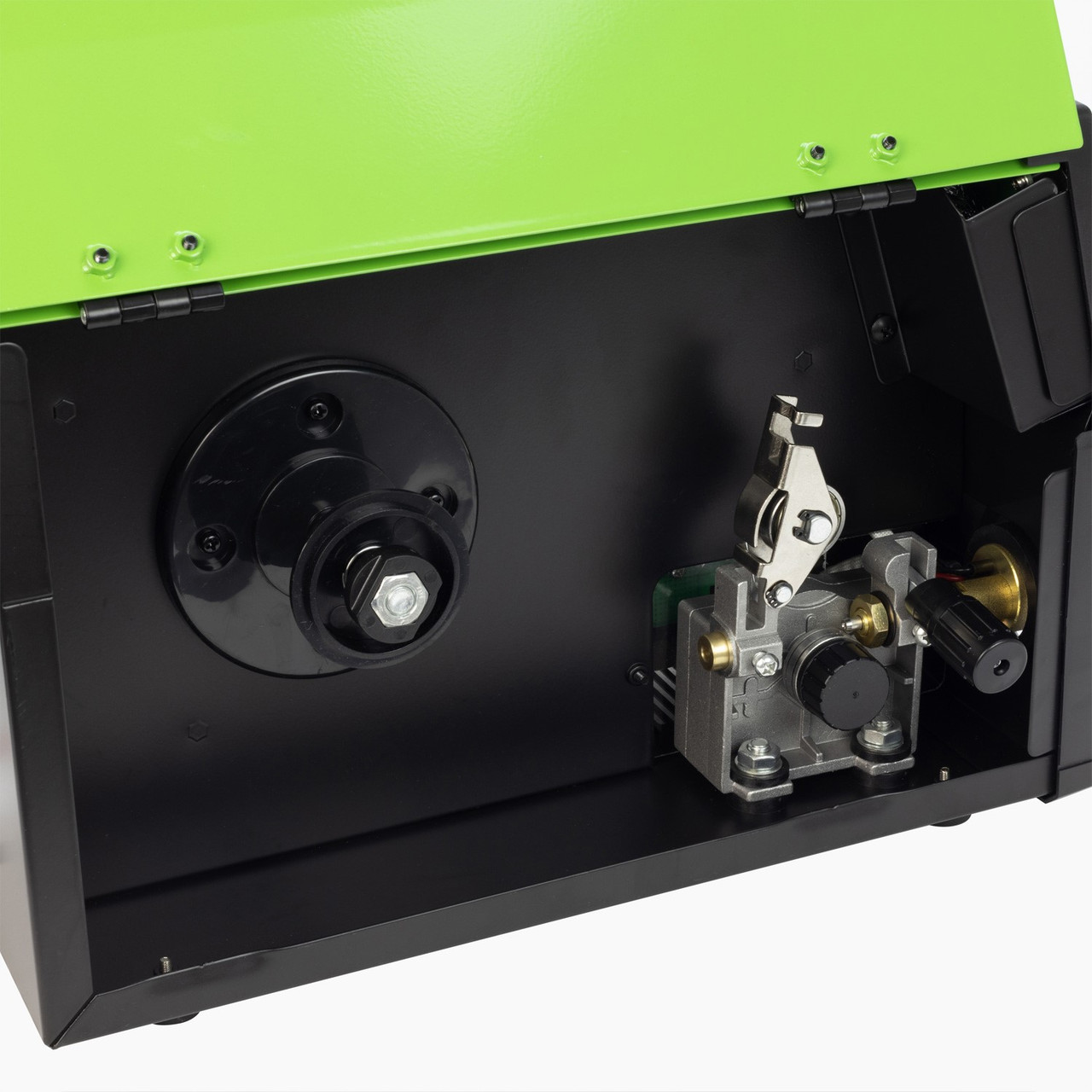

Heavy-duty aluminium wire feeder ensures smooth and consistent flow of wire to MIG torch
-This easy-to-use device includes tension adjustment to maintain optimal performance.
Supplied with interchangeable feed rollers for solid and flux-cored wires.
Compatible with 0.7kg and 5kg welding wire spools.

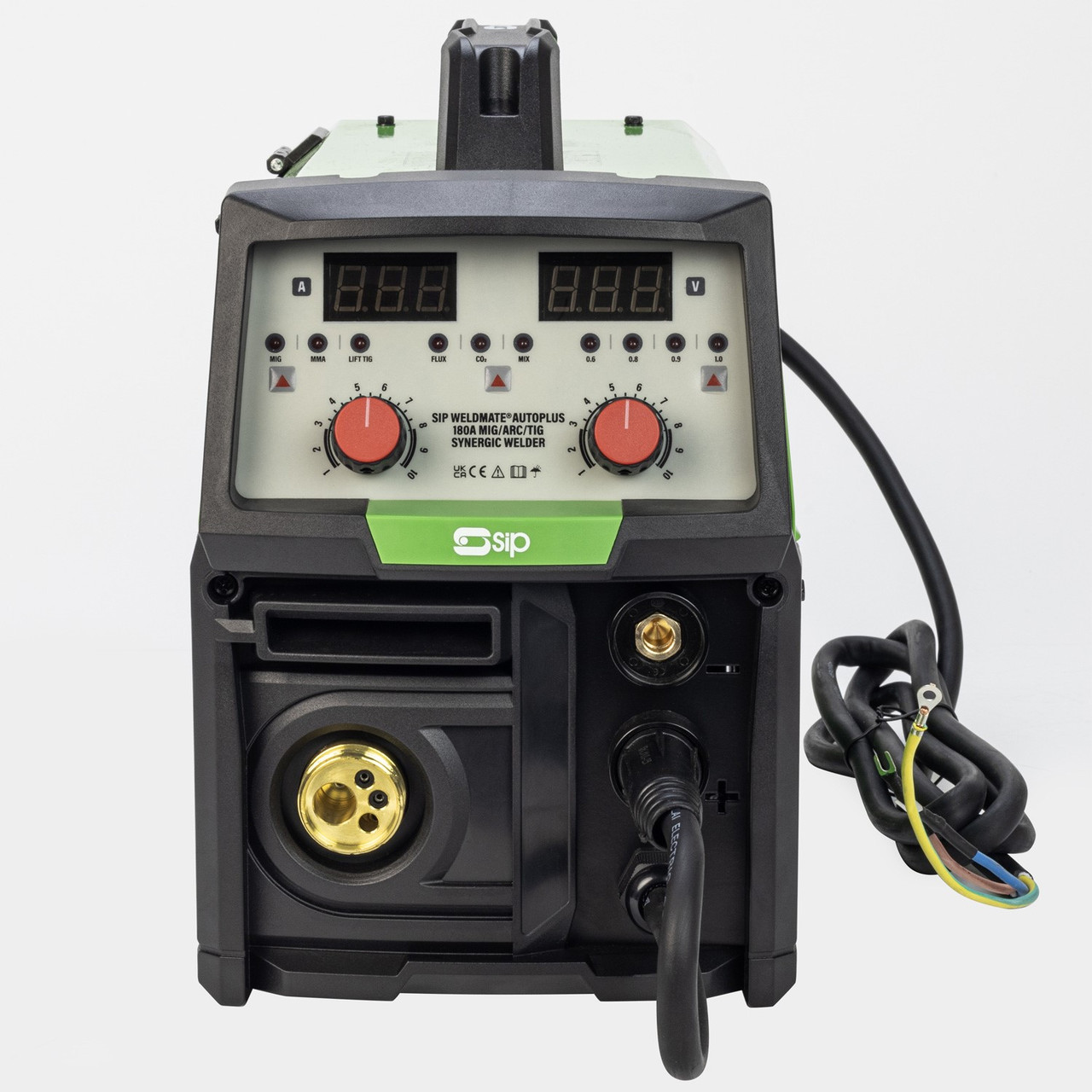

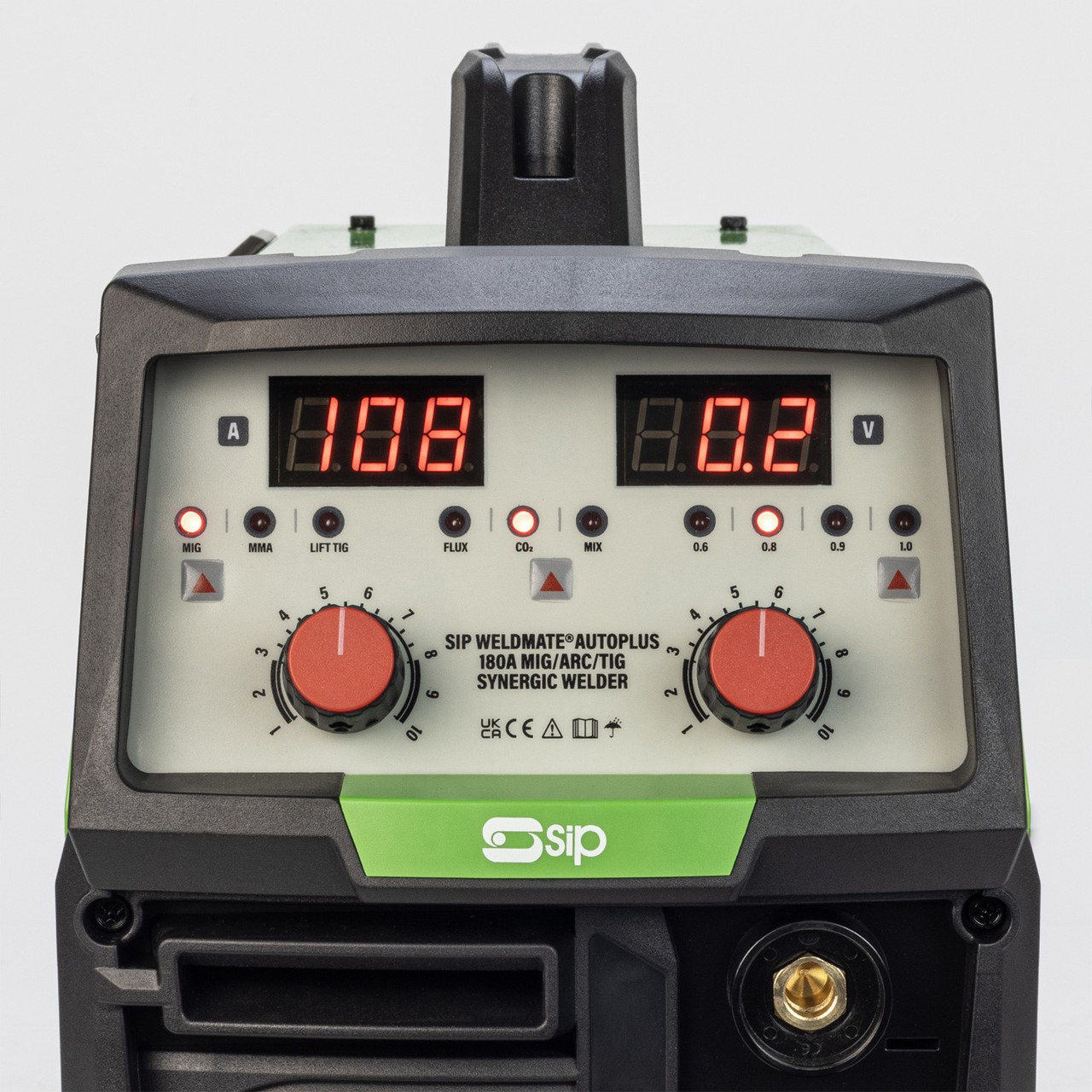

Intuitive control panel to select between welding process, gas type and wire size
-Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easily controlled welding.
Twin LEDs display welding output and synergic control metrics.
Metal casing with heavy-duty carry handle for long life use
-High-quality finish is resistant to work area damage and aids mobility.
Compact and portable design for mobility around the work area
-The compact unit is easy to move between locations using the fitted carry handle.
Accessories included
-Supplied with integrated 3mtr Euro MIG torch, electrode lead, earth lead, gas hose with camps, contact tips, feed rollers and chipping hammer/brush.
Compatible with SIP Welding Cart & Trolley for added mobility
-Compatible with the 05714 SIP 3-Tier Welding Cart, suitable for gas cylinders up to 50kg.
-Compatible with the 05719 SIP Large Cylinder Welding Trolley, suitable for gas cylinders up to 99kg.
Specifications
| Input Supply: |
230v (16A) |
| Welding Process: |
MIG |
ARC |
TIG |
| Output Voltage: |
16.5v - 23v |
20.8v - 26.4v |
10.8v - 17.2v |
| Output Current: |
50A - 180A |
20A - 180A |
20A - 180A |
| Duty Cycle @ 40°C: |
180A @ 15% |
180A @ 15% |
180A @ 15% |
| Wire Diameter: |
⌀ 0.8mm - 0.9mm |
| Wire Spool Size: |
0.7kg, 5kg |
| Welding Material Thickness: |
0.8mm - 6.4mm (mild steel) |
| Protection / Insulation |
21S / H |
| Net Weight: |
11.20kg |
| Gross Weight: |
12.70kg |
| Product Dimensions: |
300(H) x 180(W) x 420mm(D) |
| Packaged Dimensions: |
350(H) x 325(W) x 475mm(D) |
