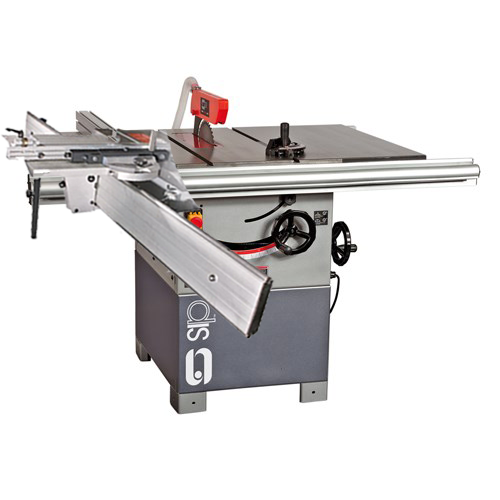

Sip Cast Iron 10" Table Saw and Sliding Carriage

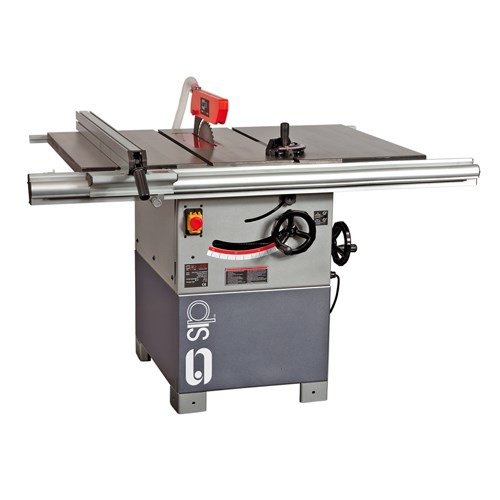

Table Saw:

Free adjustment for rise and fall saw blade with lock

45º adjustable blade with blade lock

Extension tables can be mounted one each side when sliding carriage is not fitted

Both extension tables can be fitted on one side when sliding carriage is fitted

'T' slotted cast mitre guide included

Motor:   3hp

Supply:   230v

Max. Depth of cut @ 45º:   53mm

Max. Depth of cut @ 90º:   75mm

Table Size: (WxD):  560 x 800mm

Table Size with Extensions:   1170 x 800mm

Blade Tilt:   45º to left

Blade Diameter:   254mm

Blade Bore:   25.4mm

Blade Speed:   3500rpm

Table Height:   845mm

Weight:   177Kg

Increases table saw capacity to cross-cut 4ft x 8ft sheet in one pass

Heavy duty construction

Quick release clamp

Micro adjustable cross-cut stop to 1 metre

Pre-set stops at 90º and 45º

Large cast table working area
