Sip Bench Morticer with Sliding Table 370w
€659.00
(Inc. VAT)
€535.77
(Ex. VAT)

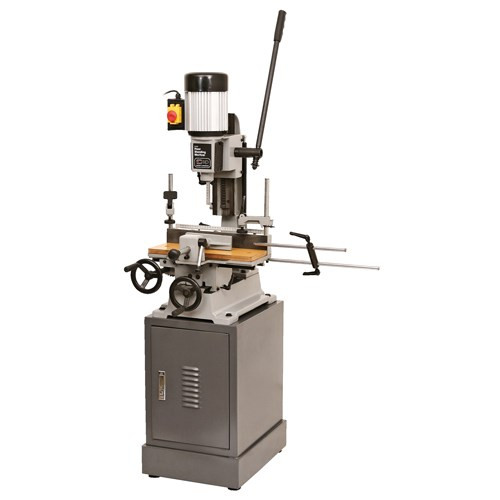

Sip Bench Morticer with Cabinet 750w
SIP
€1,319.00
(Inc. VAT)
€1,072.36
(Ex. VAT)
This Morticer is mounted on a sturdy cabinet stand. The head moves smoothly on a solid rack and dovetail column, with gib strips that can be adjusted for accuracy. Cast iron construction.
- 230v (13amp) supply
- 1400.0rpm maximum speed
- Powerful 750w (1.0hp) motor
- 210.0mm maximum chisel stroke
- 6.0 - 26.0mm (1/4" - 1") chisel capacity
- 145.0mm (longit.), 170.0mm (lat) movement
- Verical and sideways movement stops
- Solid cast iron table and work clamp
- 140.0mm maximum spindle to fence
- 400.0mm x 150.0mm full table size
- Adjustable gib strips for accuracy
- Ratchet rise and fall handle

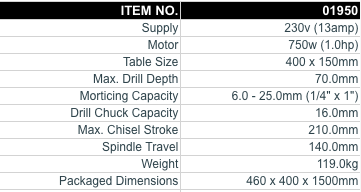

Specifications
- Chisel Capacity:
- 12.7mm (1/2")
- Chuck Capacity:
- 1/2"
- Max Morticing Depth:
- 76mm
- Max Clamping Height:
- 90mm
- Speed:
- 1400 r/min
- Table Size:
- 150 x 340mm
- Base Size:
- 190 x 255mm
- Fence to Chisel Centre:
- 84mm
- Weight:
- 27Kg
-
-
