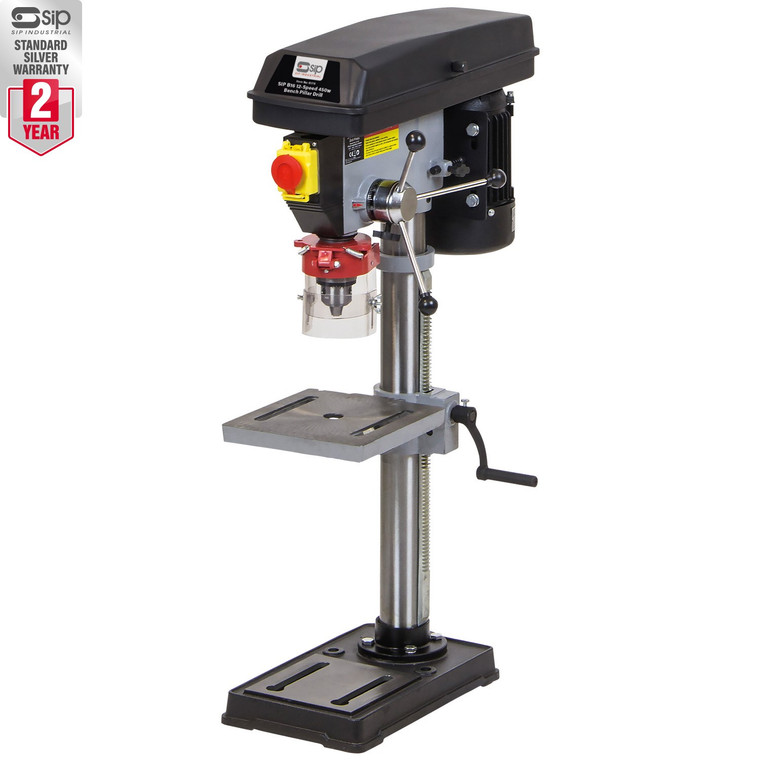

The SIP B16 12-Speed 450w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.
Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for home and small workshop applications with limited floor space.
Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind and general drilling applications, small bracketry, and home and small workshop metalwork and woodwork.
Supports a variety of drilling applications
Compatible with materials including ferrous and non-ferrous metals, hard and soft woods and high-density plastics.
Multi-speed functionality
Allows precise control of hole sizes across the drilling spectrum.
High-power brushless induction motor
Delivers powerful performance for consistent high-quality drilling.
Intuitive features for ease-of-use
Adjustable drilling table and three-lever handle ensures smooth drilling force.
Fitted with drilling depth stop
Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.
Safety interlock switch
Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.
ITEM NO. |
01711 |
Input Voltage: |
230v (13A) |
Motor Power: |
450w |
No. of Speeds: |
12 speeds |
Speed Range: |
300rpm - 2550rpm |
Drill Bit Size: |
3mm - 16mm |
Spindle Taper: |
B16 |
Table Size: |
195mm x 200mm |
Base Size: |
340mm x 205mm |
Column Diameter: |
Ø 58mm |
Swing: |
260mm |
Height: |
840mm |
Spindle Travel: |
60mm |
Collar Diameter: |
Ø 58mm |
Max. Distance: |
350mm (chuck to table) 470mm (chuck to base) |
Net Weight: |
28.00kg |
Gross Weight: |
29.60kg |
Product Dimensions: |
840(H) x 200(W) x 340mm(D) |
Packaged Dimensions: |
260(H) x 665(W) x 410mm(D) |
