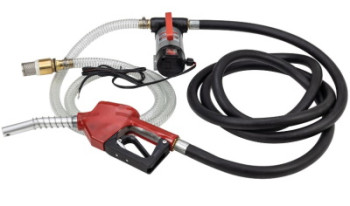

A 12v DC electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality and long-lasting fuel dispenser comes complete with 10mtr pumping head and 2mtr suction head for versatility and speed-of-use.
Ideal for refuelling vehicles, fleets, and other industrial machinery.
KEY FEATURES
- Compact and lightweight design for portability
- Powerful 160w DC motor with copper-wound armatures
- High-quality aluminium nozzle ensures strength and durability
- Supplied with non-return valve to aid self-priming
- Built-in bypass system for start and stop operation
| Input Voltage: |
12v DC |
| Motor Power: |
160w |
| Max. Pumping Head: |
10mtr |
| Max. Flow Rate: |
40ltr/min |
| Speed: |
3200rpm |
| Max. Working Pressure: |
15psi (1bar) |
| Duty Cycle: |
30min |
| Connection: |
3/4" BSP |
| Protection: |
IPX4 |
| Net Weight: |
7.15kg |
| Gross Weight: |
8.05kg |
| Product Dimensions: |
202(H) x 105(W) x 140mm(D) |
| Packaged Dimensions: |
435(H) x 320(W) x 210mm(D) |
