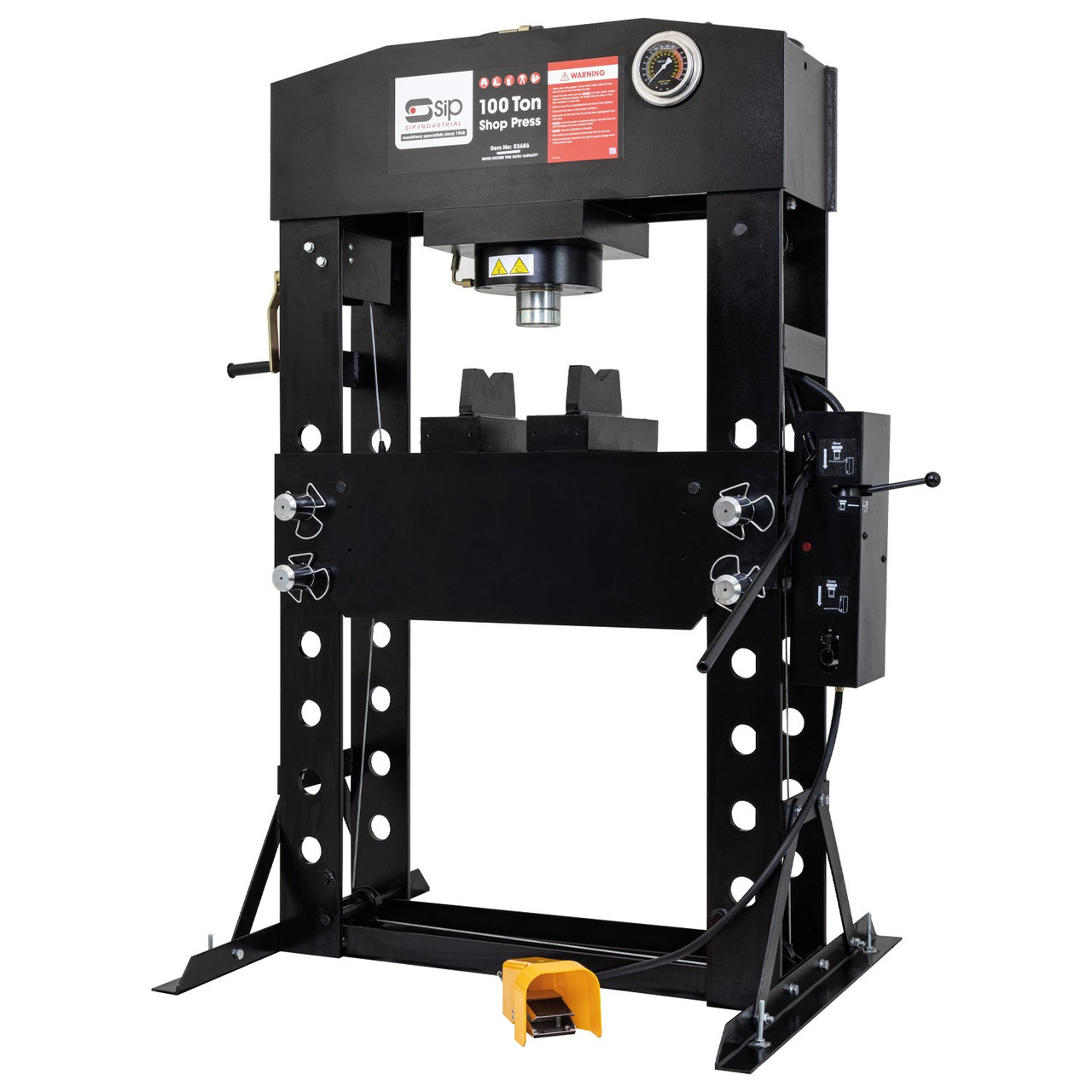

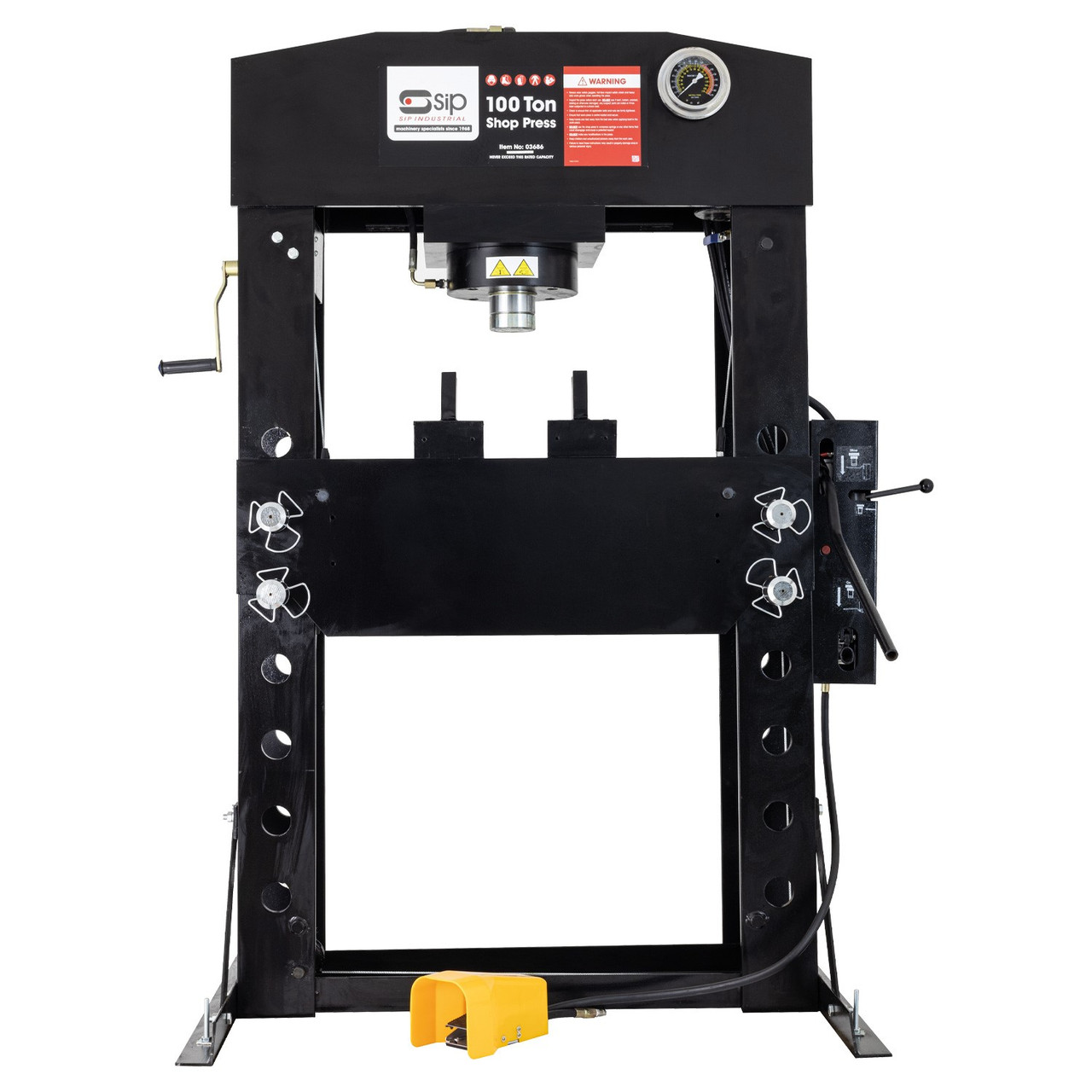

SIP 100 TON Shop Floor Press

€7,769.00 (Inc. VAT)

€6,316.26 (Ex. VAT)

The SIP 100 TON Shop Press is free-standing pneumatic-operated press perfect for efficient and easy removal and installation of bearings, wrist pins, universal joints, and pulleys, plus bending, bonding, and straightening applications. A heavy-duty steel frame adds durability.

100 TON floor-standing manually-operated press
93mm to 993mm work range and a 300mm ram stroke
Heavy-duty steel frame for added durability and life
Fully adjustable workbed for improved versatility
Easy bearing, wrist pin, universal joint, and pulley removal or installation
Ideal for bending, bonding, and straightening

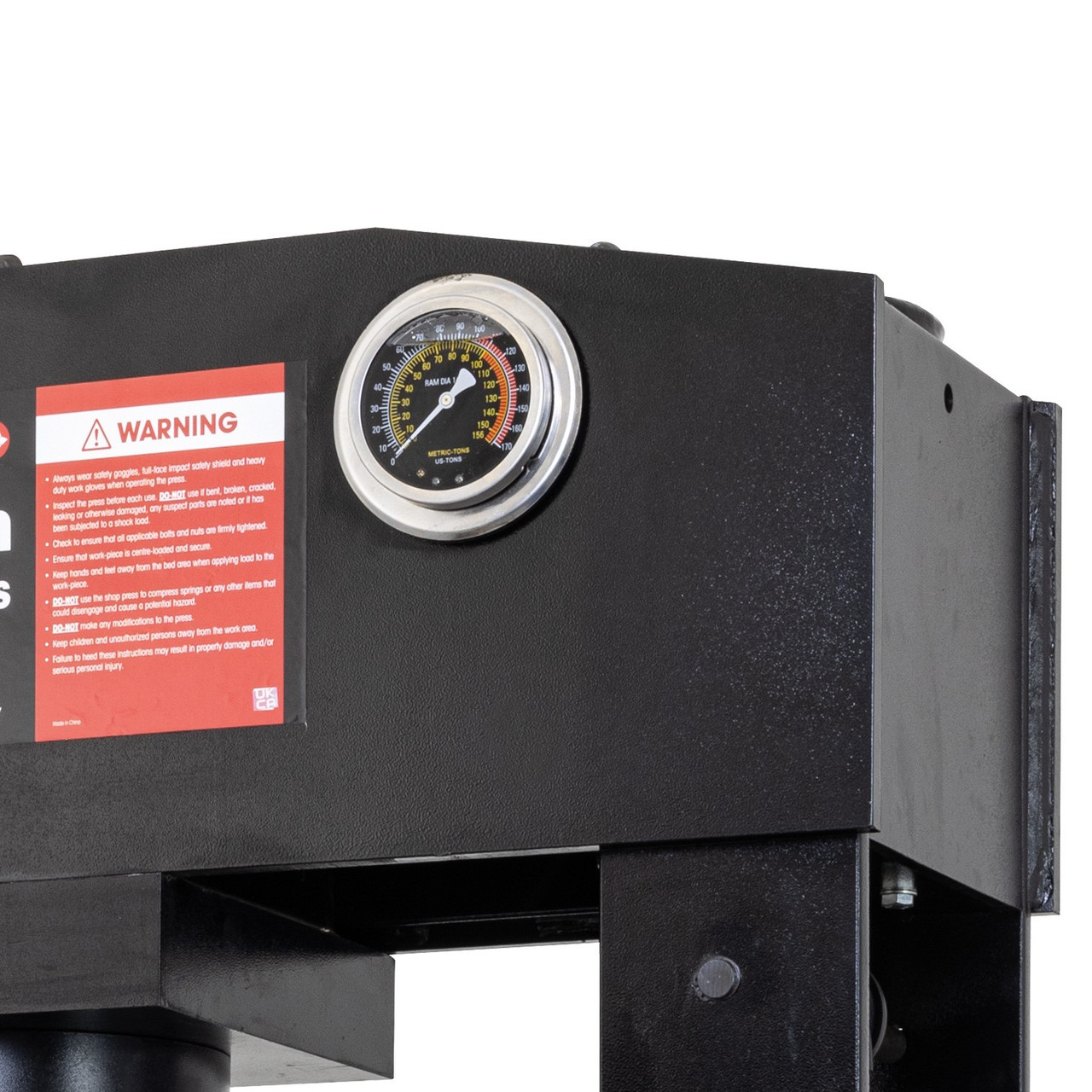

Integrated Glycerine-filled manometer

Technical Information

ITEM NO.	03686
Press Capacity:	100 TON
Press Type:	FLOOR
Press Operation:	Pneumatic
Working Range:	93mm - 993mm
Max. Air Pressure:	108psi (7.5bar) - 123psi (8.5bar)
Air Inlet:	1/4" NPT
Ram Stroke:	300mm
Bed Width:	787mm
Net Weight:	662.00kg
Gross Weight:	701.29kg
Product Dimensions:	1850(H) x 1000(W) x 1250mm(D)
Packaged Dimensions:	2030(H) x 420(W) x 1150mm(D)
