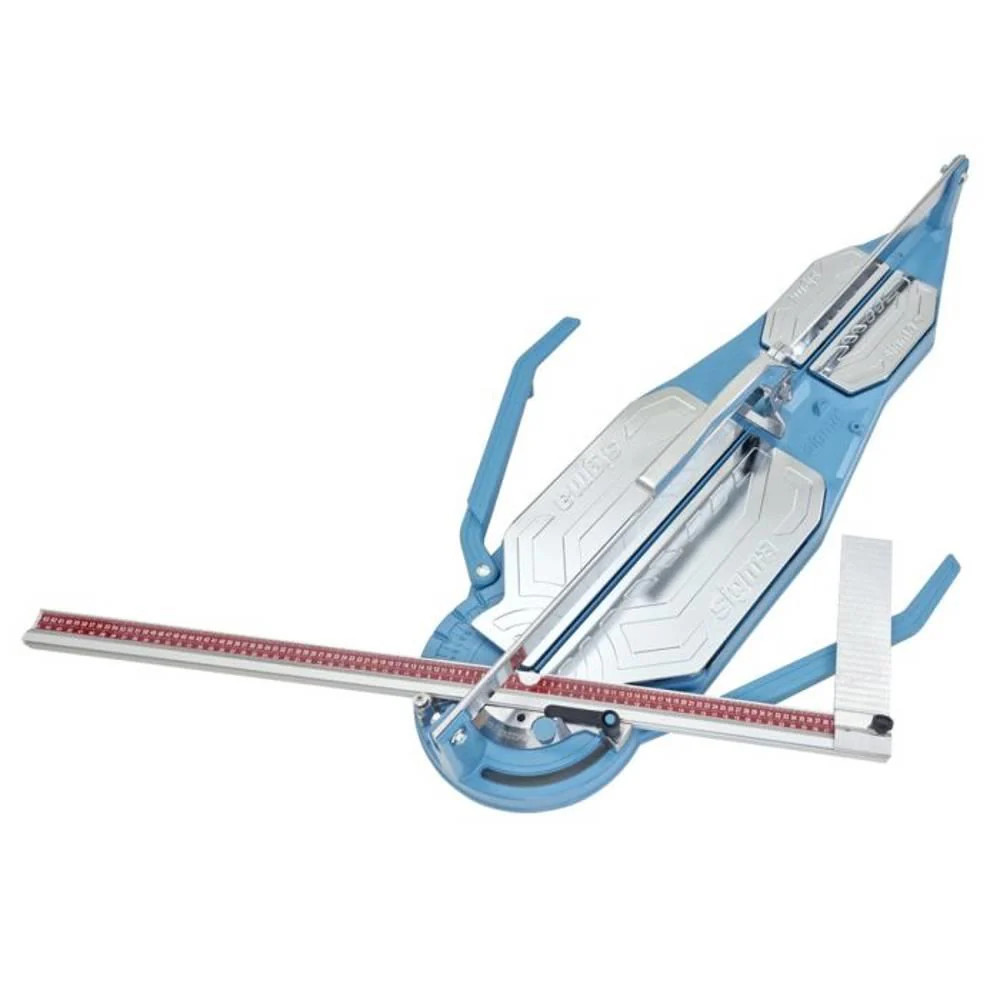

Sigma 4CU 84cm Professional Tile Cutter

Series 4 “UP” Pulling Incision Features:

• The "UP" handle on this machine is designed for pulling incisions that are quick and easy for cutting tiles.
• An ergonomically shaped handle specific for pulling incision.
• The scoring wheel diameter of 12mm is always visible from the operator's side. It also features a CNC milled wheel holder and an anti-friction metal shell to eliminate friction and lateral wear on the scoring wheel. Scoring wheel is also available in TIN coated version. (Art.14UT)
• The sliding carriage is wear-free, thanks to 3 double-row ball bearings that guarantee long-term precision.
• Automatic steel compensator for adjusting the slide preload on the rail. There is also an automatic system that holds the handle up to facilitate the insertion of the tile.
• A wide splitting foot of 100mm.
• Interchangeable anti-mark protection protects the basement from impact during the scoring.
• The handle is mounted to the slide carriage with two thrust ball bearings for maximum precision.
• Most spare parts available.

Features:

• Ergonomic handles with full ball bearing slide.
• Extremely robust sliding guides for a perfectly straight cut over time.
• Cutting all thicknesses without adjustment.
• Robust Structure - Aluminium structure, obtained from a single casting for maximum strength and lightness.
• Metric Bar - The metric bar is pivoted in the centre of the cutting line, swivelling +45° 0° -45° and always close to the operator.
• Cutting angle adjustment button - Adjustable button for quick positioning of the metric bar at the most commonly used angles
• Diagonal measurement patented system - The metric ruler allows measurement of the side and diagonal.
• Cutting line lighting - Provision for mounting Positioning Laser
• Reduced dimension - Space is reduced during transport by positioning the metric bar along the base.
• Sprung supports - The sprung supports can be opened freely for perfect support of large tiles.
• Scoring wheel compartment - Container for scoring wheel replacement.
• Steel pin – Metric bar pivoted in centre on steel pin
• Front measurement - Allows measuring on both right and left (410 - 0 - 410 mm) for narrow and long tile cuts.

• Max straight cutting length: 840mm
• Max diagonal cutting length: 594x594mm
• Weight: 12.3kg
