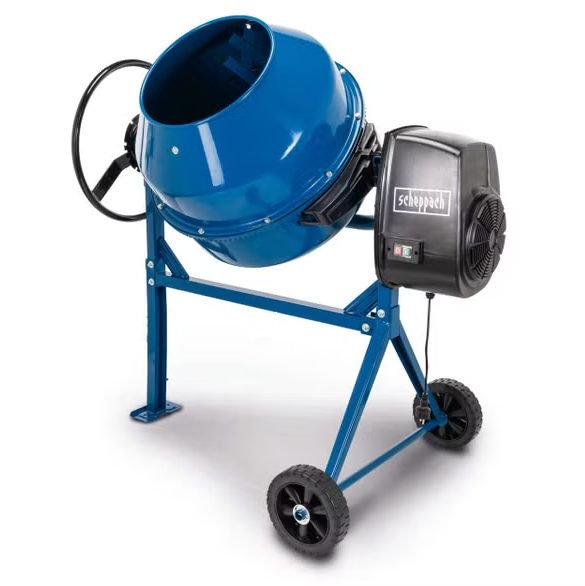

Scheppach MIX160 160 Litre Cement Mixer

×
×
Price:
€379.00 (inc VAT) €308.13 (exc VAT)
  • Product Description

    Description

    Scheppach´s MIX160 concrete mixer is designed for building site durability, offering that bigger output of perfectly mixed concrete. It has all the design features necessary for the general builder.

    • Welded bottom drum provides better strength
    • 160 L large capacity drum
    • Wheels for mobility
    • Large drum wheel for easy emptying
    • Labyrinth housing to prevent water splashing and dual fans for better cooling
    • Durable and robust – ideal for professional use
    • Cast iron gears (fully enclosed)
    • Adjustable spring tensions
    • Easy to maintain



    Basic data concrete mixer


    distance between the wheels:

    708.0 mm

    drum volume:

    160.0 l

    drum opening:

    390.0 mm

    drum speed max:

    29.5 1/min

    hand wheel diameter:

    538.0 mm

    max. drum volume:

    114.0 kg

    wheel diameter:

    230.0 mm

    gear specification (transmission ratio):

    1:10



    Dimension general


    machine height:

    1295.0 mm

    machine length:

    1200.0 mm

    machine width:

    845.0 mm


    Drive electro


    motor speed max:

    2750.0 1/min

    nominal current:

    2.94 A

    power consumption in operating mode 1:

    650.0 W

    frequency:

    50 Hz

    motor protection:

    yes

    type of motor electro:

    Induction motor

    voltage:

    230 V



    Emission normal


    sound power level Lw(A):

    92.8 dB

    sound pressure level Lp(A):

    90.01 dB

    uncertainty KpA:

    1.3 dB

    uncertainty KwA:

    1.3 dB


    Power connection


    protection class :

    IP X0

    plug type:

    Stecker-Typ C Konturenstecker


    delivery content


    delivery content text:

    1. Supporting stand, front 2. Motor casing 3. Frame 4. Swivel wheel 5. Drum upper section 6. Bearing bracket 7. Drum lower section 8. Instructions 9. Mixer 10. Bag provided (Fig. 2 Content) 11. Supporting stand, rear with wheel axle 12. 2 wheels 13. Locking washer 14. Operating rod 15. Extension 16. Locking plate

  • Related Products

  • Find Similar Products by Category

  • Other Details

    Dimensions (L x W x H): 1210 x 840 x 1280mm
    Drum Capacity: 140 Litre
    Drum Speed Max: 26.6rpm
    Input: 550W
    Motor: 230V
×
×
