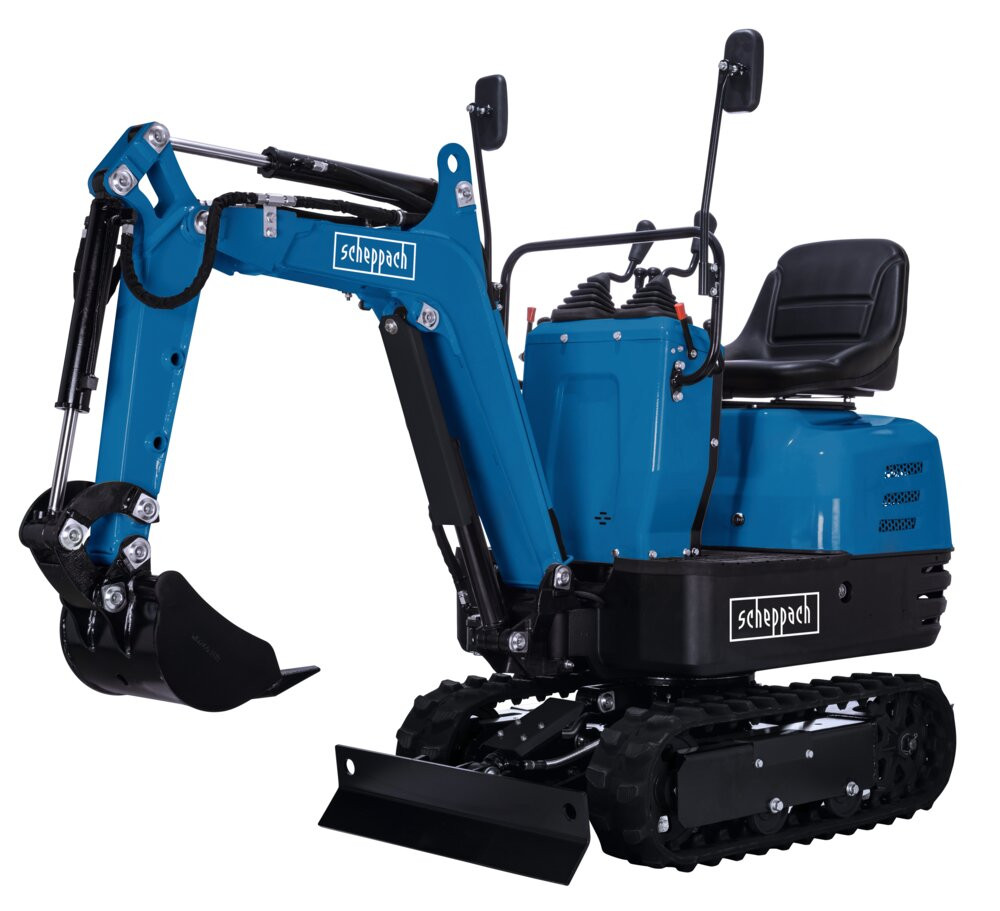

Scheppach EXC815 Mini Excavator

Powerful and compact: The Scheppach EXC815 Mini Excavator – an all-round talent for construction sites and garden design

With an operating weight of 563.5 kg, the Scheppach EXC815 Mini Excavator is a powerful all-round talent for digging on a construction site, excavating foundations or garden design projects.

Thanks to its compact design and a track width of 690 mm, the Mini Excavator will easily fit through tight areas on a construction site or narrow passages. Equipped with a high-performance 8.5 horsepower/6.3 kW 306 cc 4-stroke petrol engine and precise hydraulics, the excavator allows targeted operation even in challenging environments. Using a convenient e-starter, the mini excavator can be activated very easily.

Thanks to the extensive digging reach of max. 2,330 mm, work can also be carried out on slopes or inclines. With a digging depth of 1,200 mm and a loading height of 1,350 mm, the EXC815 has many applications. With a bucket digging force of 8.8 kN and boom digging force of 4.2 kN, the excavator is the right choice even for demanding construction sites. The boom can be angled from -70° to +70°, thus ensuring a comprehensive reach.

The large levelling blade that can be lowered is perfect to support the boom or to move soil. With a maximum climbing ability of 15°, the excavator easily copes with uneven terrain and slopes. The powerful 26.5 kPa ground contact pressure ensures maximum sturdiness, even in tough terrain.

At a width of 150 mm, the rubber tracks of the EXC815 represent a stable footprint and can be controlled individually. This allows uniform movement on different terrain. A forward speed of 1.7 km/h ensures quick progress.

Practical LED lights on the boom provide ideal visibility, even in poor lighting conditions. The mini excavator is equipped with a 290 mm wide bucket with 0.011 m³ capacity as standard.

Special features

• Mini excavator with a weight of 563.5 kg and a compact design for various excavation tasks
• Powerful 8.5 hp / 6.3 W 4-stroke gasoline engine with 306cc
• Rotation speed: 9.3 min/1
• Rotation range: 360
• Boom swing range: +/- 70°
• Boom digging force: 4.2 kN
• Bucket digging force: 8.8 kN
• Loading height: maximum 1350 mm
• Unloading height: maximum 2100 mm
• Digging depth: maximum 1200 mm
• Reach: max 2330 mm
• Width of 690 mm - ideal for narrow passages and reaching hard-to-reach areas
• Large, lowerable soil skid to support the boom or move soil
• Chain drive: rubber chains with a width of 150 mm, individually adjustable
• Travel speed: up to 1.7 km/h
• Equipped as standard with a 290 mm wide bucket with a capacity of 0.011 m³
• Electric start for easy starting of the excavator
• Climbing capacity of up to 15° (gradient)
• 26.5 kPa ground contact pressure - for maximum stability
• LED headlights on the boom for optimum visibility
• Easy maintenance
• Easy transport to site using a trailer or transport truck
