    Scheppach DC500 Dust Extraction System

    ×
    ×
    Price:
    €299.00 (inc VAT) €243.09 (exc VAT)
    Shipping:
    Calculated at checkout
    Quantity:

    • Product Description

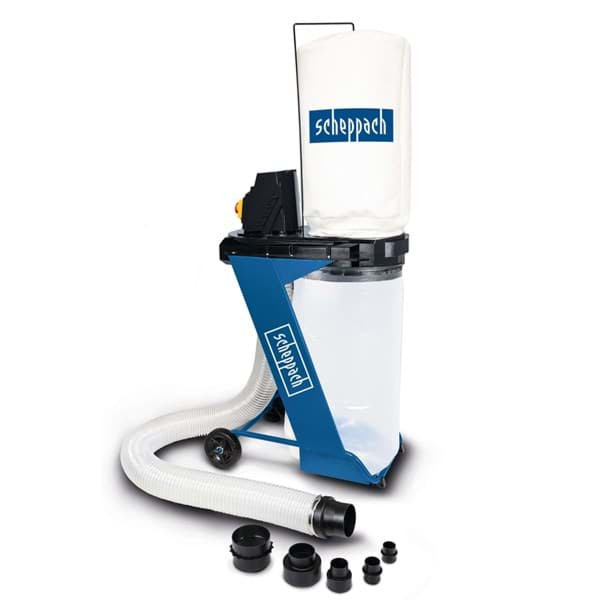

      100 mm hose diameter and a 4-piece adapter set ensure that the DC500 extraction system from scheppach can be connected to many different machines and reliably transports large quantities of chips into the 75 liter collection bag with a suction capacity of 1150 m3/h. This keeps the workshop almost dust-free when sawing, grinding and planing.

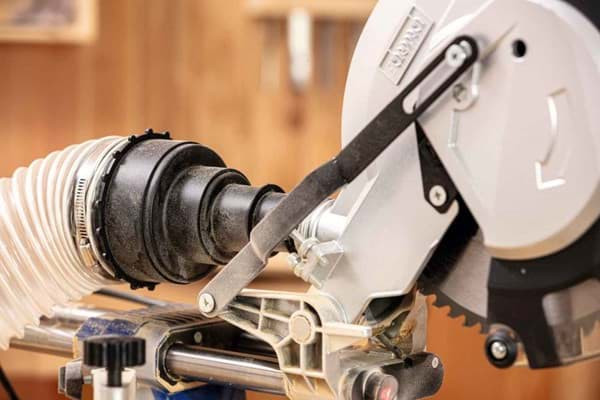

      • Flexible 2 meter suction hose with 100 mm hose connection
      • incl. 4-piece adapter set for all small devices
      • Stable metal construction with bracket for hanging the filter bag
      • 75 liter collection bag for long emptying cycles
      • Suitable for large quantities of dust and chips
      • Easy to transport thanks to driving device

      Anyone who works with wood in his workshop knows the problem: Sawing, grinding or planing creates fine dust that not only pollutes the work surface, but also burdens the room air and health. The DC500 extraction system from scheppach reliably sucks chips and dust and thus ensures an unclouded view of the workpiece. Continuous suction extends the machine running time and also significantly reduces the health risks. And this also keeps the workshop clean.

      The powerful 550 W motor of the DC500 extraction system provides sufficient power to keep the hobby workshop free of dust and sawdust generated when working with band saws, table milling machines and scroll saws.

      Thanks to a suction power of 1150 m3/h, the DC500 constantly and reliably absorbs dust, sawdust and wood chips. The 75 liter collection bag is also suitable for large quantities of chips and rarely needs to be emptied.

      With the help of the extraction system, not only does the view of the workpiece remain permanently unclouded and the workplace always pleasantly clean, but also the respiratory tract is less stressed. The polluted air is quickly cleaned thanks to a filter area of 1 m2 and a hose diameter of 100 mm.

      The suction hose with a length of 2 meters is also long enough not to have to constantly reposition the extraction system.

      Thanks to the practical driving device, the extraction system is also particularly easy to transport and can therefore be used flexibly. The included 4-piece adapter set allows connection to a wide variety of small devices.

      Model description DC500
      machine length 650.0
      machine width 446.0
      machine height 1430.0
      suction hose length 2.0
      hose diameter 100.0
      filter surface 1.0
      Air output 1150.0
      maximum filling quantity 75.0
      Inner diameter of the suction nozzle 90.0
      Outer diameter of the suction nozzle 96.0
