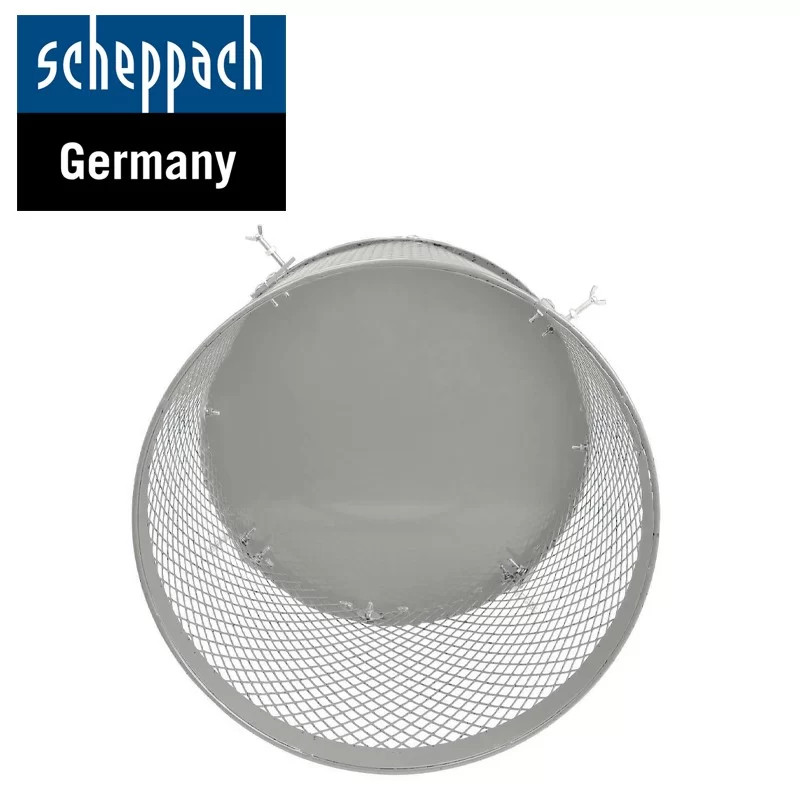

Scheppach 7908401703 Drum Sieve

Turn your concrete mixer into a practical garden roll screen with this professional screening drum.
Due to the suitable dimensions of 46 cm diameter and the universal retaining plates, the screen drum is suitable for the majority of concrete mixers available on the market with crimped edges.
This sieve drum is the ideal helper for professional sieving of compost and soil.

Technical data:

• Hole dimensions: 15 x 24 mm
• Dimensions Ø x H: 46 x 46 cm
• Weight: 5.5 kg
• Color: silver
• Scope of delivery:
• Screen drum
• Screw bags: 8 Lens head screws M6 x 30
• 8 Washer M6
• 8 Spring ring M6
• 8 Hex nut M6 4 retaining plates
• 4 M8 hex nuts
• 4 wing screws M8 x 60 4 cap nuts M8
• 4 Lens head screws M6 x 20
• 4 Washers M6
• 4 Spring ring M6
• 4 M6 hex nuts

Suitable e.g. for the following concrete mixers:

• SCHEPPACH MIX 125
• SCHEPPACH MIX 140
• SCHEPPACH MIX 160
• SCHEPPACH MIX 180
• SCHEPPACH MIX 200

*Images are for illustrative purposes only. Cement mixer not included*
