Overview

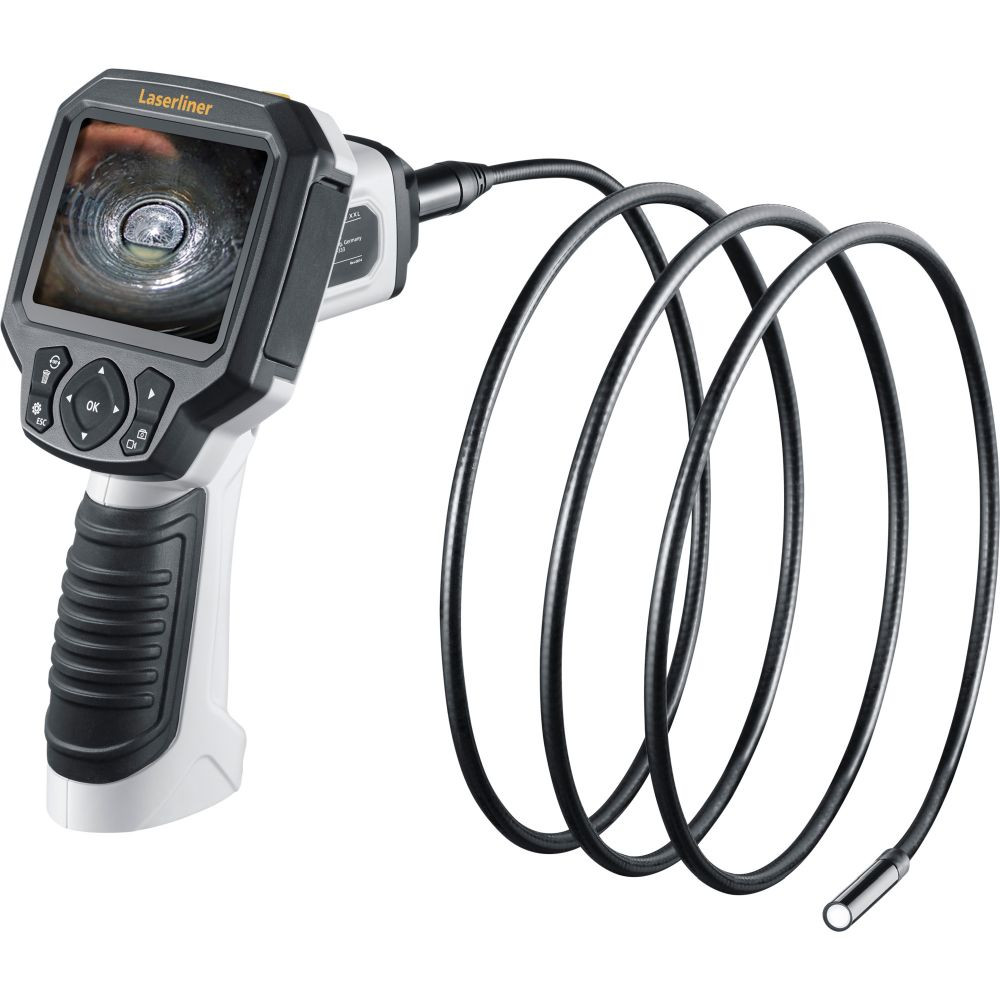

The compact video inspection system is suitable for easy checking of hard-to-reach places in pipes, cavities, shafts, masonry and motor vehicles. The small, waterproof camera head and the long, flexible cable ensure the device is suitable for a wide range of applications over long distances. Illumination with four high-performance LEDs provides clear pictures, even in extremely poor light. Rotation and mirroring ensure the image is always appropriately displayed on the monitor. The device has its own internal memory and an SDHC formatting function for direct transfer of videos and images to a PC.
Features
- Easy problem localisation behind or in objects, walls, pipes, cavities
- Small camera head, ideal for places that are hard to reach
- Clear images even under the worst conditions
- Good object lighting due to 4 high-performance LEDs
- Extremely long flexible cable for use over very long distances
- Waterproof camera head and cable for use in sanitary areas
- Resistant to petrol and diesel
- Image clearly discernible through rotation and mirroring
- Easy-to-read LC display
Specifications
Live display |
✅ |
Image/video recording |
✅ |
Image/video playback |
✅ |
Digital zoom |
✅ |
Object illumination |
✅ |
Time stamp |
✅ |
Image alignment |
✅ |
External image/video output |
✅ |
Data transfer |
✅ |
Diameter camera head |
9 mm |
Number of LED lights |
4 |
Field of view (fov) |
53° |
Depth of focus (DOF) |
1 … 6 cm |
Length of probe |
5 m |
Screen type |
3,5" TFT-Farbdisplay |
Ports |
Micro-SD RCA video output |
Memory |
Supports up to max. 8 GB SDHC card |
Port |
USB |
Protection class |
Base unit: IP 54, dust and splash proofing Camera probe: IP 68 (immersion depth 1.5 m, 60 min.) |
Power source |
4 x 1.5V LR6 (AA) |
Operating time |
approx. 4 hours |
Temperature (working conditions) |
0°C … 45°C |
Inclusive:
- VideoScope XXL 5 m
- USB cable
- 4 GB micro SD card
- batteries
