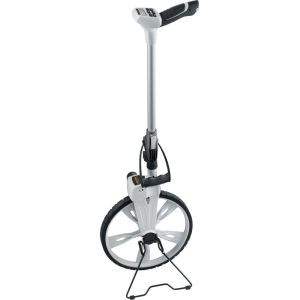

Description: This reliable roller distance measuring device is designed for use in straight lines and curves. The measuring wheel is accurate to the nearest centimetre up to 9,999.9 metres. Measured values are shown on the easy-to-read display. A movable indicator provides information on the exact start and final position. Rolling the wheel forwards adds to the measured values while rolling it backwards subtracts. The device has a hold function for locking the current value on the display. Five entries can be stored in the measured value log for documentation purposes. Easy to transport due to folding design.
- Measuring wheel for use in straight lines and curves

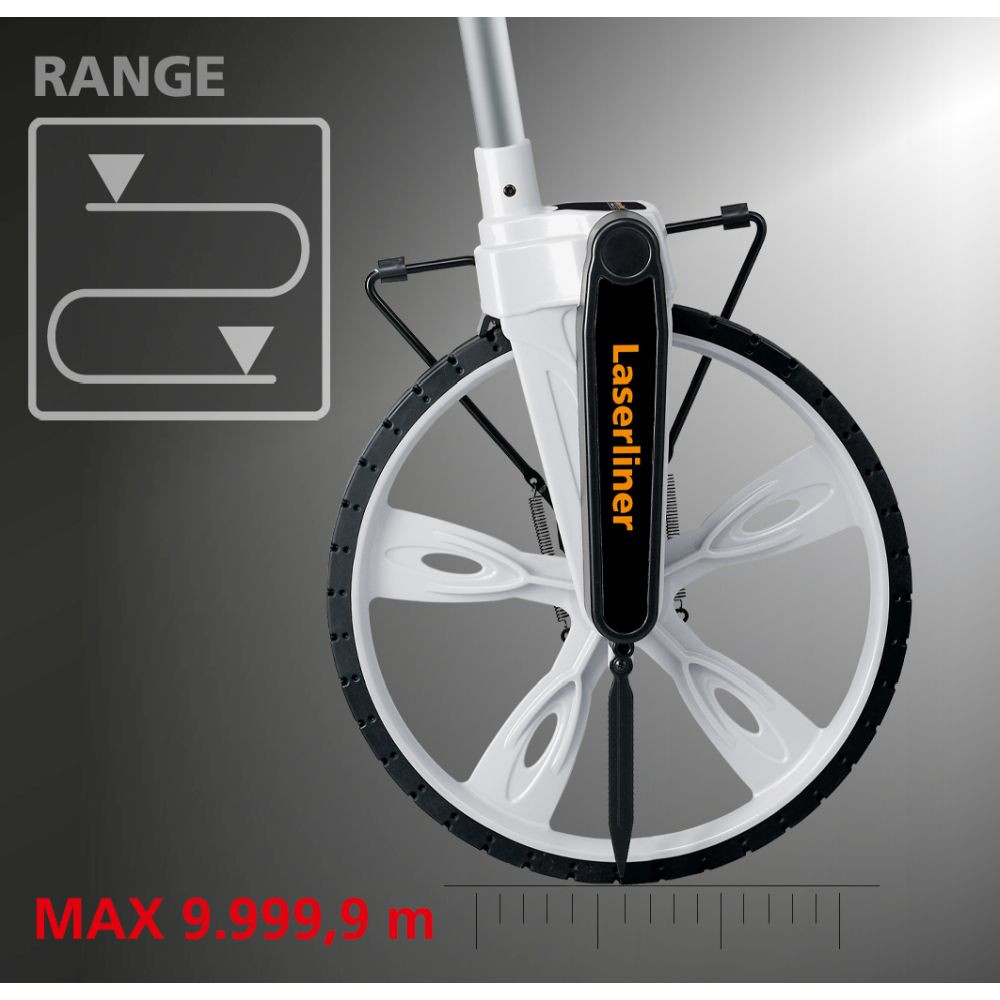

- Accurate measurements up to 9.999,9 m

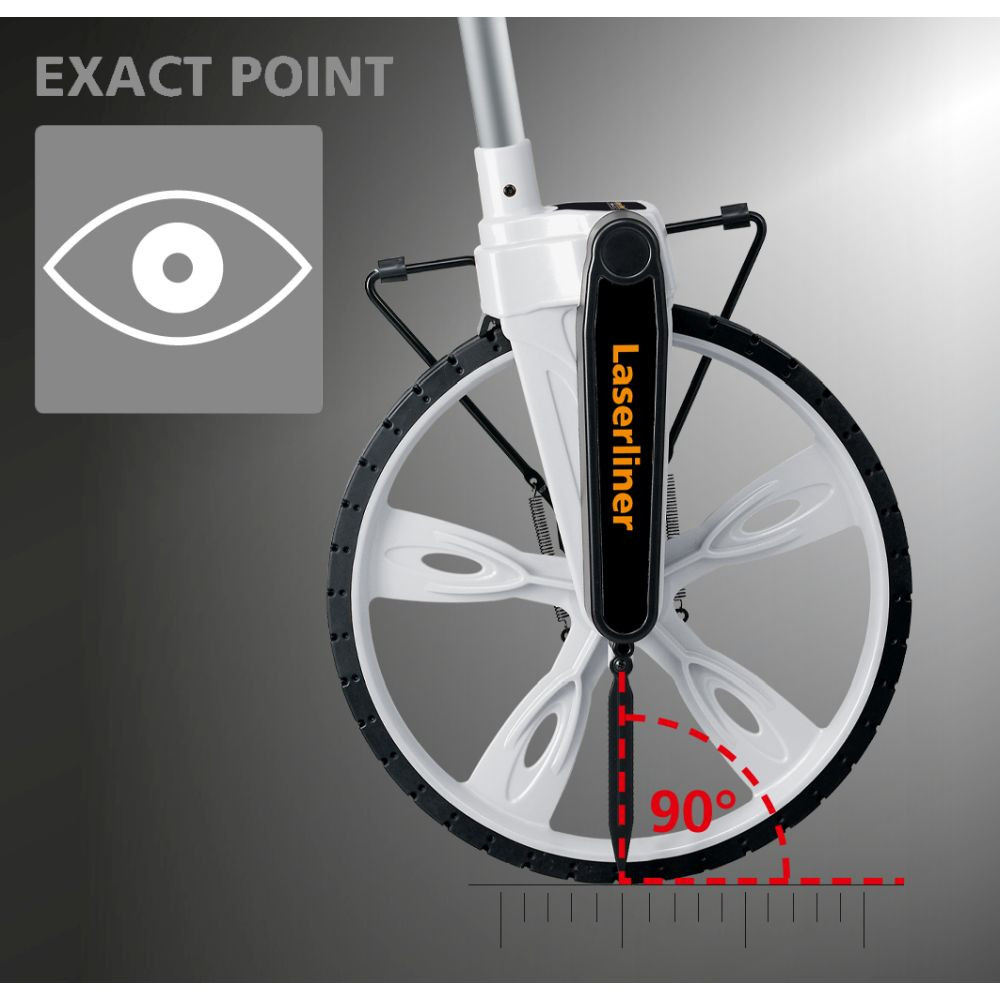

- Precise start and end position with moving pointer
- Hold function for locking the current measured value on the display

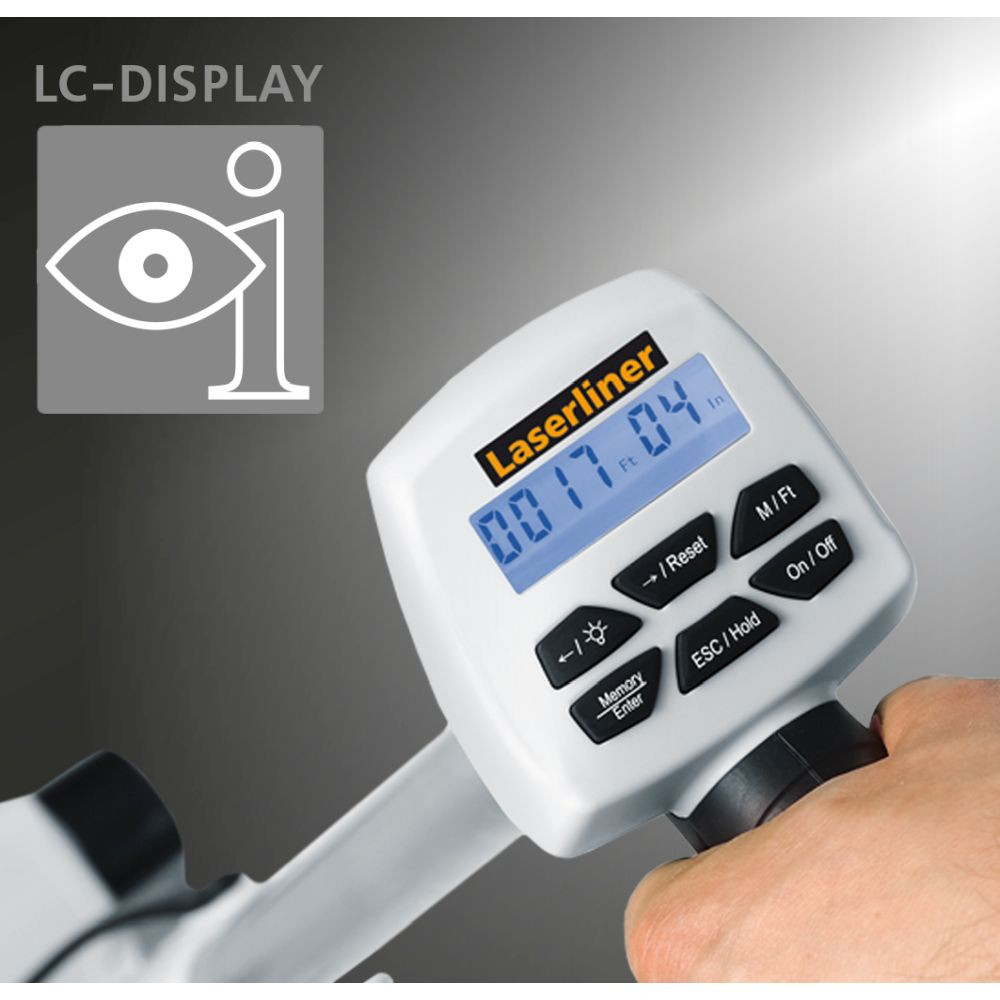

- Easy-to-read display
- Memory function for saving the measured values

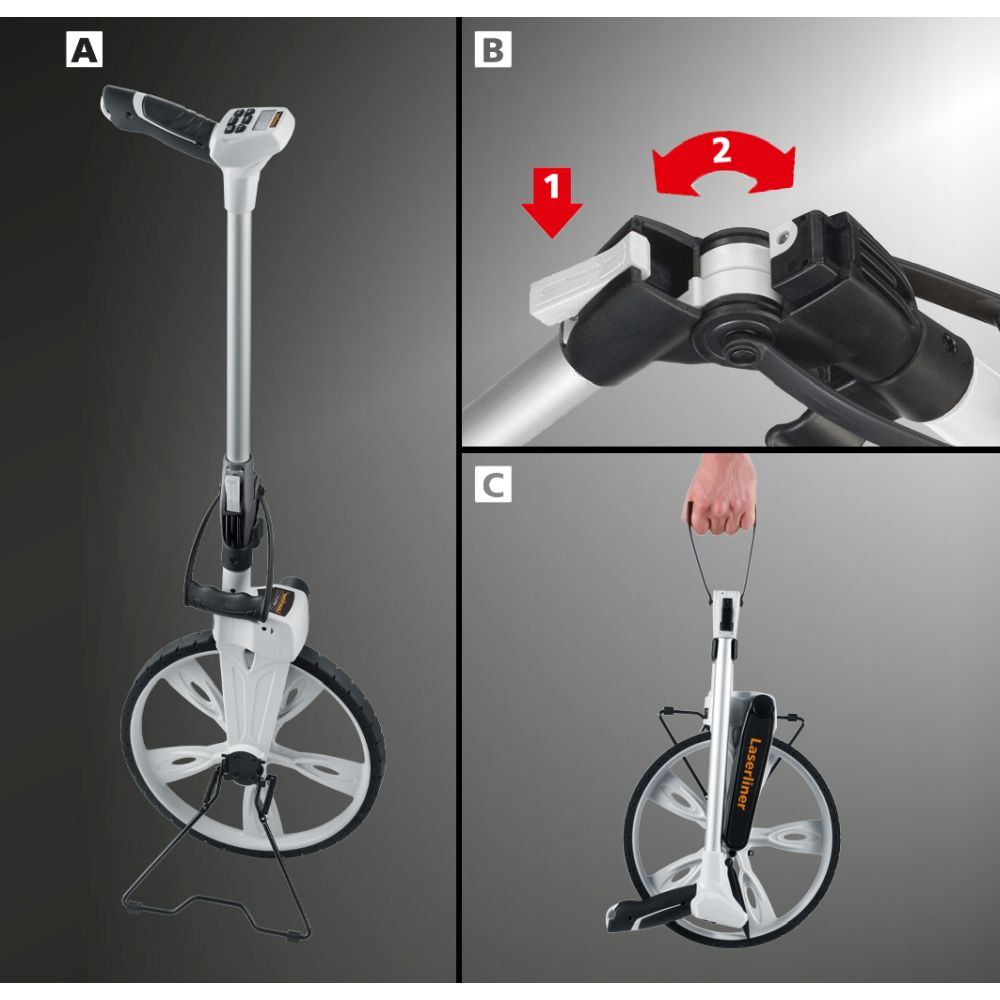

- Folding design for easy transport

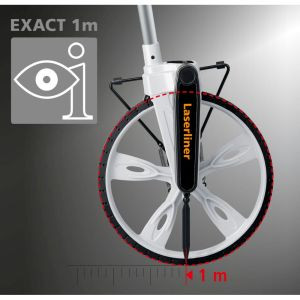

- Mechanical metering wheel with 1-metre circumference
Distance |
✅ |
Measuring point display |
✅ |
Set to park |
✅ |
Hold/storage |
✅ |
Precision (Typical)* |
± 1 mm/m |
Accuracy |
± 0.1% |
Range |
0 – 9.999,99 m |
Measuring Wheel Radius |
159 mm |
Measuring Wheel Circumference |
1000 mm |
Memory |
5 storage locations |
Units |
ft m |
Power Supply |

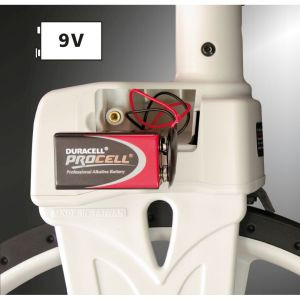

1 x 9V 6LR61 (9V block) |
Operating Conditions |
0°C … 40°C, #, # |
Dimensions (W x H x D) |
318 mm x 1000 mm x 140 mm |
Weight |
2100 g (inkl. Batterie) |
Scope of delivery:
- RollPilot D12
- battery
- softbag
