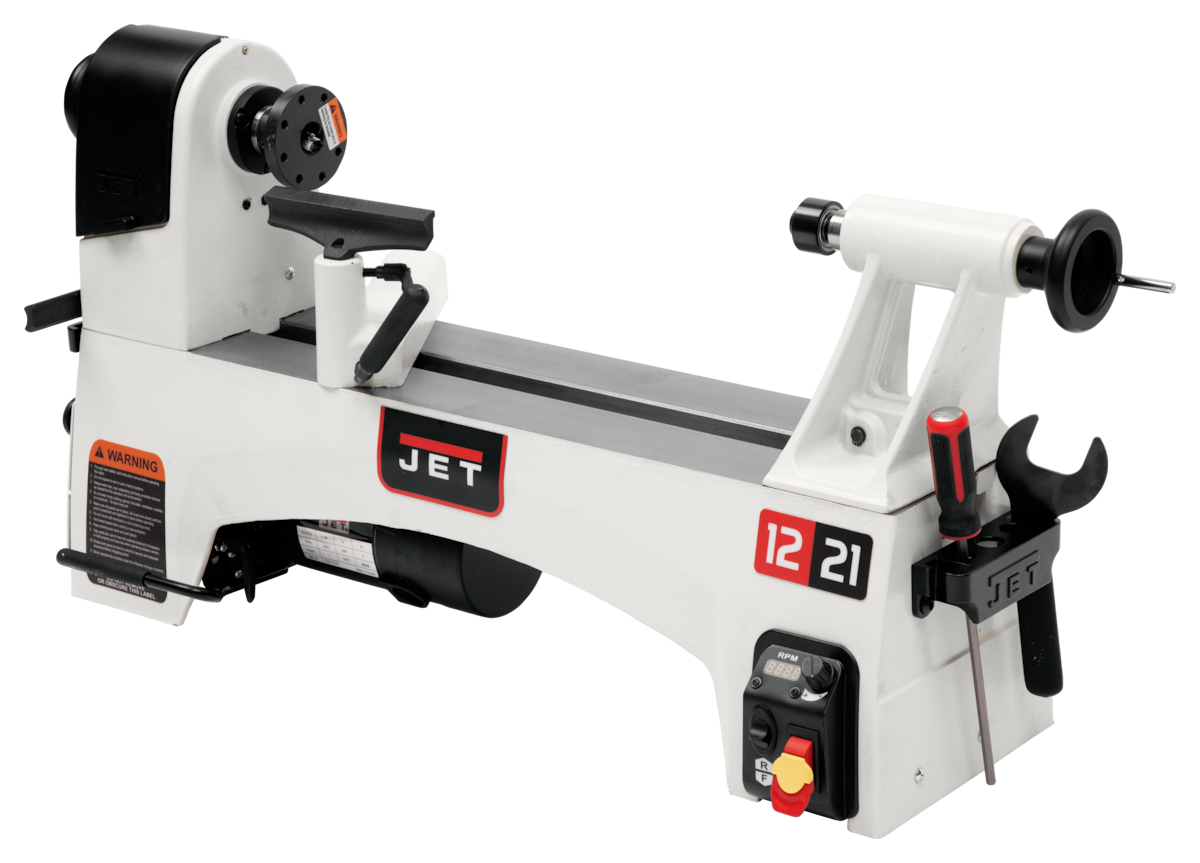

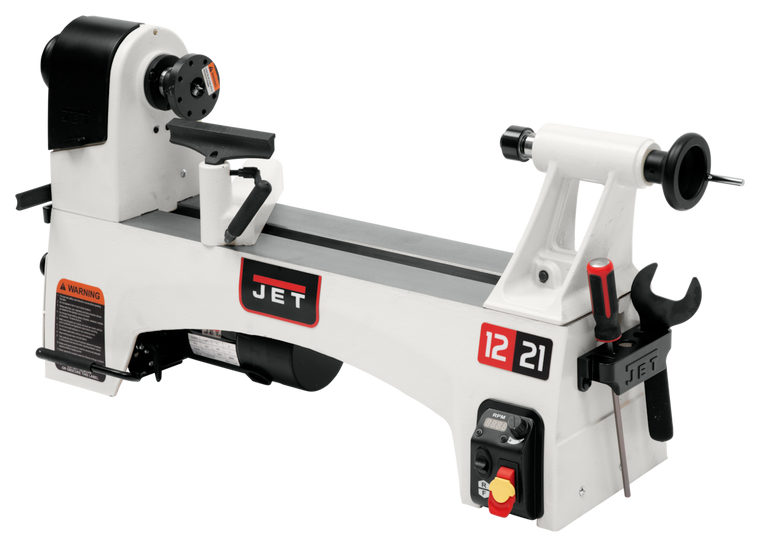

Jet JWL-1221VS 12'' x 21'' Variable Speed Wood Lathe

Jet JWL-1221VS 12'' x 21'' Variable Speed Wood Lathe

€1,549.00 (Inc. VAT)
€1,259.35 (Ex. VAT)
Current Stock:
Description

The JET 1221VS is different from anything we’ve made before. In truth, it’s different from anything that anybody has ever made before. The design is better. The features are better. The entire turning experience is better. And it all focuses on one concept… Control.

FEATURES

  • 24 integrated indexing positions
  • Acme thread in Tailstock
  • Conveniently located controls and DRO
  • Forward to reverse is a smooth transition
  • Innovative ratchet style belt tension system (patent pending)
  • Integrated, spring loaded spindle lock
  • Optimally designed speed ranges
  • Patent Pending
  • Unrivaled speed control

SPECIFICATIONS

  • Swing Over Bed - 318mm
  • Swing over tool rest base - 240mm
  • Centre distance - 500mm

  • Number of mechanical speeds - 3

    Spindle speed range L - 60 - 900 rpm

    Spindle speed range M - 110 - 1800 rpm

    Spindle speed range H - 220 - 3600 rpm

  • Spindle nose - M33x3,5 DIN 800
  • Headstock spindle taper - MT 2
  • Spindle indexing - 24x15°
  • Spindle hole diameter - 9,5mm
  • Spindle indexing - 24x15°
  • Tailstock spindle taper - MT 2
  • Tailstock hole diameter - 9,5mm
  • Tailstock ram travel - 57mm
  • Centre above workbench - 375mm
  • Overall (LxWxH) - 853x280x450mm
  • Net weight - 55 kg
  • Mains - 1~230V, PE, 50Hz
  • Motor power - 0,73kW (1 HP)
  • Reference current - 3,2 A
  • Extension cord (H07RN-F): 3x1,5mm2
  • Installation fuse protection - 10A
  • Isolation class - I

  • Acoustic pressure level (EN ISO 11202):
    Idling -     LpA 67,4 dB(A)

    In operation - LpA 76,5 dB(A)
