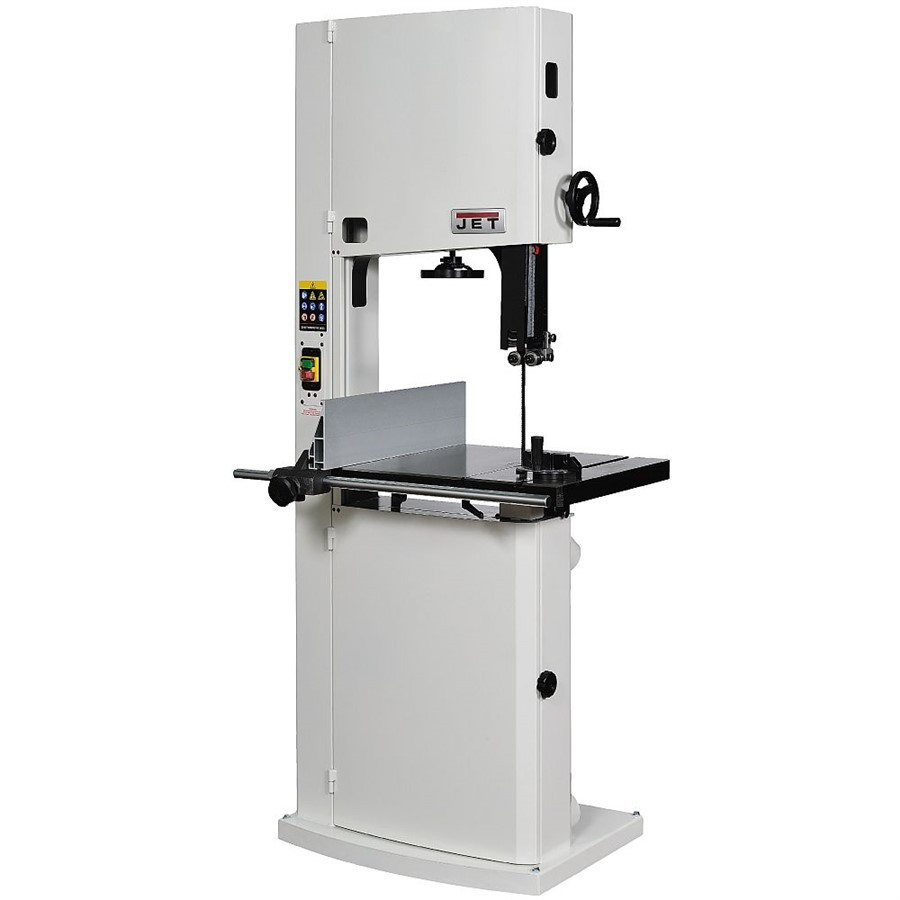

Jet JWBS-18-T 470mm Bandsaw (400V-3Phase)

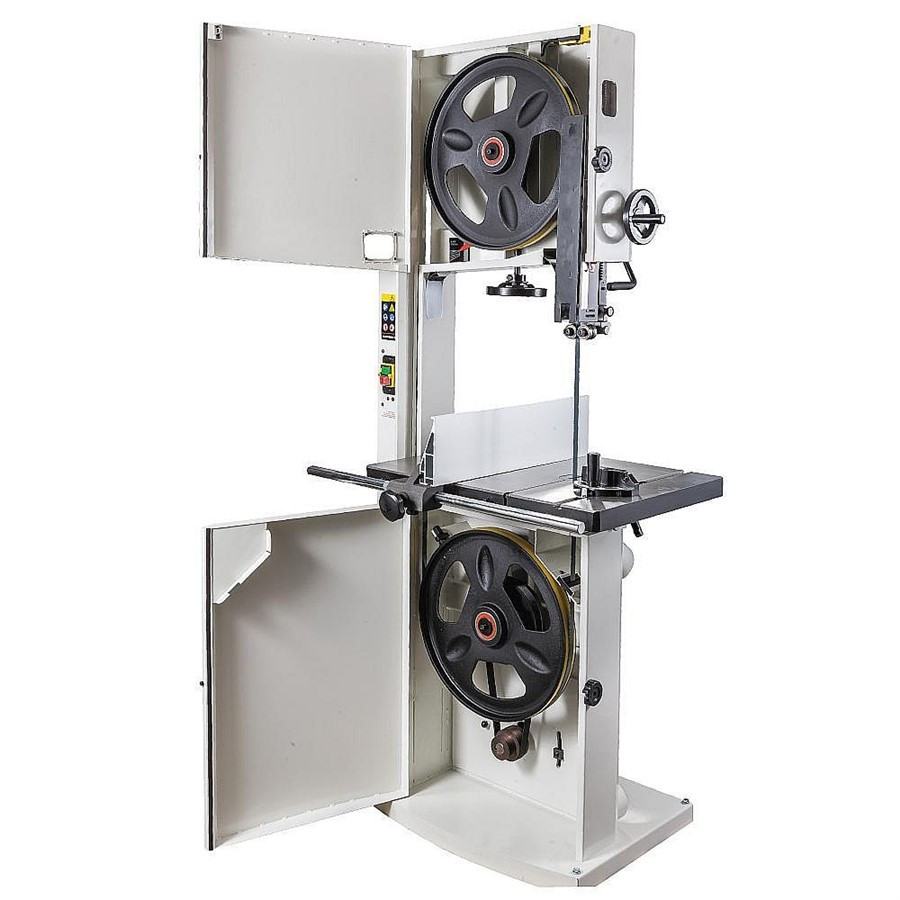

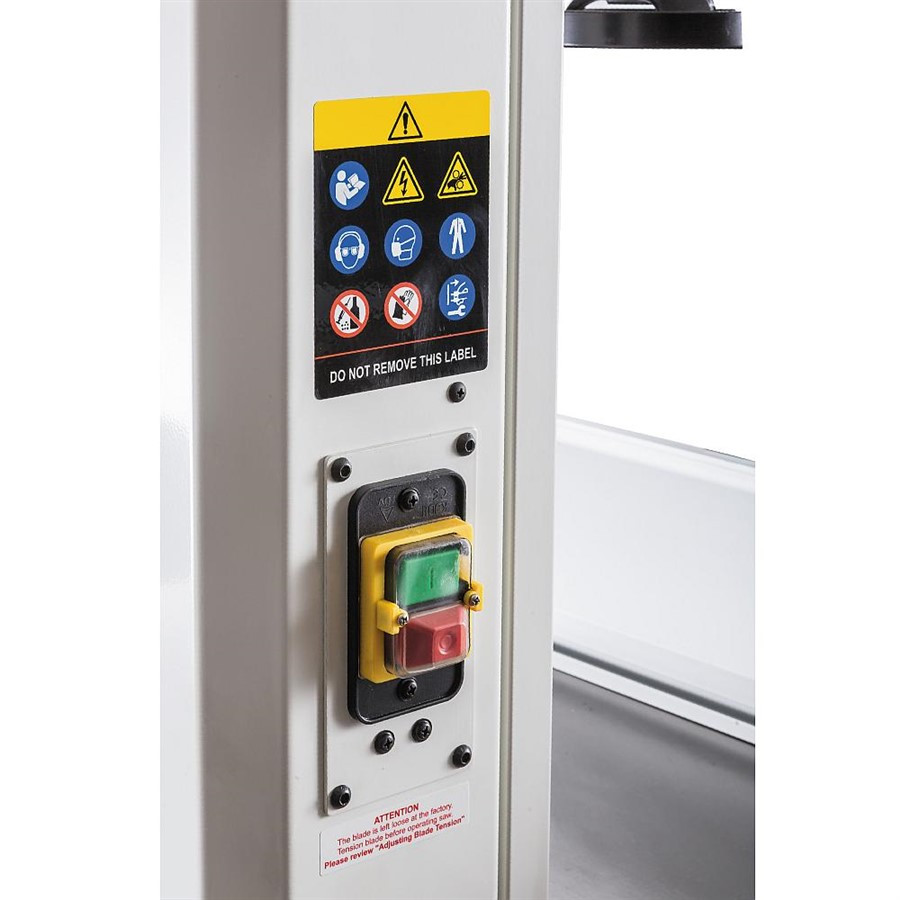

The JET JWBS-18T Bandsaw is designed for heavy-duty work. The saw has well-balanced cast wheels and a solid cast-iron worktop tiltable from -5° to +45°. The micro-adjustment on the rip fence allows an accurate setup to tenths of a millimetre. The fence can be installed to two positions (vertical and horizontal). The saw blade is guided through bearings over and under the table, this allows for accurate guiding resulting in a high-quality cut and a long saw blade life. The machine is fitted with a safety switch, an electromechanical engine brake, an easily accessible belt release lever to facilitate its replacement and two dust extraction openings with 100 mm in diameter. This bandsaw is ideal for a professional woodshop that requires accuracy and high-quality cutting power.

Features

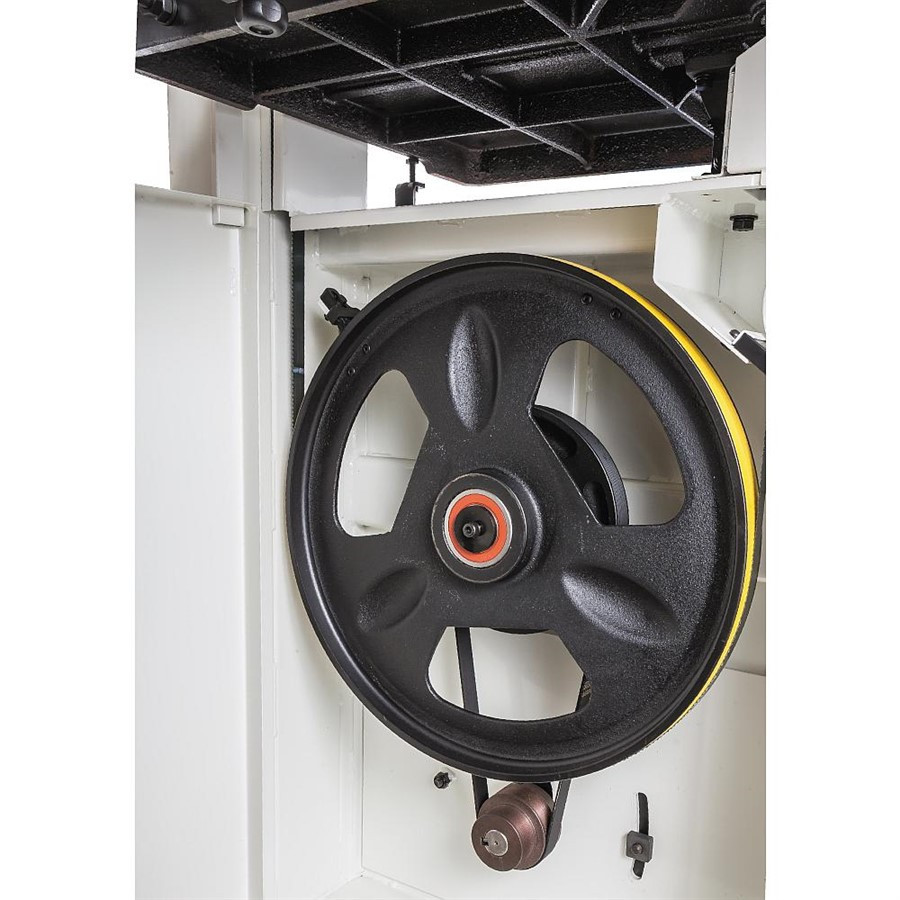

• Wheel diameter 470 mm
• Depth of cut up to 406 mm
• Two blade speeds
• Precise and adjustable blade guide
• Lever for quick blade release
• Rip and mitre fence included

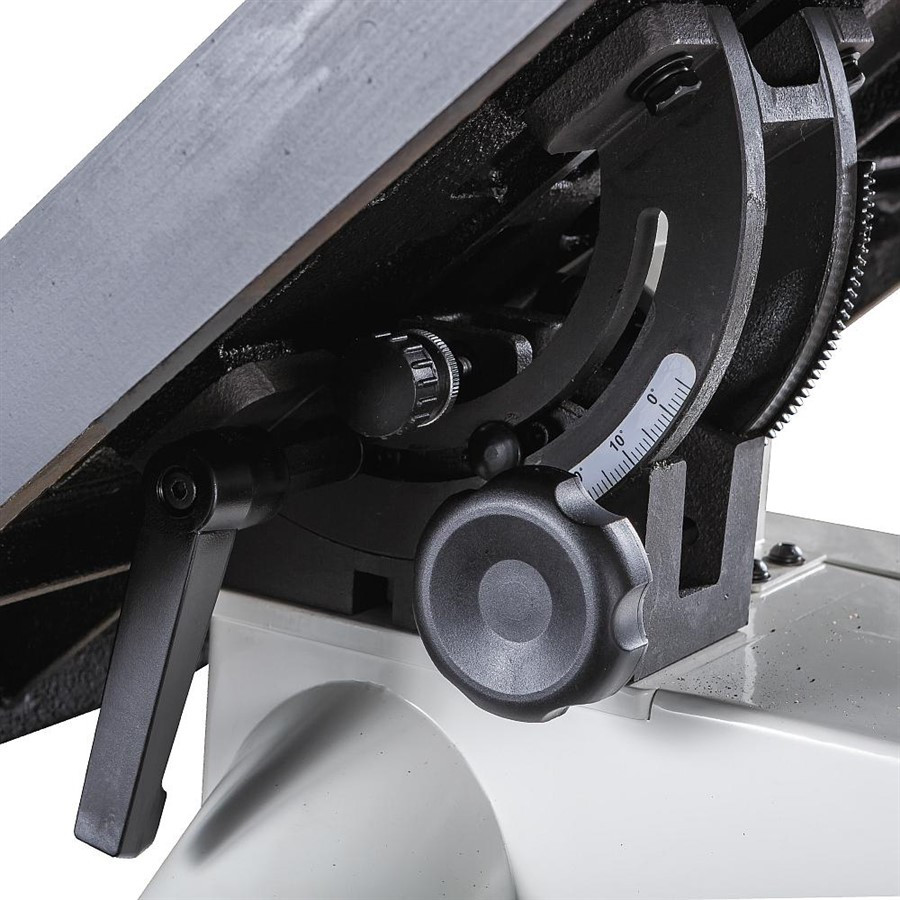

• Worm geared trunnion system for table tilt from -5° to 45°
• Rip fence with micro-adjustment can be set up into two positions

Specifications

• Type: JWBS-18T
• Rating: Professional

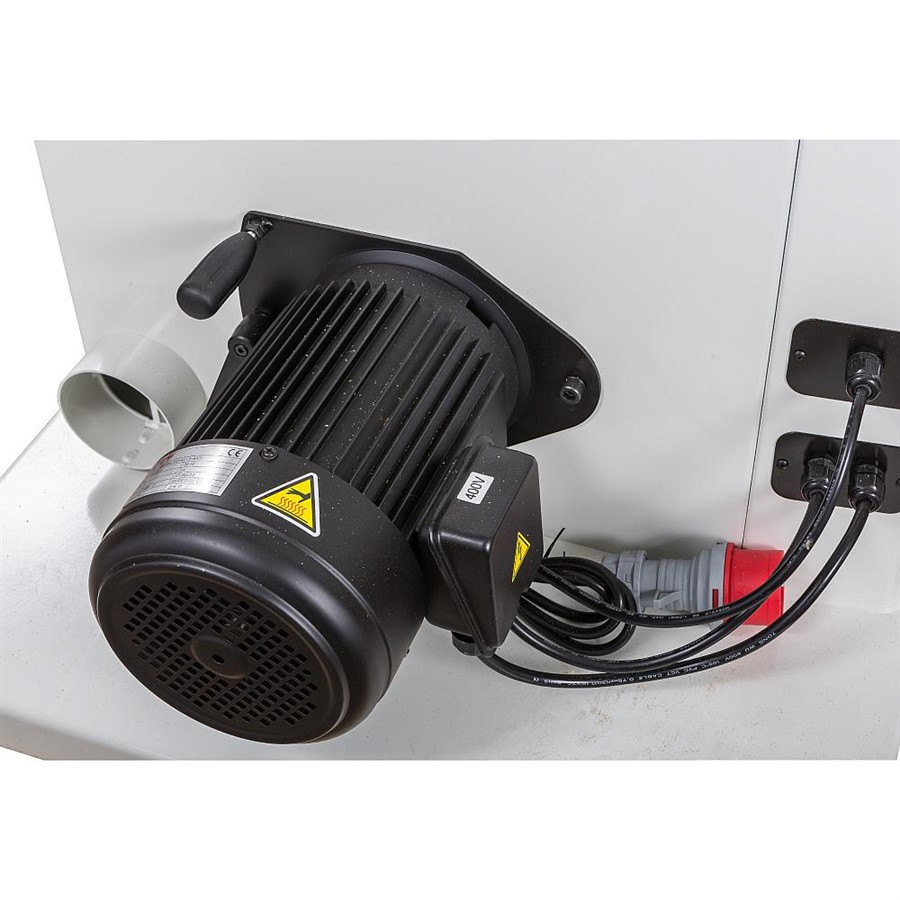

• Output (400 V): 1.5 kW
• Blade Speed: 590 a 900 m/min
• Blade Length: 3810 mm
• Blade Width min. / max.: 3 / 30 mm
• Max. Width of Cut: 457 mm
• Max. Depth of Cut: 406 mm
• Table Size: 508 x 692 mm
• Table Tilt: -5° to +45°
• Wheel Dia.: 470 mm
• Dust Extraction: 2x 100 mm
• Length x Width x Height: 865 x 915 x 2035 mm
• Weight: 217 kg
