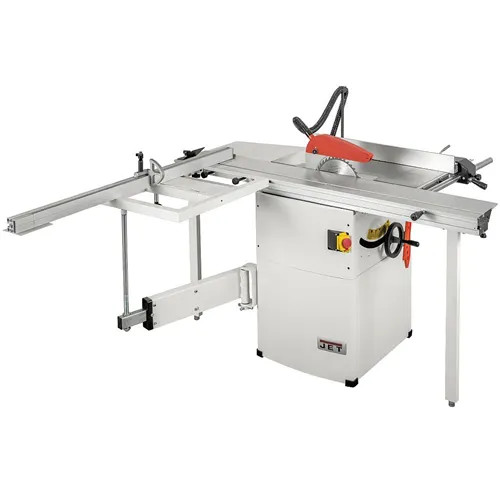

Jet JTS-600XL 10" Table Saw (230V) (JTS-600XL-M)

Jet JTS-600XL 10" Table Saw (400V-3 Phase)

×
×
Brand:
Price:
Contact us for pricing & availability
  • Product Description

    The JET JTS-600XL panel saw is a professional machine designed for accurate wood and large board cutting of materials with the length of up to 1300 mm on a formatting table. Thanks to its size, it's suitable for small and medium-sized workshops or for factories as an additional machine. The saw is suitable for large board material. A properly selected blade for laminates will improve the cleanliness of cut on the bottom side of the board, it cannot fully replace scoring, however. Firm stand, powerful motor and telescopic support table ensure accurate cutting. The main fence on a truck with telescopic support allows cutting of workpieces at a 45° - 135° angle. Powerful 2,5 kW induction motor ensures stable operation of the machine. Dust extraction is provided from underneath the aggregate and from the cover of the saw blade.

    • Rating: Professional
    • Power Input / Output (230 V) 2,5 /1,5 kW
    • Blade Diameter x Bore 250 x 30 mm
    • Blade Speed 4000 rpm
    • Blade Tilt 0°-45°
    • Max. Depth Of Cut 45°/90°: 54/80 mm
    • Max. Length of Cut on a Sliding table: 1300 mm
    • Max. Width of Cut with a Fence: 610 mm
    • Prolonged Extension Table: 800 x 270 mm
    • Sliding Table: 1300 x 240 mm
    • Outrigger Table with a Telescopic arm: 460 x 600 mm
    • Main Cast-iron Table: 800 x 350 mm
    • Dust Extraction Outlet: 100 mm
    • Weight 157 kg


    Inclusive:

    • Basic saw blade (250 x 30 mm, 40T)
    • Rear and side table extensions
    • Sliding table with outrigger support and a telescopic fence
