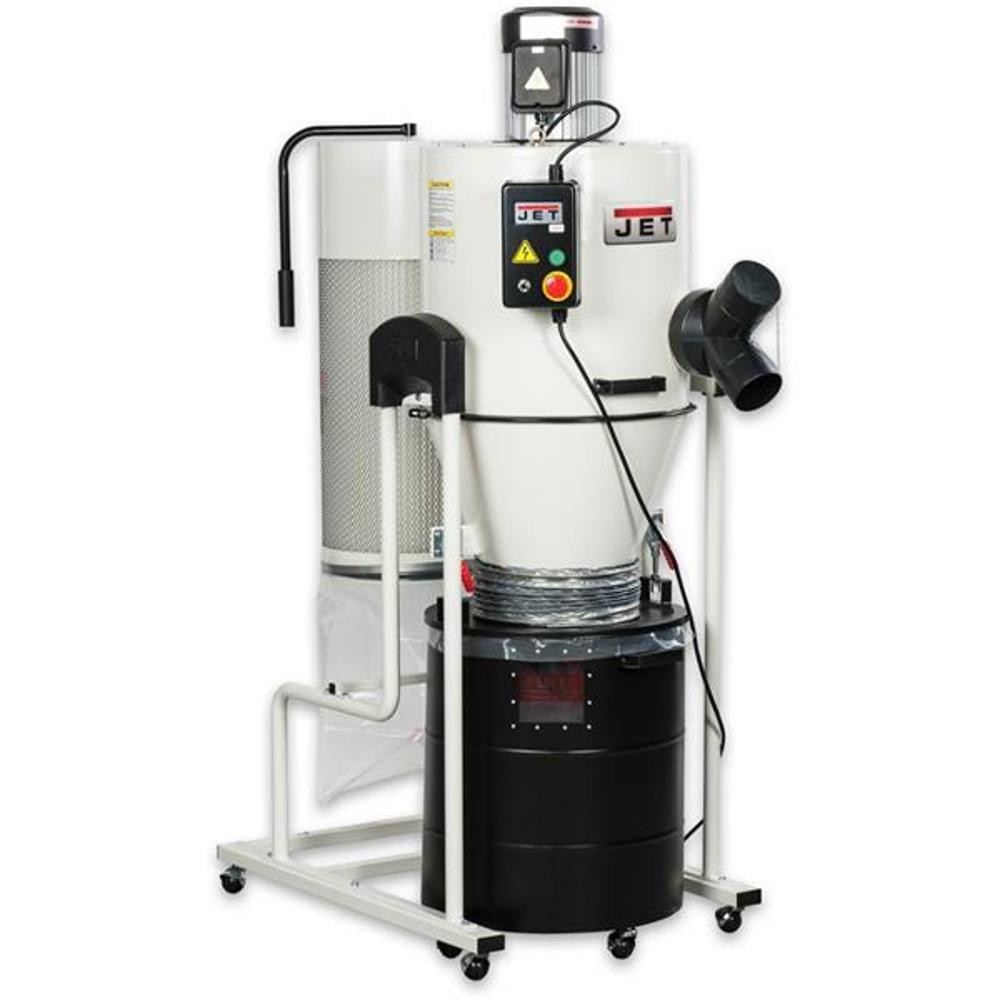

Jet JCDC2.0-M Cyclone Dust Extractor ( 230v)

Overview

Jet JCDC-20 Cyclone Dust Collector is highly efficient due to its directly mounted cartridge filter and the two stage airflow system separating the waste before the filter. This therefore gives a higher airflow than single stage machines of comparable power. Even though it is quite compact it still has a large waste drum. This is also easily emptied due to its independent castors.

The deep pleated cartridge filter will capture particles down to 1 micron and is also fitted with a manual dual paddle cleaning system. The alloy bodied induction motor runs cool and the noise level is quite moderate, so not too intrusive in the workshop. You have a choice of two inlet sizes, so either one larger 153mm or twin 102mm to suit a wide range of machines.

Well made, quiet and powerful, this extractor is a great choice for a any workshop. 230V  16AMP machine

Features

• More suction power using the same motor output, quiet operation
• Two-level air filtration makes the device more effective and efficient
• Powerful cyclone function, separates chips from dust to relieve pressure on the fine mesh filter
• Filter efficiency level of 99% for particles ≥ 2 microns.
• Filter cartridge with quick-clean feature using the lever
• Quick emptying with the drum’s quick release fasteners and separate castors
• Includes radio remote control with a range of 15 metres, with a timer for 2, 4, 6, 8 hours
• Air flow rate 2,160 m3/h
• Vacuum pressure 1,600 pA
• Dust inlet diameter 152mm
• Hose diameter 2×100mm
