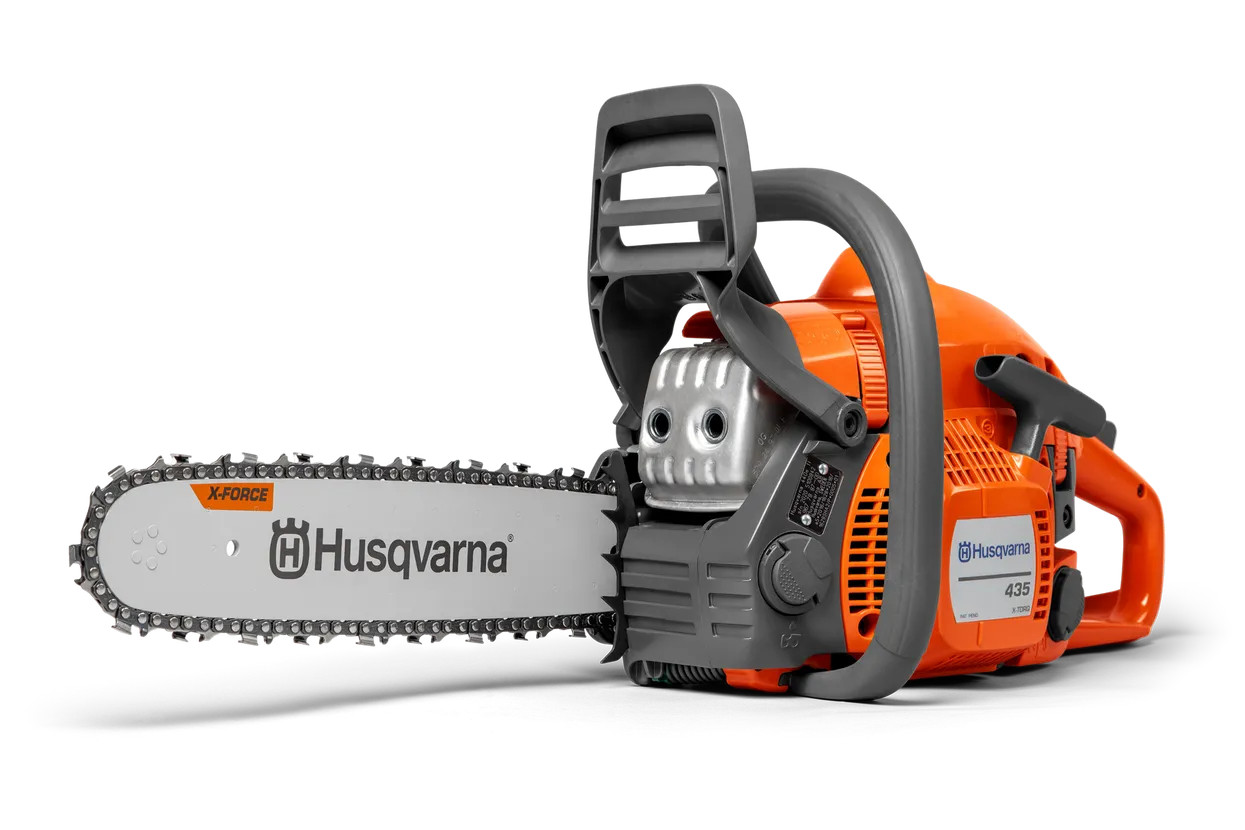

Second generation lightweight and efficient all-round saw ideal for those looking for a chainsaw that is exceptionally easy to start and manoeuvre. Starts easily also with a slower pull, comes with flip-up tank caps. Featuring X-Torq® engine for lower fuel consumption and reduced emission levels. Equipped with fuel pump and Auto return stop switch for easier starting.40.9 cm³ - Cylinder displacement
Cylinder displacement - 40.9 cm³
1.6 kW - Power output
Features:
Air Injection - Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
Powerful and Efficient X-TORQ® Engine - Powerful X-TORQ® engine reduces emissions by up to 60% and increases fuel efficiency by up to 20%
Quick-release air filter - Facilitates cleaning and replacement of the air filter.
Felling Marks - Dedicated marks for increased felling precision
Flip-Up Fuel Cap - Easy to open and secures firmly, even when wearing thick gloves
Ergonomic rear handle - Increased comfort with soft inlay, ergonomic trigger and assymetrical handle.
Side-mounted chain tensioner - Side-mounted chain tensioner makes chain adjustment quick and easy.
Three-piece crankshaft - Forged three-piece crankshaft for maximum durability for the toughest applications.
Fuel Indicator - Transparent fuel indicator makes it easy to check fuel level
Inertia chain brake - Effective inertia-activated chain brake.
Fuel pump - Fuel pump designed for easy starting.
Snap-lock cylinder cover - Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
LowVib® - Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.
Easy to start - Combined start/stop switch and fuel pump make the saw very easy to start.
Specifications:
| Engine |
15" .325" SP33G SN
Art no: 967 15 54‑75
|
15" .325" SP33G SN
Art no: 967 67 58‑35
|
15" .325", H30, SN, 44µ, all markets
Art no: 970 55 97‑35
|
| Chain speed at max power | 17.3 m/s | 17.3 m/s | 17.3 m/s |
|---|---|---|---|
| Cylinder displacement | 40.9 cm³ | 40.9 cm³ | 40.9 cm³ |
| Power output | 1.6 kW | 1.6 kW | 1.6 kW |
| Emission | |||
|
Exhaust emissions (CO2 EU V)
|
813 g/kWh | 813 g/kWh | 813 g/kWh |
| Equipment | |||
| Recommended bar length, min | 33 cm | 33 cm | 33 cm |
| Recommended bar length, max | 45 cm | 45 cm | 45 cm |
| Pitch | .325" | .325" | .325" |
| Chain type | SP33G | SP33G | H30 |
| Guide Bar | 38 cm | 38 cm | 38 cm |
| Bar length (inch) | 15 in | 15 in | 15 in |
| Dimensions | |||
| Weight (excl. cutting equipment) | 4.2 kg | 4.2 kg | 4.2 kg |
| Sound and Noise | |||
| Sound pressure level at operators ear | 102 dB(A) | 102 dB(A) | 102 dB(A) |
| Sound power level, guaranteed (LWA) | 114 dB(A) | 114 dB(A) | 114 dB(A) |
| Vibration | |||
| Equivalent vibration level (ahv, eq) front handle | 3.8 m/s² | 3.8 m/s² | 3.8 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 4.2 m/s² | 4.2 m/s² | 4.2 m/s² |
