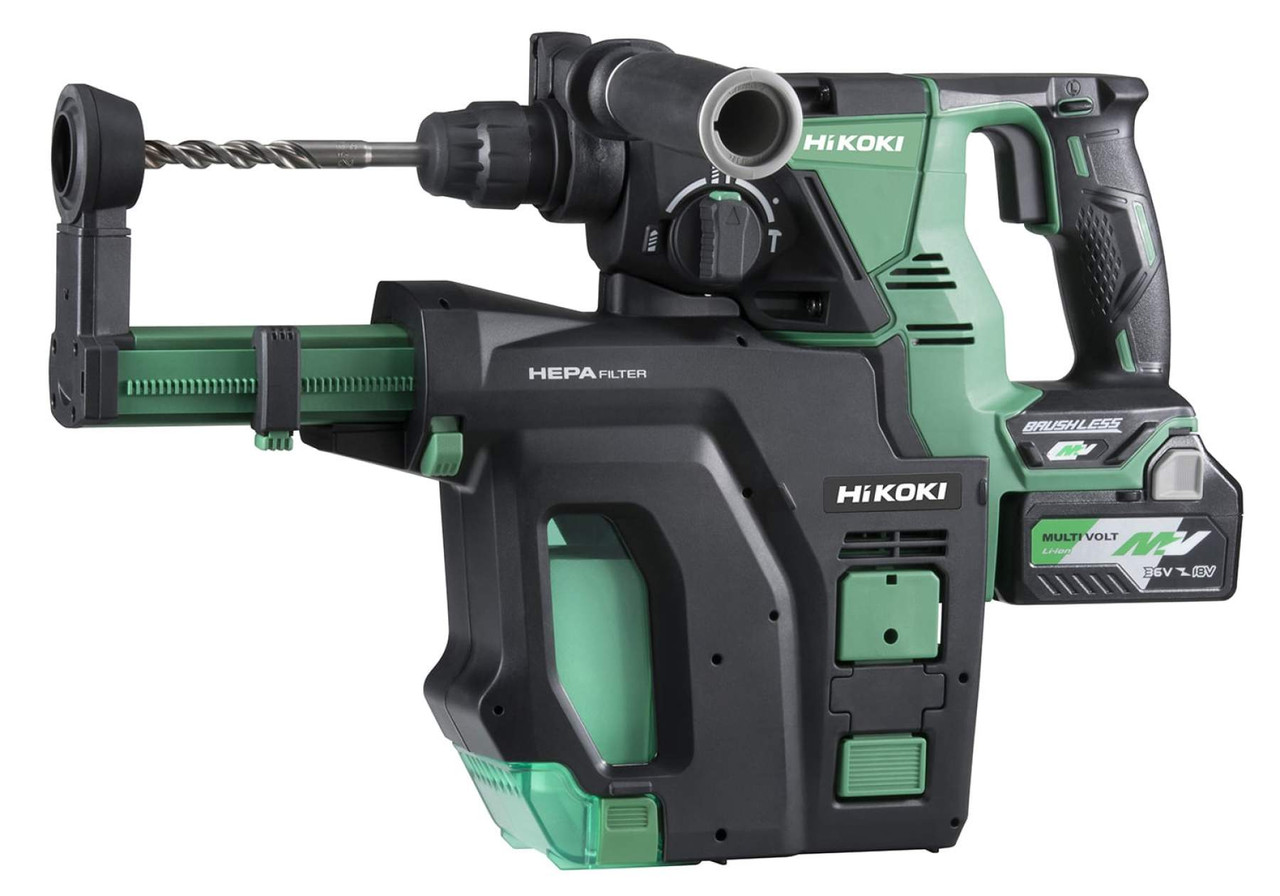

    HiKoki DH36DPB 36V Cordless Rotary Hammer with Dust Extractor System (2 x 2.5Ah)

    ×
    ×
    Brand:
    HiKoki
    Price:
    €595.00 (inc VAT) €483.74 (exc VAT)
    Shipping:
    Calculated at checkout
    Quantity:

    • Product Description

      Fast Drilling Speed Equivalent to an Electric (AC) Model*1

      Drills fast like an AC rotary hammer with a combination of the highly efficient brushless motor and high power output MULTI VOLT battery.

      • Runtime per Charge
        Approx. 90 holes *2
        With the BSL36A18 battery. When drilling into concrete with a ø8.5mm x 40mm drill bit.

      1. When fully charged with the dust extractor system detached. In comparison with the DH28PCY rotary hammer. The performance depends on the workpiece material and operating conditions.
      2. The value is for reference purposes, and depends on the workpiece material and operating conditions.

      More Lightweight and More Compact *1Same Power. Less Size.

      • The compact and lightweight MULTI VOLT battery enables a significant reduction in the overall size of the tools.

      1. Compared to the DH36DBL cordless rotary hammer.
      2. Without the dust extractor system, the DH36DPB has the same weight and size as the DH36DPA.

      Ergonomic Design

      • Pic.1: The grip of the handle and the drill bit head are on the same line of action, which makes applying force to drill easier.
        Pic.2: The grip of the handle is close to the center of gravity for easier handling.

        Ergonomic Design

      Reactive Force Control(RFC)

      When the tool bit is suddenly overburdened during operation, the slip clutch works or the tool's built-in controller stops the motor's output before the entire tool jerks.

      Caution
      Depending on operating conditions, the Reactive Force Control function may not work or may not provide the specified performance. Make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.

      Fast Drilling Speed Equivalent to an Electric (AC) Model *1

      • allows for fast change between the SDS-plus drill bit holder and the drill chuck holder (DH36DPD).

        Note: Turn the change lever to "Hammering only" mode when replacing a tool retainer with another. Use the machine only in "Rotation only" mode when the drill chuck holder installed.

        Quick-release tool retainer

      • Dust Extractor System

        HEPA filter

        High-Efficiency Particulate Air filter ensures clean air exhaust.

        		 HEPA filter

        Drilling Depth Adjustment up to 85mm

        Max drilling depth: 85mm
        Max Stroke: 100mm

        		 Drilling Depth Adjustment

        Detachable Dust Box for Easy Dust Disposal

        		 Detachable Dust Box

        The Brush Cap and Nozzle Seal for Minimum Dust Escape

        		 Brush Cap and Nozzle Seal

        Delayed Stop Function

        When the tool's switch is released, the dust extractor system's internal motor stops after a delay of several seconds so as to vacuum remaining dust particles in the internal parts.

        Cross Platform Compatibility

        The dust extractor system included with the DH36DPB fits on the DH36DPA, DH36DBL, and DH18DBL.
        The one included with the DH36DPD fits on the DH36DPC, DH36DBQL, and DH18DBQL.

      Specifications

      ModelG3610DBG3613DB
      CapacityConcrete 20mm (25/32")
      Bit Shank SDS-plus
      Battery Voltage 36V
      No Load Speed 0 - 1,100/min
      Full Load Impact Rate 0 - 4,300/min
      Overall Length 493mm (19-13/32") 525mm (20-43/64")
      Weight*3 5.7kg (12.6lbs.) 6.1kg (13.4lbs.)
      Vibration Total Values (triax vector sum)*4Hammer Drilling into Concrete Vibration emission value ah, HD = 15.4 m/s2 Vibration emission value ah, HD = 16.2 m/s2
      Uncertainty K = 1.5 m/s2
      Standard Accessories*5 2 Batteries (BSL36A18), Battery Cover, Charger (UC18YSL3), Side Handle, Depth Gauge, Terminal Cover, Carrying Case 2 Batteries (BSL36A18), Battery Cover, Drill Chuck Holder, Charger (UC18YSL3), Side Handle, Depth Gauge, Terminal Cover, Carrying Case
      1. Specifications are for when a dust extraction unit has been installed. When used with the dust extraction unit uninstalled, the specifications are the same as those for DH36DPA.
      2. Specifications are for when a dust extraction unit has been installed. When used with the dust extraction unit uninstalled, the specifications are the same as those for DH36DPC.
      3. Weight according to EPTA-Procedure 01/2003.
      4. The vibration total values were determined according to EN60745.
      5. Supplied accessories vary by country or area
