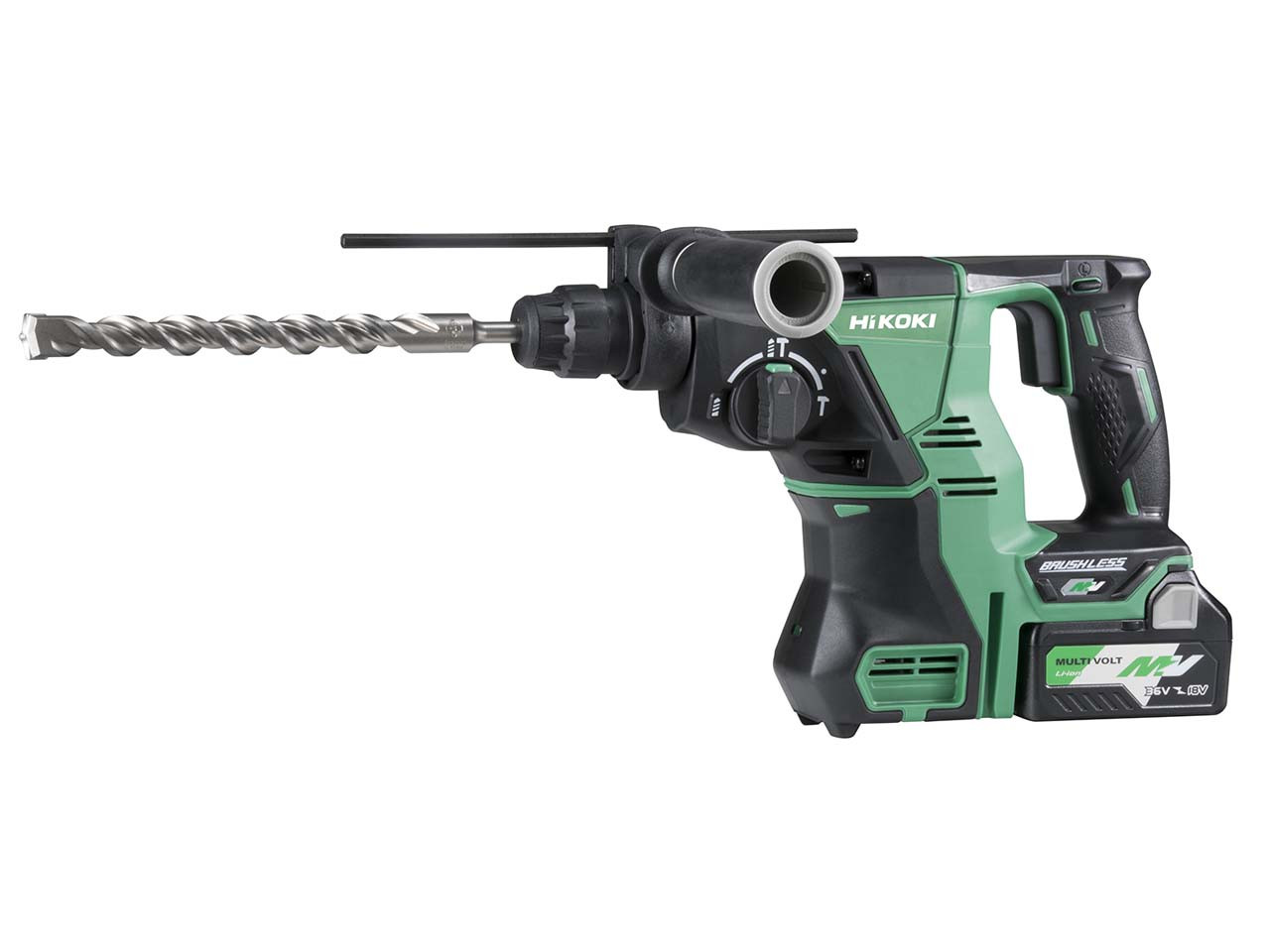

HiKoki DH36DPA Multi Volt (36V) Cordless Rotary Hammer 2 x 2.5Ah (DH36DPA)

HiKoki DH36DPA Multi Volt (36V) Cordless Rotary Hammer 2 x 2.5Ah

×
×
Brand:
Price:
€829.00 (inc VAT) €673.98 (exc VAT)
Shipping:
Calculated at checkout
Quantity:
  • Product Description

    Fast Drilling Speed Equivalent to an Electric (AC) Model *1

    Drills fast like an AC rotary hammer with a combination of the highly efficient brushless motor and high power output MULTI VOLT battery.

    • Runtime per Charge
      Approx. 120 holes *2
      With the BSL36A18 battery. When drilling into concrete with a ø8.5mm x 40mm drill bit.

    1. When fully charged with the dust extractor system detached. In comparison with the DH28PCY rotary hammer. The performance depends on the workpiece material and operating conditions.
    2. The value is for reference purposes, and depends on the workpiece material and operating conditions.

    More Lightweight and More Compact *1Same Power. Less Size.

    • The compact and lightweight MULTI VOLT battery enables a significant reduction in the overall size of the tools.
      *Compared to the DH36DBL cordless rotary hammer.

    1. Compared to the DH36DBL cordless rotary hammer.
    2. Without the dust extractor system, the DH36DPB has the same weight and size as the DH36DPA.

    Ergonomic Design

    • Pic.1: The grip of the handle and the drill bit head are on the same line of action, which makes applying force to drill easier.
      Pic.2: The grip of the handle is close to the center of gravity for easier handling.

      Ergonomic Design

    Reactive Force Control(RFC)

    When the tool bit is suddenly overburdened during operation, the slip clutch works or the tool's built-in controller stops the motor's output before the entire tool jerks.

    Caution
    Depending on operating conditions, the Reactive Force Control function may not work or may not provide the specified performance. Make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.

    Fast Drilling Speed Equivalent to an Electric (AC) Model *1

    • allows for fast change between the SDS-plus drill bit holder and the drill chuck holder (DH36DPC).

      Note : Turn the change lever to "Hammering only" mode when replacing a tool retainer with another. Use the machine only in "Rotation only" mode when the drill chuck holder installed.

      Quick-release tool retainer

    Specifications

    ModelDH36DPADH36DPC
    CapacityConcrete 28mm (1-1/8")
    Steel 13mm (1/2")
    Wood 32mm (1-1/4")
    Bit Shank SDS-plus
    Battery Voltage 36V
    No Load Speed 0 - 1,100/min
    Full Load Impact Rate 0 - 4,300/min
    Overall Length 351mm (13-13/16") 383mm (15-3/32")
    Weight*1 3.9kg (8.6lbs.) 4.2kg (9.3lbs.)
    Vibration Total Values
    (triax vector sum)*2
    Hammer Drilling into Concrete Vibration emission value ah, HD = 17.5 m/s2 Vibration emission value ah, HD = 18.3 m/s2
    Uncertainty K = 1.5 m/s2
    Equivalent Chiseling Value Vibration emission value ah, CHeq = 15.2 m/s2 Vibration emission value ah, CHeq = 12.2 m/s2
    Uncertainty K = 1.5 m/s2
    Standard Accessories*3 2 Batteries (BSL36A18), Battery Cover, Charger (UC18YSL3), Side Handle, Depth Gauge, Terminal Cover, Carrying Case 2 Batteries (BSL36A18), Battery Cover, Drill Chuck Holder, Charger (UC18YSL3), Side Handle, Depth Gauge, Terminal Cover, Carrying Case
    1. Weight according to EPTA-Procedure 01/2003.
    2. The vibration total values were determined according to EN60745.
    3. Supplied accessories vary by country or area.
