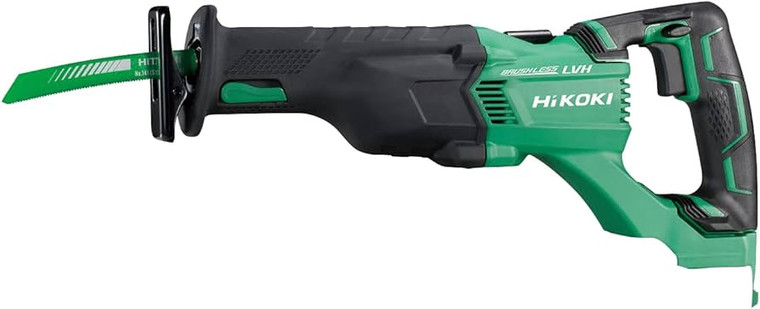

Hikoki 18V Cordless Reciprocating Saw (Body Only)

Cutting Speed*3

Mode	Transmission Mode			Auto Mode
	Low	Medium	High
Mode Indicator Lamp
SPM*	0 - 1,600/min	0 - 2,300/min	0 - 2,500/min	0 - 1,600/min (Under low load) 2,500/min (Under high load)
Applications	Stainless, Plastics, Fiberboard	Steel pipe, Cast iron pipe, L-shaped angle, Aluminium, Copper/Brass	ALC, Plasterboard, Lumber	-

• The number of stokes per minute varies depending on the operational conditions.

• Auto Mode
  Auto mode automatically increases the number of revolutions when the load becomes heavier during operation. When the load becomes lighter, the number of revolutions is automatically reduced.
  With auto mode, electricity consumption and noise can be suppressed by lowering the number of maximum strokes during no-load motor operation.



• The brushless motor allows for the compact design of the tool. With the longer and slimmer front grip, it is even easier to grip and handle.



• Blade installation and removal can be done by simply pushing a lever.
  The blade can be installed or removed regardless of the position of the plunger.



• The shoe (base) lever allows the shoe to be adjusted.



• cuts approx. 10 - 20% faster* with the optimized teeth settings and curved shape of the blade.

  • Vs. No. 341 blade. (When cutting stainless steel).



• conveniently allows for hanging the tool on a ø48mm pipe.
  Note: Don't hang the tool too high.



• comes in handy for illuminating the cutting edge in dimly lit areas like an attic.



Specifications
