Overview

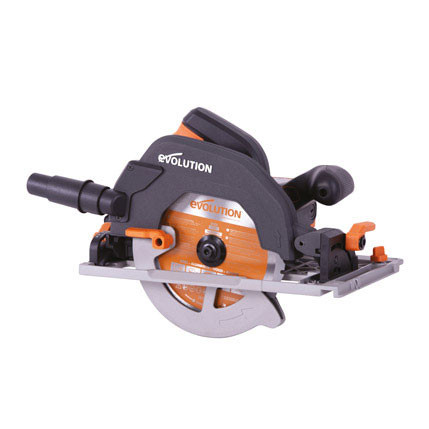

The ultimate multi-material cutting circular saw. Designed by the trade for the trade. The R185CCSX model gives you extra functionality, extra support and extra reach than any other Evolution circular saw in the family
Features

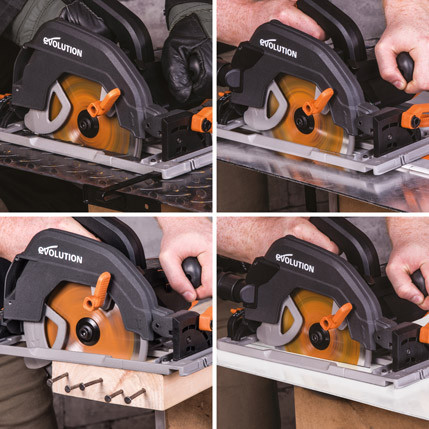

- Multi-Material cutting technology. One saw, one blade, cuts all.*

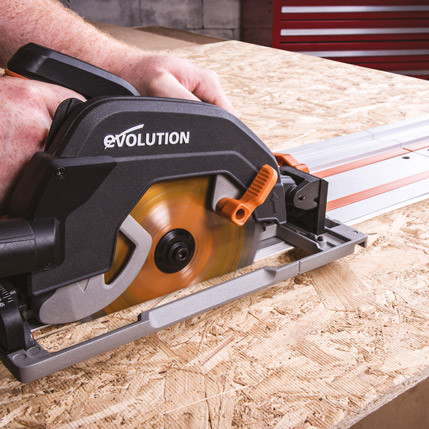

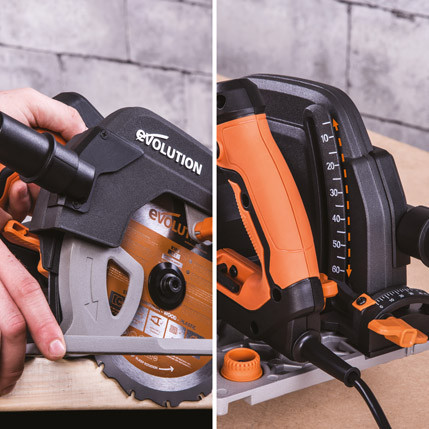

- Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1600W hi-torque motor with optimised gearbox & blade system.

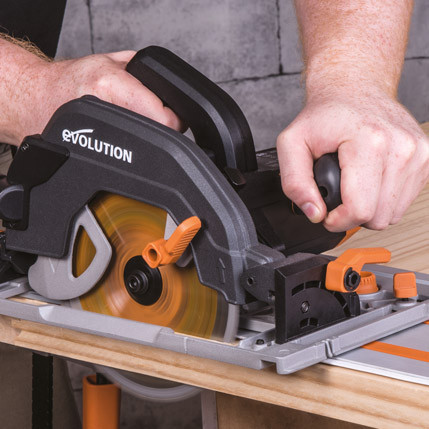

- 0° - 45° bevel tilt with virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
- Ergonomic, soft grip handles provide maximum control, versatility and precision.

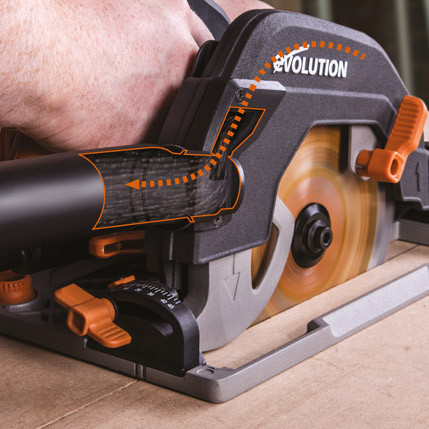

- Dust extraction port & adaptor included for vacuum compatibility.
- Robust & sturdy construction with even weight distribution, weighing 5.1kg
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.

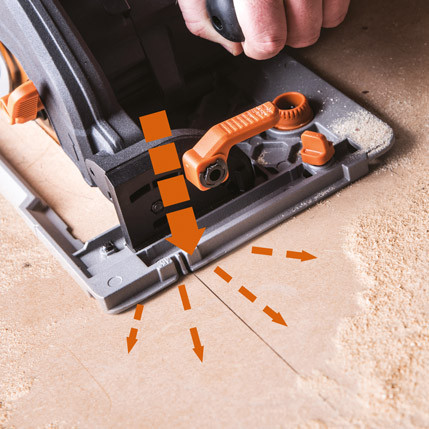

- Optimum visibility of your cutting line with LED Light & channelled air flow.
- 4m cable gives you the maximum power and the extended reach you need.
Specifications
Speed No Load (110V): |
3700 rpm |
Speed No Load (240V): |
3900 rpm |
Max. Bevel (Left): |
45° |
Circular Saw Base: |
Cast Aluminum |
Cable Length: |
4m |
Blade Dia.: |
185mm |
No. of Teeth: |
20 |
Bore: |
20mm |
Kerf: |
1.7mm |
Max. Depth of Cut (0°): |
64mm (59mm w/Track) |
Max. Depth of Cut (45°): |
47mm (42mm w/Track) |

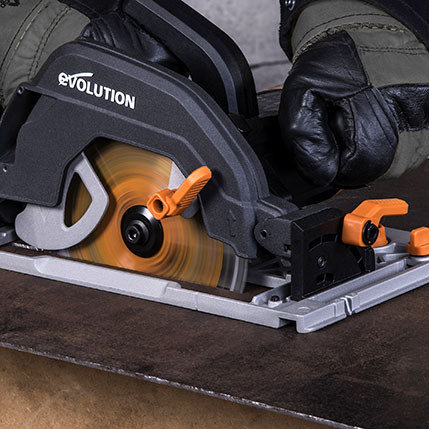

Mild Steel Plate (Max. Thickness): |
6mm |

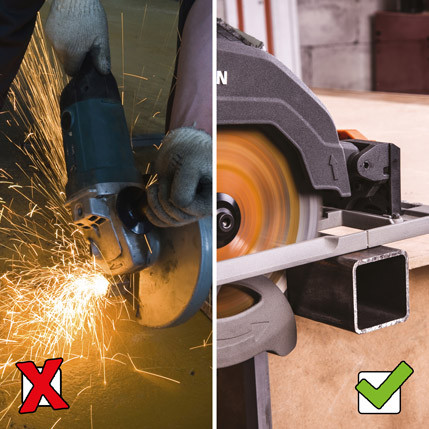

Mild Steel Box Section (Max. Wall Thickness): |
6mm |
Inclusive
16T Multi-Material TCT Blade |
Hex Key (Blade Change) |
Parallel Edge Guide |
Dust Port Adapter |
Dust Hose Connector |
|
