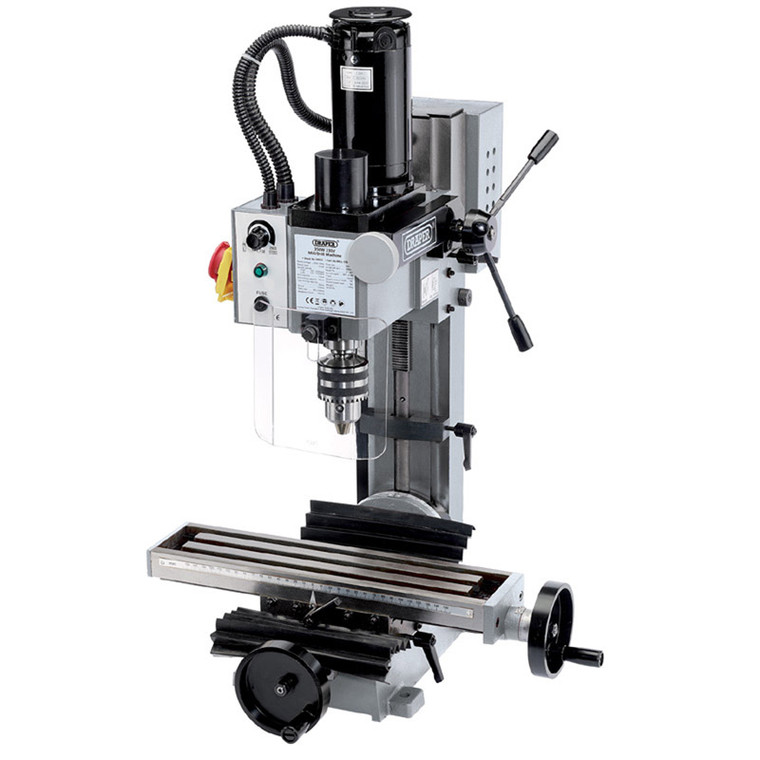

Draper Variable Speed Milling/Drilling Machine (350W)

×
×
Brand:
Price:
€1,549.00 (inc VAT) €1,259.35 (exc VAT)
Shipping:
Calculated at checkout
Quantity:
  • Product Description

    Features

    No-volt switch

    Precision metal working lathe, incorporated with a powerful 350W motor delivering excellent power output capable of handling most materials. The milling/drilling machine encompasses a working table with T slots, which enables clamping and securement of work. Each milling/drilling machine is fitted with metric graduated compound scales, column tilt feature (0-45°), a front mounted NVR switch and finely tuned 3-plane adjustment table. All these features make for an excellent milling/drilling machine, ideal for small industrial units.

  • Related Products

  • Find Similar Products by Category

  • Other Details

    Drilling capacity: 19mm
    Face milling capacity: 30mm
    End milling capacity: 16mm
    Headstock travel: 180mm
    Cross axis: 100mm
    Longitudinal axis: 220mm
    Spindle tilt axis: ±0-45°
    Spindle taper: MT3
    Spindle speeds - low: 100-1100r/min - high
    100-2500r/min T-slot: 12mm
    Throat depth: 170mm
    Table size: 390 x 92mm
    Weight: 66kg
×
×
