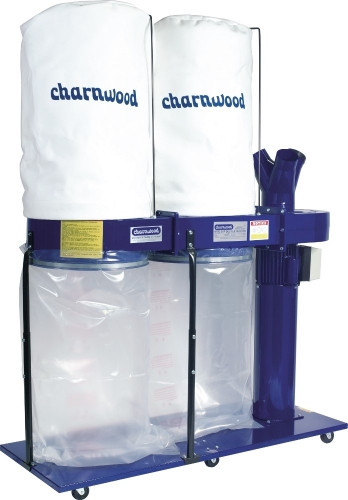

Charnwood W792 Professional 3HP Double Bag Dust Extractor (3 Phase)
Charnwood
€1,849.00
(Inc. VAT)
€1,503.25
(Ex. VAT)
Manufacturer's Overview
The high volume of air moved means this unit is capable of extracting from up to three machines simultaneously or through a longer hose system than smaller machines. Hose systems can include branches off to different dust producing machines around the workshop. The maximum recommended hose length between extractor and collection point is 10 metres. There is no limit to the total length of hose used in the network but any unused branches must be capped off or closed using a gate when not in use. We now fit as standard super fine 2 micron filters making the unit suitable even for MDF dust. A 16 amp supply is required to run this machine. Hose is not supplied as standard
Features
- Quiet Induction Motor
- Up to 8 hours Continual Running
- Super Fine 2 mircron Filter
- Transparent Collection Bag
- Wheels Included For Portability
Specifications
| Motor (Induction) | 2200w (3hp) |
| Voltage | 415v |
| Flowrate (cubic metres per hour) | 3000 m3/hour |
| Inlet Diameters | 1 x 150mm or 3 x 100m |
| Bag Cpacity | 2 x 148 Litres |
| Filtration | 2 microns |
| Dimensions (WxDxH) | 1560mm x 550mm x 1920mm |
| Weight | 75 Kg |
| Rating | Industrial |
Inclusive
- Steel fan
- 3 way outlet
- Four rubber wheels
- NVR switch and quick release metal straps on all bags
