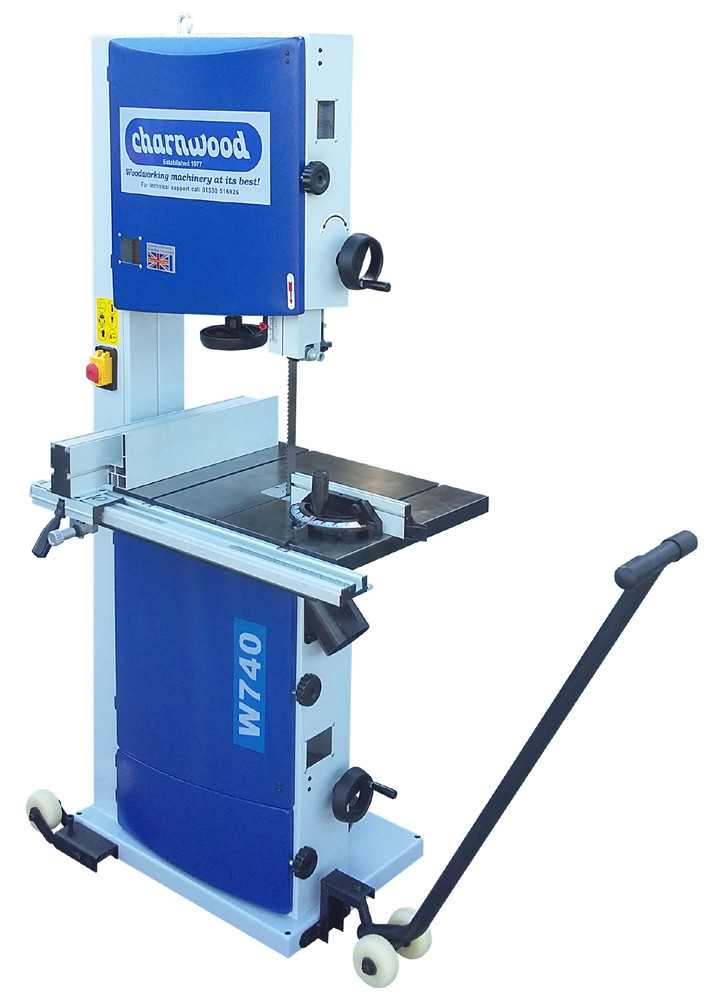

Charnwood W740 16'' Professional Woodworking Bandsaw

UPC:
W740
€2,095.00 (Inc. VAT)
€1,703.25 (Ex. VAT)
Current Stock:

Features

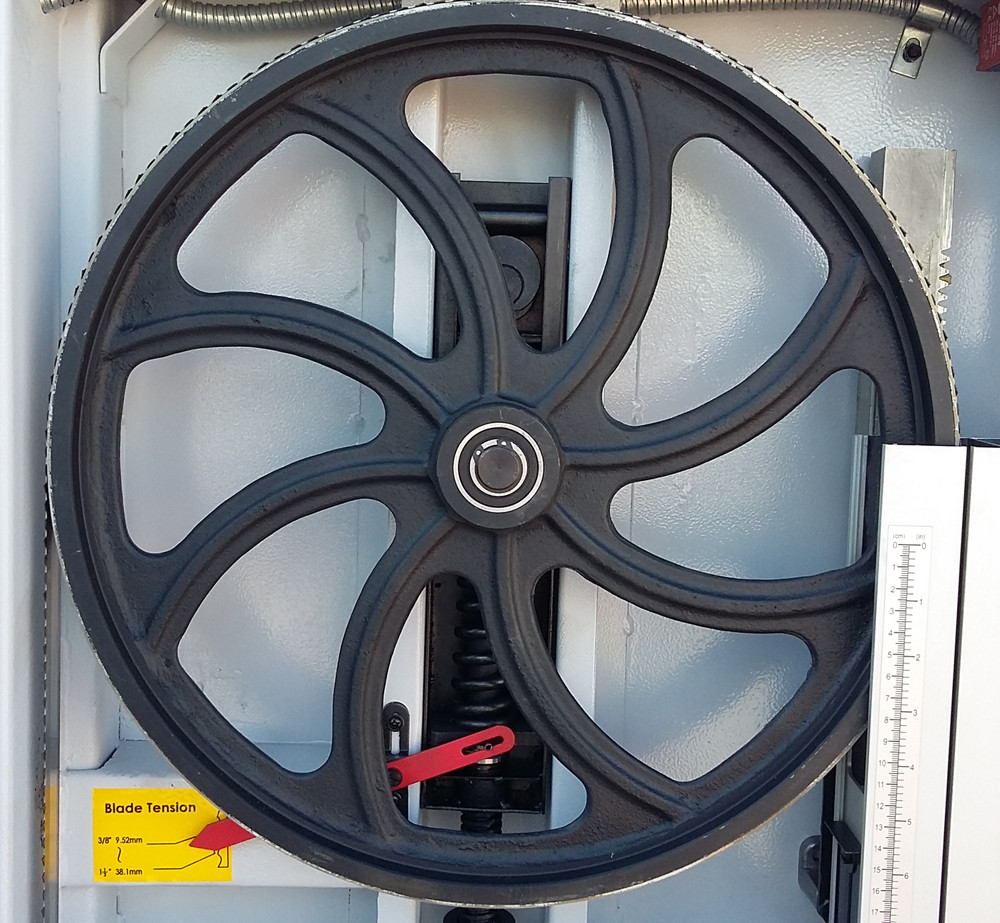

  • Cast Iron Wheels
  • 10" Cutting Depth Capacity
  • 16" Width Cutting Capacity

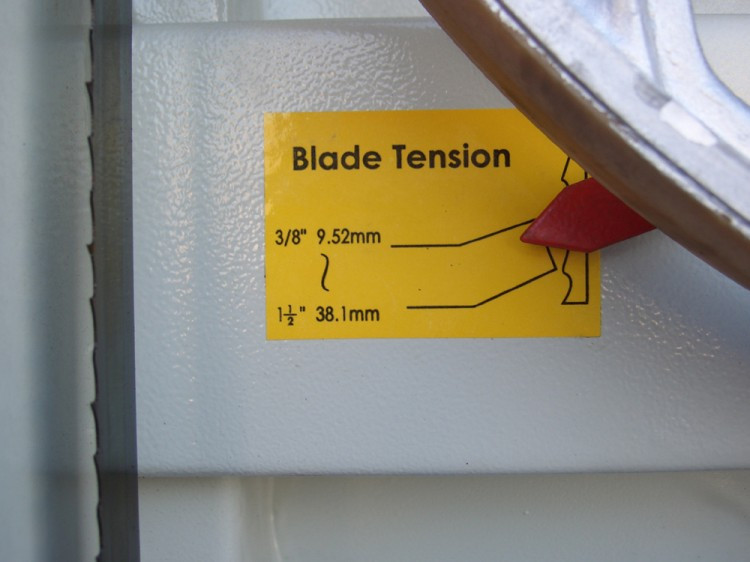

  • Blade Tension Indicator
  • 3hp Induction Motor
  • Wheel Kit Included

Manufacturer's Overview

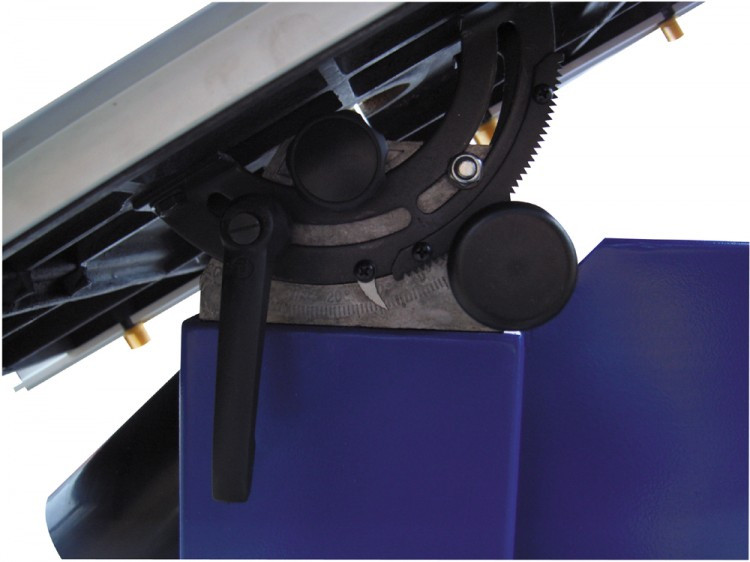

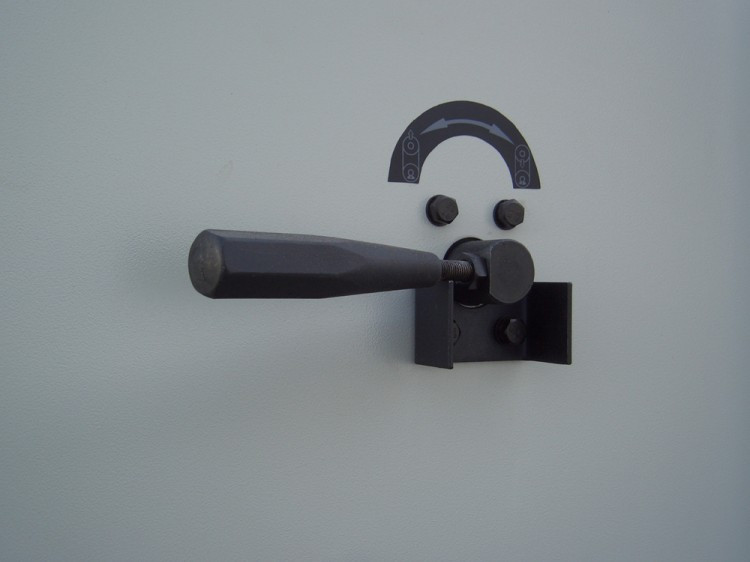

16" diameter cast iron balanced wheels and a powerful 3hp mechanically braked, induction motor give this bandsaw serious cutting capacities ideal for a production workshop or ambitious woodturner. The angle of the heavy cast iron table is adjusted by a handle at the rear and the work is guided by using either the quick lock rip fence, with a scale in both metric and imperial, or a well made sliding mitre fence for crosscutting. Setting the bandsaw blade tension correctly is made simple with the addition of a quick release lever and a tension indicator. A wheel kit gives the user complete freedom to move the bandsaw around the workshop.



Inclusive

  • Rip fence with micro adjuster

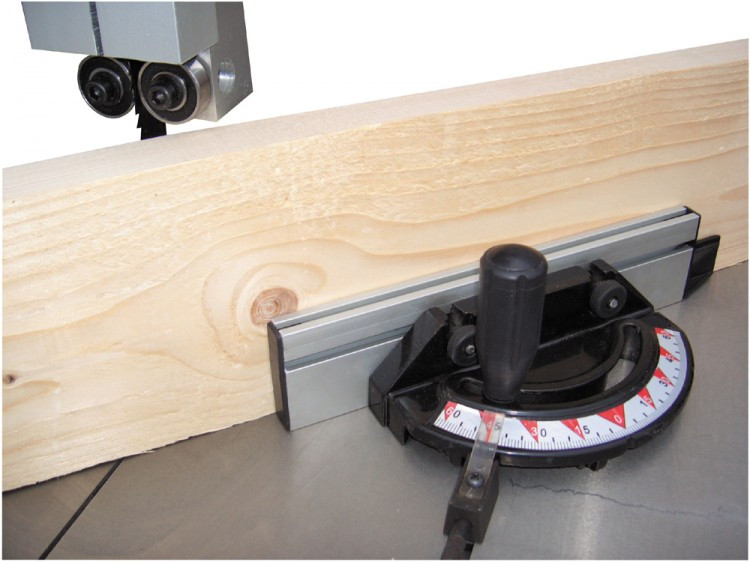

  • Cast metal sliding mitre guide and fence adjustable 60 degrees each way with preset stops
  • 25mm woodcutting blade
  • 2 x 100mm diameter extraction outlets

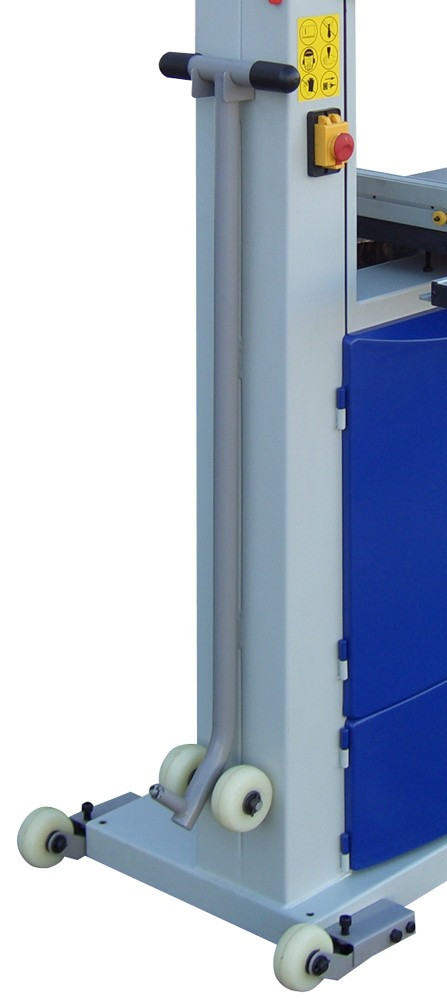

  • Wheel kit & Jockey bar



W740 Specification

Maximum cutting depth 255mm (10")
Throat width 410mm (16")
Table size 560mm x 450mm
Table height 890mm
Table tilt -10 to +45
Mitre Guide T-Slot 10mm / 16mm
Cutting speed 420 & 840m/min
Motor (induction) 2200w (3hp)
Blade length 3345mm
Blade widths 10-37mm (3/8" - 1 1/2")
Dimensions (WxDxH) 1080mm x 800mm x 1760mm
Weight 150kg
Rating Trade
