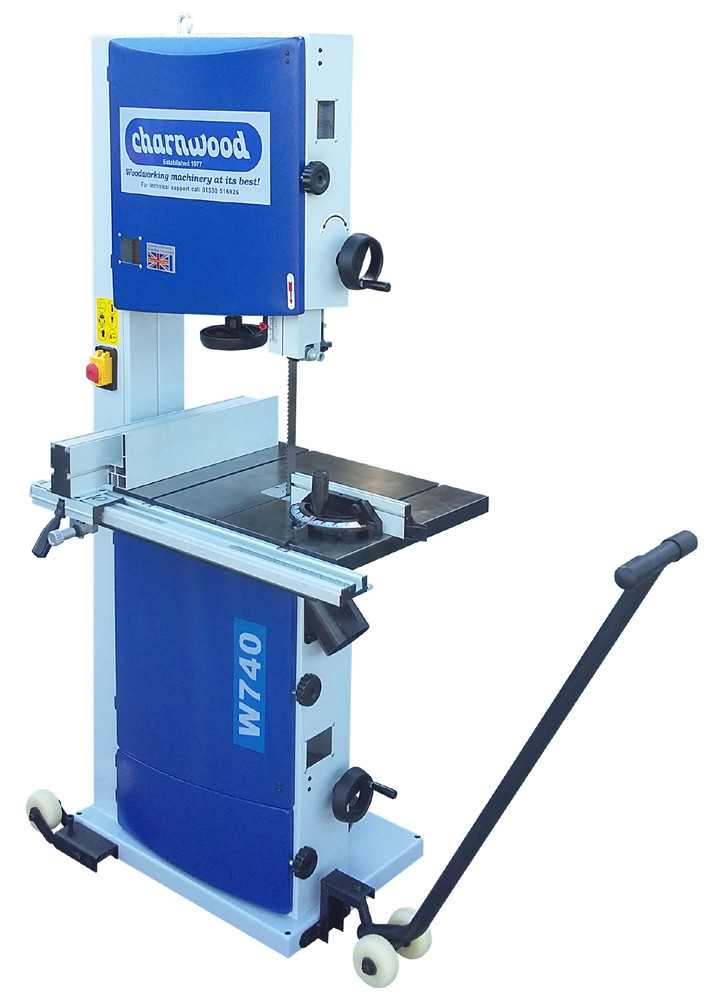

Charnwood WW740 16'' Professional Woodworking Bandsaw (W740)

Charnwood W740 16'' Professional Woodworking Bandsaw

×
×
Price:
€2,095.00 (inc VAT) €1,703.25 (exc VAT)
Shipping:
Calculated at checkout
Quantity:
  • Product Description

    Features

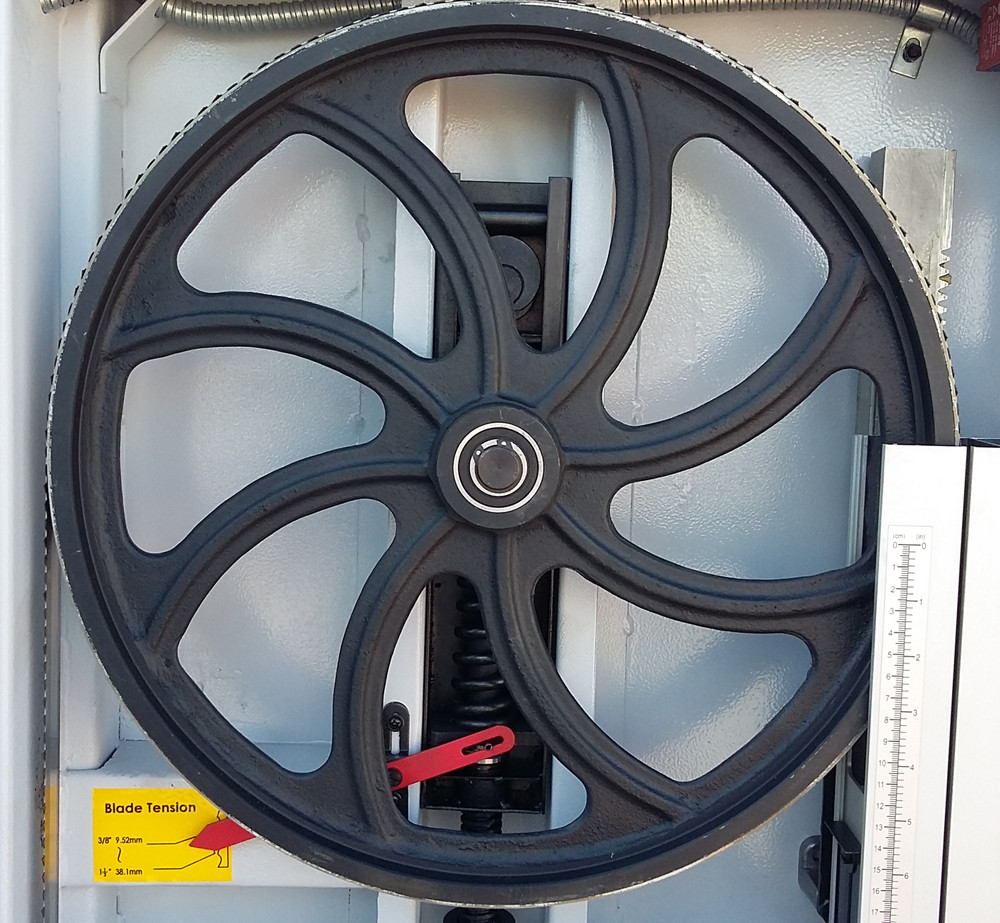

    • Cast Iron Wheels
    • 10" Cutting Depth Capacity
    • 16" Width Cutting Capacity

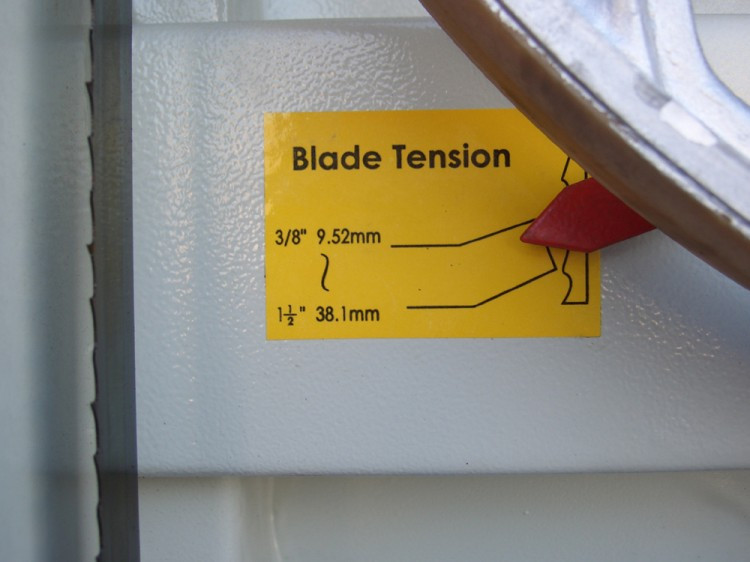

    • Blade Tension Indicator
    • 3hp Induction Motor
    • Wheel Kit Included

    Manufacturer's Overview

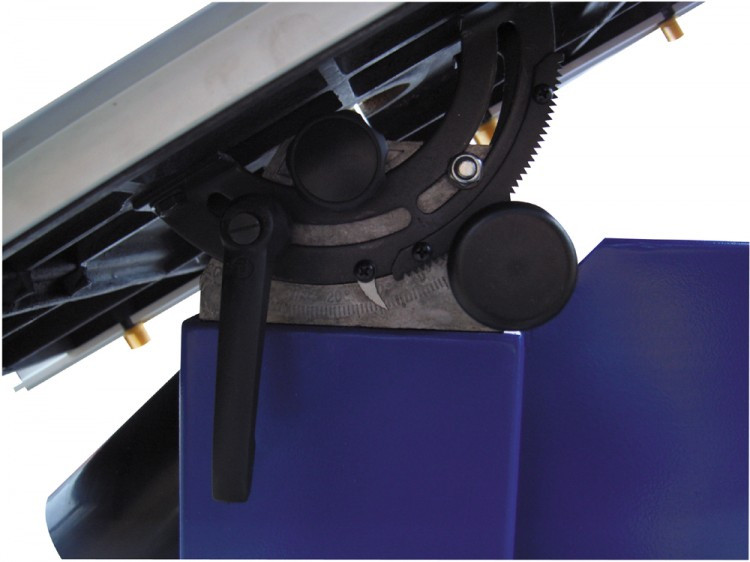

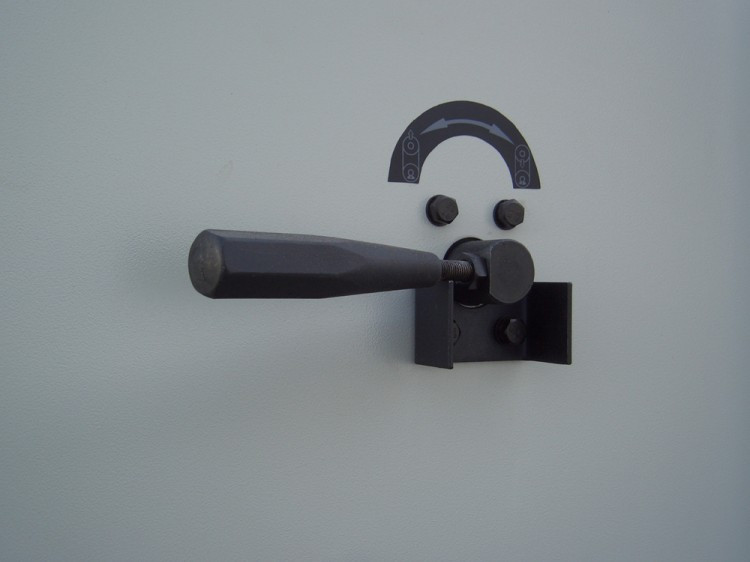

    16" diameter cast iron balanced wheels and a powerful 3hp mechanically braked, induction motor give this bandsaw serious cutting capacities ideal for a production workshop or ambitious woodturner. The angle of the heavy cast iron table is adjusted by a handle at the rear and the work is guided by using either the quick lock rip fence, with a scale in both metric and imperial, or a well made sliding mitre fence for crosscutting. Setting the bandsaw blade tension correctly is made simple with the addition of a quick release lever and a tension indicator. A wheel kit gives the user complete freedom to move the bandsaw around the workshop.



    Inclusive

    • Rip fence with micro adjuster

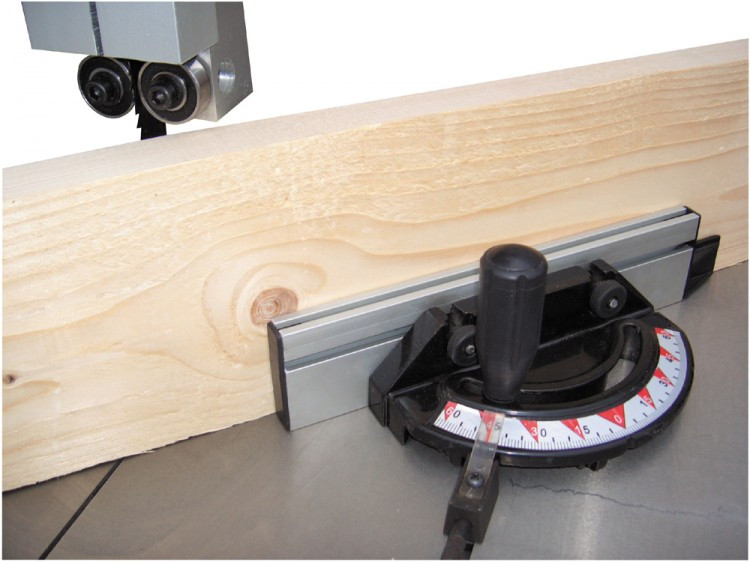

    • Cast metal sliding mitre guide and fence adjustable 60 degrees each way with preset stops
    • 25mm woodcutting blade
    • 2 x 100mm diameter extraction outlets

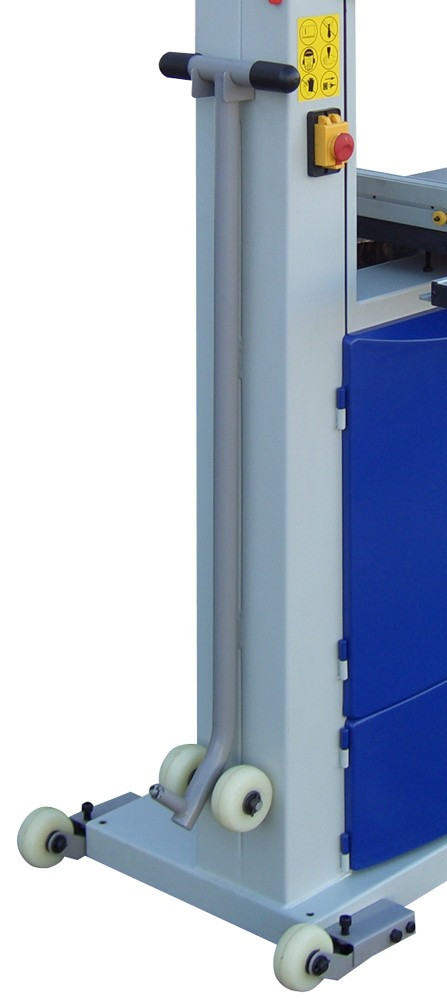

    • Wheel kit & Jockey bar



    W740 Specification

    Maximum cutting depth 255mm (10")
    Throat width 410mm (16")
    Table size 560mm x 450mm
    Table height 890mm
    Table tilt -10 to +45
    Mitre Guide T-Slot 10mm / 16mm
    Cutting speed 420 & 840m/min
    Motor (induction) 2200w (3hp)
    Blade length 3345mm
    Blade widths 10-37mm (3/8" - 1 1/2")
    Dimensions (WxDxH) 1080mm x 800mm x 1760mm
    Weight 150kg
    Rating Trade
