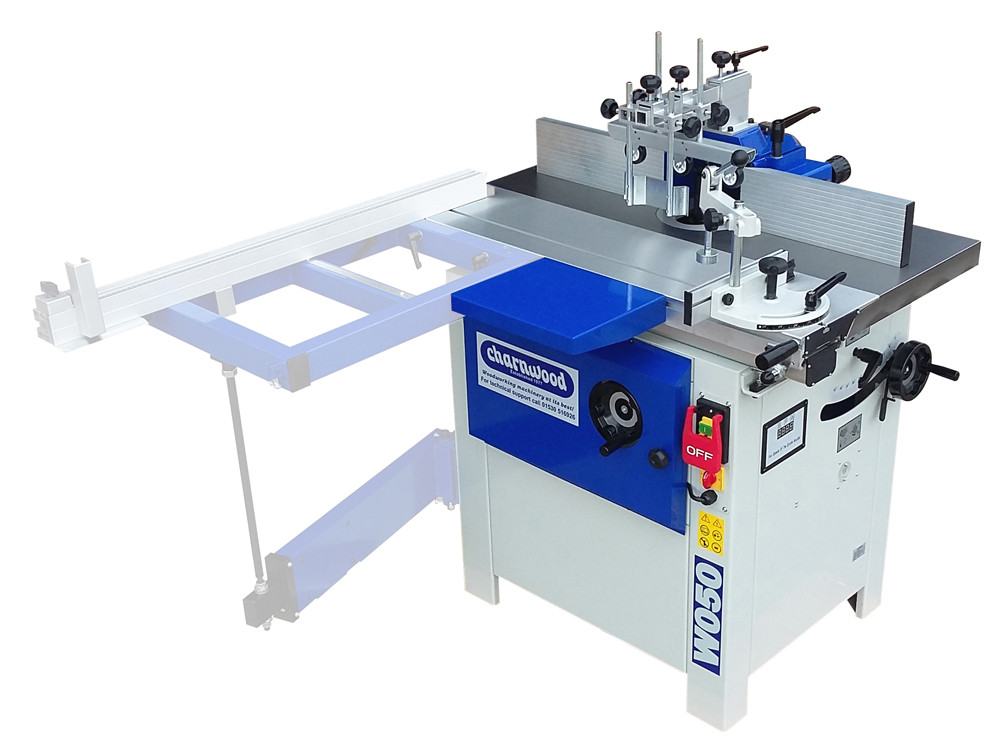

Charnwood W050 2800W Tilt Arbor Spindle Moulder

Features

• 2.8kW Induction Motor
• Four Speeds with Digital read-out
• Sliding Beam 48” Capacity
• Cast Iron Main Table
• 45° Backwards Tilting Spindle
• Independently Adjustable Fences
• Optional Outrigger with Squaring Arm
• Reversible Spindle Direction

Manufacturer's Overview

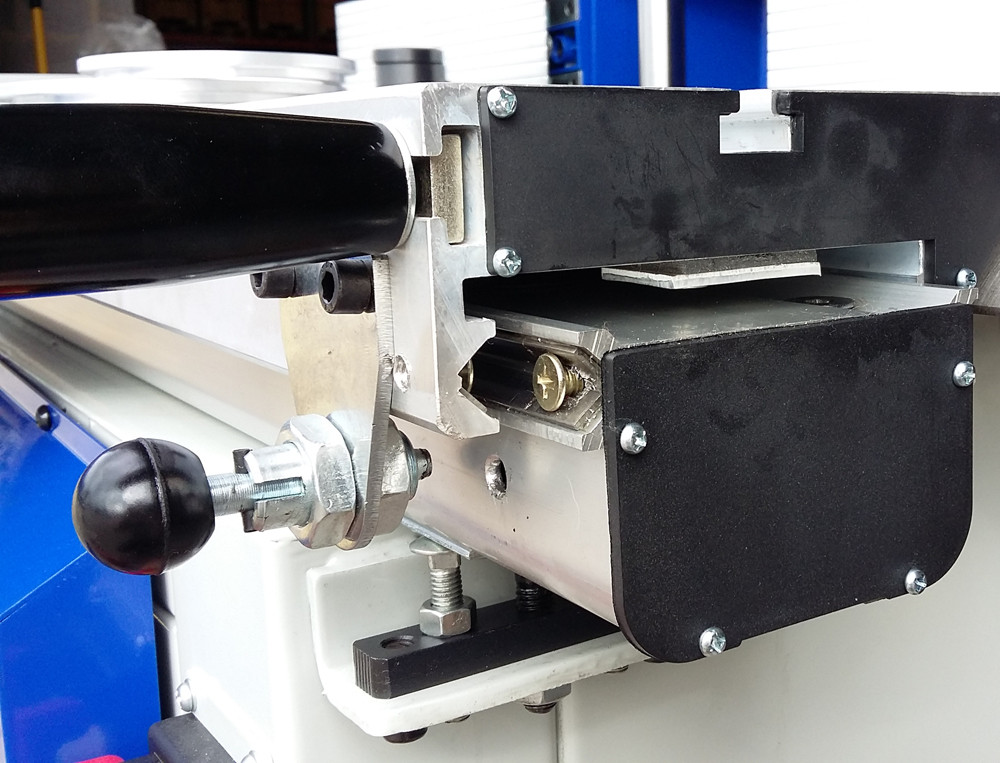

A large precision ground cast iron table forms the main table, with a sliding beam in front, which includes a mitre fence and work clamp as standard equipment. A mechanically braked motor offers ample power to use tooling up to 200mm in diameter with a choice of four speeds to allow a wide range of tooling to be used. A digital speed display informs the operator of the current setting. Further versatility is provided by the backwards tilt facility. The spindle hood is of cast alloy and is fitted with long, fully adjustable fences, a vertical hold down, front clamp and a 100mm dust outlet. A hinged lid allows for easy access when setting the tooling.

Inclusive

• Set of spindle spacers
• Table inserts (80mm, 110mm & 150mm)
• Cable and 16amp plug

Specification
