Charnwood 1" x 5" Belt & Disc Sander

A compact and well made combination disc & belt sander. Ideally suited to any small workshop and an excellent choice for model makers, toy makers, or anybody working with small components.

• 1″ Wide Belt Sander
• Tilting Work Table with Back Plate
• 2″ Diameter Drum for Curved Sanding
• 5″ Diameter Sanding Disc
• Tilting Work Table With Mitre Fence
• 2 Dust Collection Outlets

A great value mini sander with a solid look and feel.

There are 3 different sanding stations on the machine:

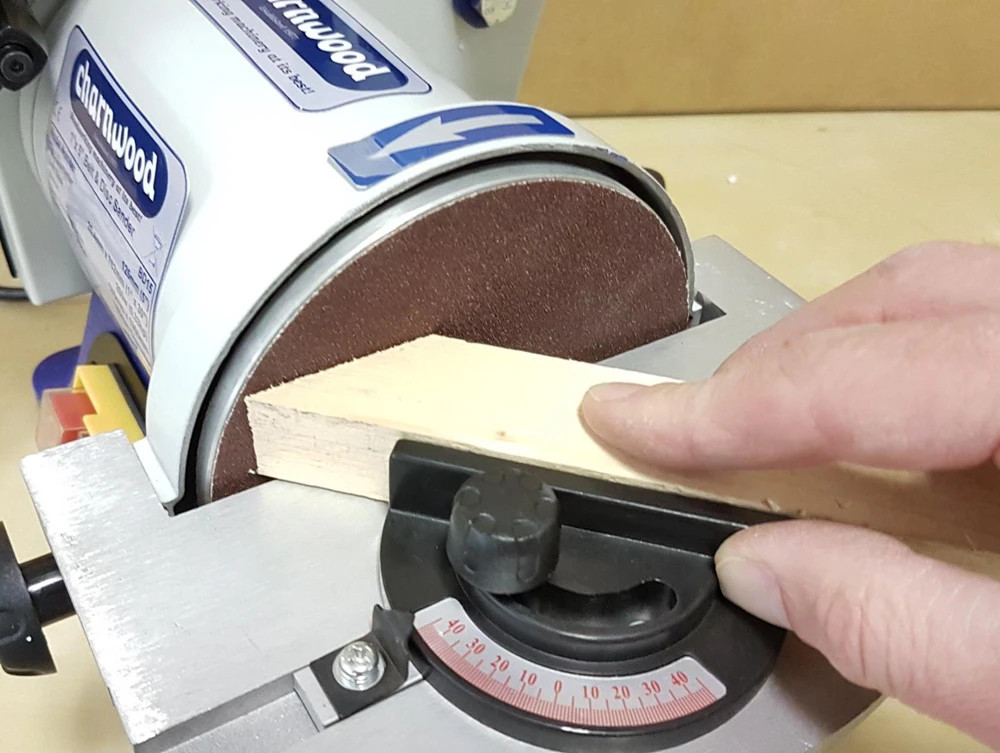

For sanding larger flat faces or end grain use the 5″ diameter sanding disc. It is complimented by a solid one piece cast aluminium work table, hinged at both ends to allow a tilting function of up to 45 degrees. The work table also has a slot to mount a mitre fence which can be adjusted up to 60 degrees each way. Allowing mitred and compound angles to be sanded. A dust extraction outlet is provided to connect to a suitable vacuum or extractor.

For edge sanding, profiling or sharpening tools, the belt sander is 25mm wide with a back plate to keep its shape. It has a solid one piece cast aluminium work table, hinged to allow tilting to 45 degrees. There is an adjustable stop provided to ensure it always goes back to 90 degrees.

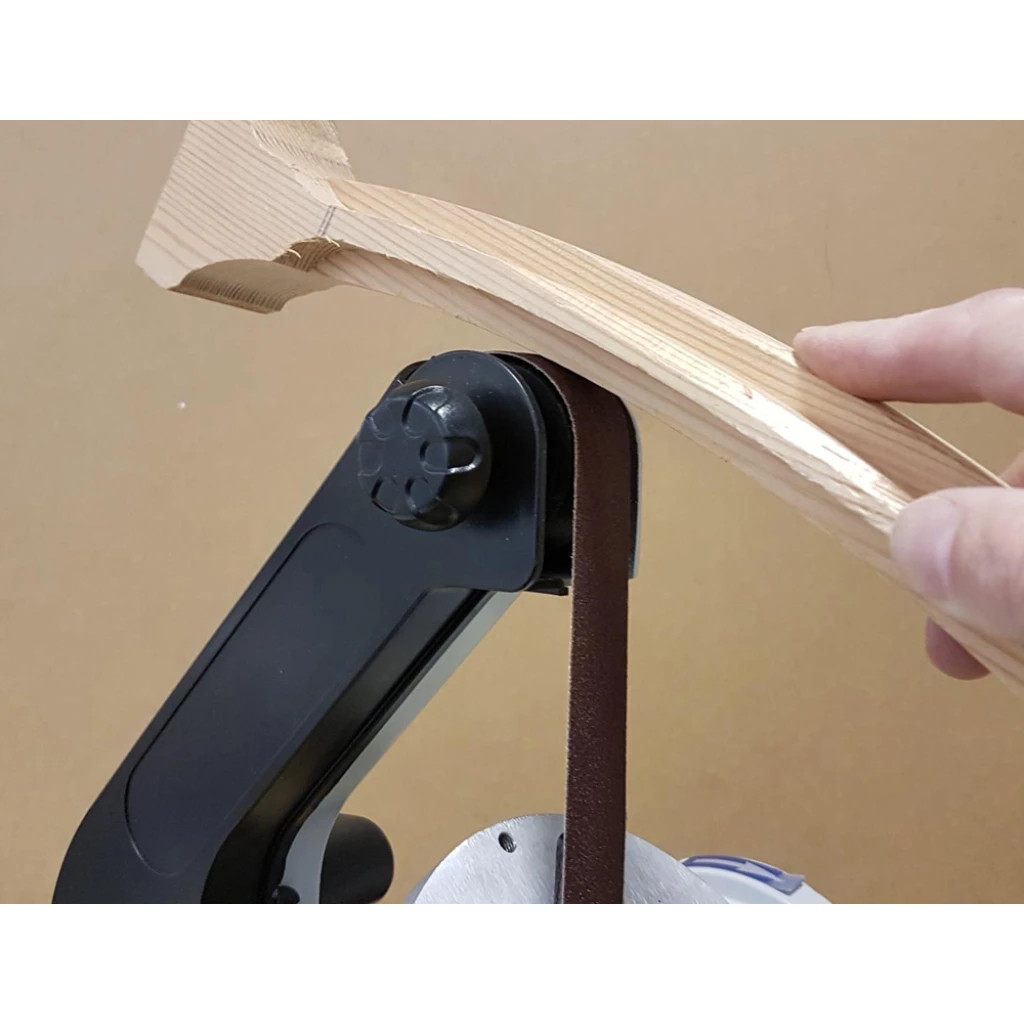

Removing the top roller safety guard gives access to the sanding belt drum which can be used for sanding curved shapes.

The sander sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 2 mounting points provided.

Supplied with mitre fence, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 2.0m power cable & UK 3 pin plug.

Charnwood BD15 Specification
